ATE Original 2 Pieces Brake Disk (24012301121) for Mazda
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0123-0112.1
(240123-01121)
- Outer Diameter [mm]: 258,0
- Inner Diameter [mm]: 135,8
- Brake Disc Thickness [mm]: 23,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 423112
Logistical information:
- Ean Code: 4006633327503
- Weight: 11.74kg
Specification of ATE 24.0123-0112.1 / 240123-01121 / 24012301121:
| OE Number | Reference info |
| MAZDA DF71-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA DF71-33-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2015-06 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-05 - 2014-11 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-05 - 2014-11 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2010-01 - 2015-06 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2015-06 | 63 | 86 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-06 - 2015-06 | 75 | 102 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-07 - 2015-06 | 76 | 103 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2010-12 | 50 | 68 | 1399 | Hatchback |
| MAZDA 2 (DE_, DH_) Construction Year to 201412 Fitting Position Front Axle | 2008-10 - 2015-06 | 66 | 90 | 1560 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-06 - 2015-06 | 70 | 95 | 1560 | Hatchback |
24.0123-0112.1

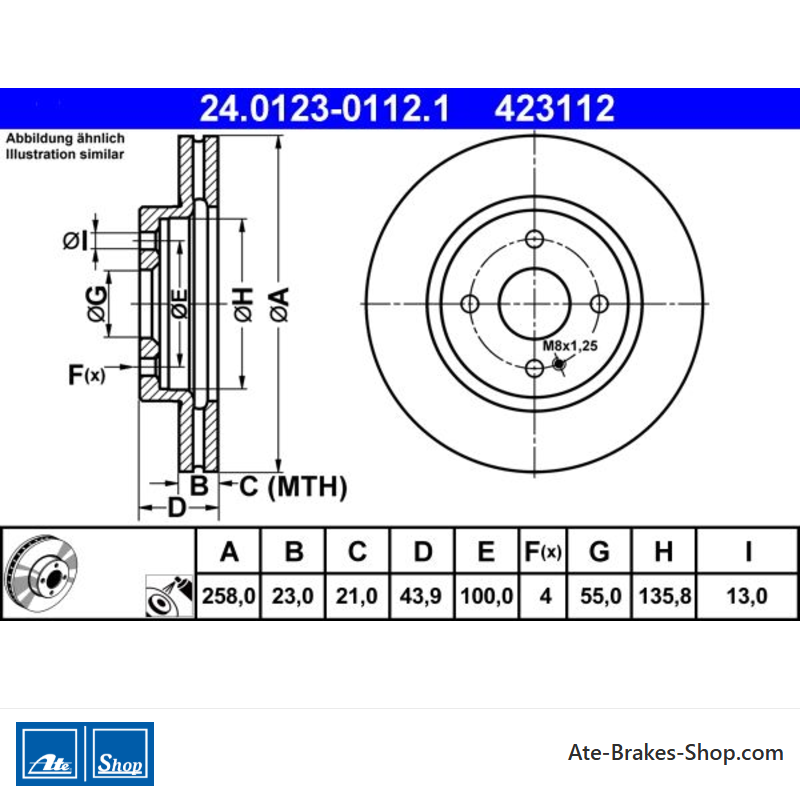

Data sheet
- Article Status
- Orderable
- Car Brand
- Mazda
- Trade Number
- 423112
- Country Of Origin
- Italy
- Height
- 43,9
- Outer Diameter [mm]
- 258,0
- Brake Disc Thickness [mm]
- 23,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 135,8
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 21,0
Specific References
- EAN13
- 4006633327503
- MPN
- 2401230112102
ATE 24.0123-0112.1
(240123-01121)
- Outer Diameter [mm]: 258,0
- Inner Diameter [mm]: 135,8
- Brake Disc Thickness [mm]: 23,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 423112
