ATE Originele 2-delige remschijf (24012301121) voor Mazda
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0123-0112.1
(240123-01121)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 135,8
- Remschijfdikte [mm]: 23,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 423112
Logistieke informatie:
- Ean Code: 4006633327503
- Gewicht: 11.74kg
Specification of ATE 24.0123-0112.1 / 240123-01121 / 24012301121:
| OE Number | Reference info |
| MAZDA DF71-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA DF71-33-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2015-06 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-05 - 2014-11 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-05 - 2014-11 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2010-01 - 2015-06 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2015-06 | 63 | 86 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-06 - 2015-06 | 75 | 102 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-07 - 2015-06 | 76 | 103 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2010-12 | 50 | 68 | 1399 | Hatchback |
| MAZDA 2 (DE_, DH_) Construction Year to 201412 Fitting Position Front Axle | 2008-10 - 2015-06 | 66 | 90 | 1560 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-06 - 2015-06 | 70 | 95 | 1560 | Hatchback |

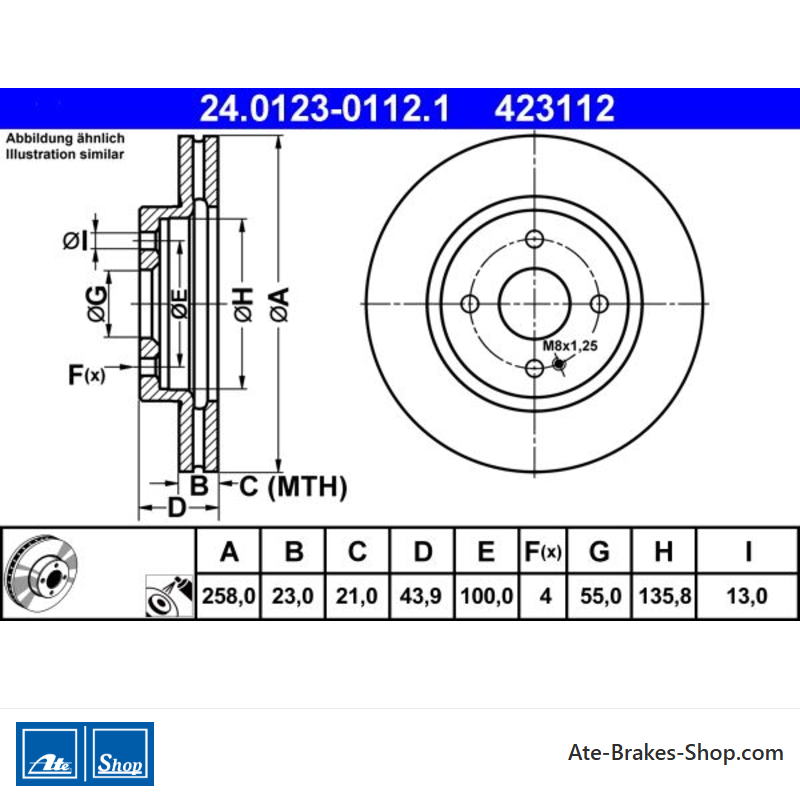

24.0123-0112.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mazda
- Handelsnummer
- 423112
- Land van Herkomst
- Italië
- Hoogte
- 43,9
- Buitendiameter [mm]
- 258,0
- Remschijfdikte [mm]
- 23,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 55,0
- Binnendiameter [mm]
- 135,8
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 21,0
Specifieke referenties
- ean13
- 4006633327503
- MPN
- 2401230112102
ATE 24.0123-0112.1
(240123-01121)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 135,8
- Remschijfdikte [mm]: 23,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 423112
