ATE Originale zweiteilige Bremsscheibe (24012301121) für Mazda
105,27 €
(inkl. MwSt.)
87,00 € Steuerexzl.
Teilenummer:
ATE 24.0123-0112.1
(240123-01121)
- Außendurchmesser [mm]: 258,0
- Innendurchmesser [mm]: 135,8
- Bremsscheibendicke [mm]: 23,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 423112
Logistische Informationen:
- Ean-Code: 4006633327503
- Gewicht: 11.74kg
Specification of ATE 24.0123-0112.1 / 240123-01121 / 24012301121:
| OE Number | Reference info |
| MAZDA DF71-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA DF71-33-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2015-06 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-05 - 2014-11 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-05 - 2014-11 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2010-01 - 2015-06 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2015-06 | 63 | 86 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-06 - 2015-06 | 75 | 102 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-07 - 2015-06 | 76 | 103 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2007-10 - 2010-12 | 50 | 68 | 1399 | Hatchback |
| MAZDA 2 (DE_, DH_) Construction Year to 201412 Fitting Position Front Axle | 2008-10 - 2015-06 | 66 | 90 | 1560 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Front Axle | 2011-06 - 2015-06 | 70 | 95 | 1560 | Hatchback |

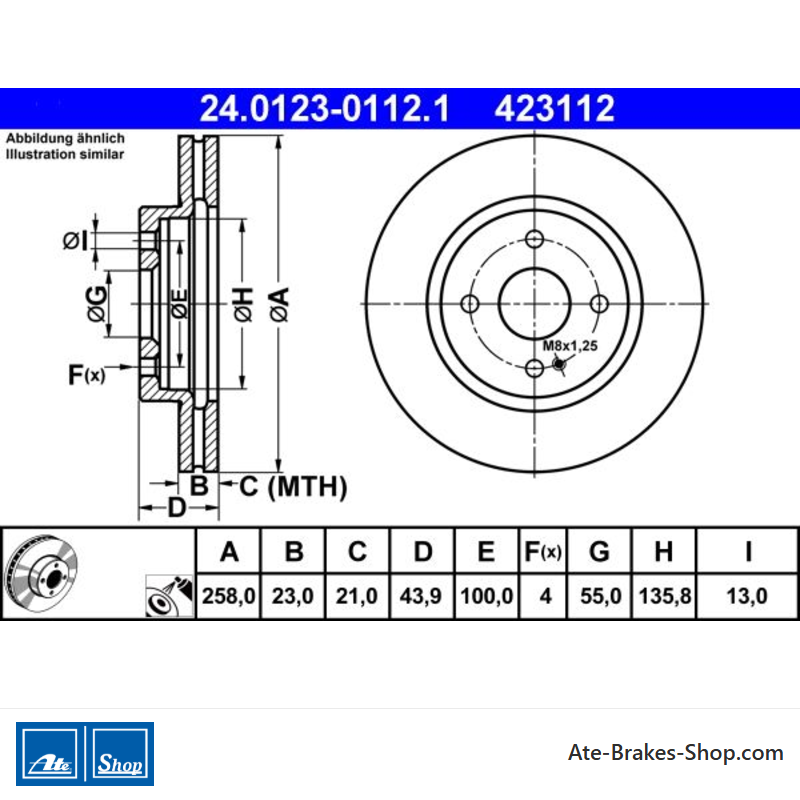

24.0123-0112.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mazda
- Handelsnummer
- 423112
- Herkunftsland
- Italien
- Höhe
- 43,9
- Außendurchmesser [mm]
- 258,0
- Bremsscheibendicke [mm]
- 23,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Kohlenstoffhoch
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 135,8
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 21,0
Spezifische Referenzen
- ean13
- 4006633327503
- Hersteller-Teilenummer (MPN)
- 2401230112102
ATE 24.0123-0112.1
(240123-01121)
- Außendurchmesser [mm]: 258,0
- Innendurchmesser [mm]: 135,8
- Bremsscheibendicke [mm]: 23,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 423112
