ATE Original 2 Pieces Brake Disk (24012601691) for Hyundai
€134.31
(tax incl.)
€111.00 tax excl.
Part-number:
ATE 24.0126-0169.1
(240126-01691)
- Outer Diameter [mm]: 274,0
- Inner Diameter [mm]: 132,0
- Brake Disc Thickness [mm]: 26,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 426169
Logistical information:
- Ean Code: 4006633375597
- Weight: 13.32kg
Specification of ATE 24.0126-0169.1 / 240126-01691 / 24012601691:
| OE Number | Reference info |
| HYUNDAI 58129-4A200 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year from 200307 Fitting Position Front Axle | 2001-06 - 2004-04 | 99 | 135 | 2351 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2003-02 - 2004-04 | 101 | 137 | 2351 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2001-03 - 2004-04 | 73 | 99 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2004-05 - 2007-12 | 74 | 101 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year from 200210 Fitting Position Front Axle | 2001-11 - 2004-04 | 74 | 101 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2006-06 - 2007-12 | 81 | 110 | 2497 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year from 200307 Fitting Position Front Axle | 2002-12 - 2007-09 | 103 | 140 | 2497 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2002-12 - 2004-04 | 103 | 140 | 2497 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year from 200307 Fitting Position Front Axle | 2002-12 - 2004-04 | 120 | 163 | 2497 | Bus |
| HYUNDAI H-1 Van (A1) Fitting Position Front Axle | 2001-07 - 2004-04 | 81 | 110 | 2497 | Van |
| HYUNDAI H-1 Van (A1) Construction Year to 200404 Fitting Position Front Axle | 2003-08 - 2007-12 | 103 | 140 | 2497 | Van |
| HYUNDAI H-1 Platform/Chassis Fitting Position Front Axle | 2002-12 - 2005-10 | 103 | 140 | 2497 | Platform/Chassis |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2009-01 - | 85 | 116 | 2497 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2009-08 - | 100 | 136 | 2497 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2008-02 - | 125 | 170 | 2497 | Van |
24.0126-0169.1

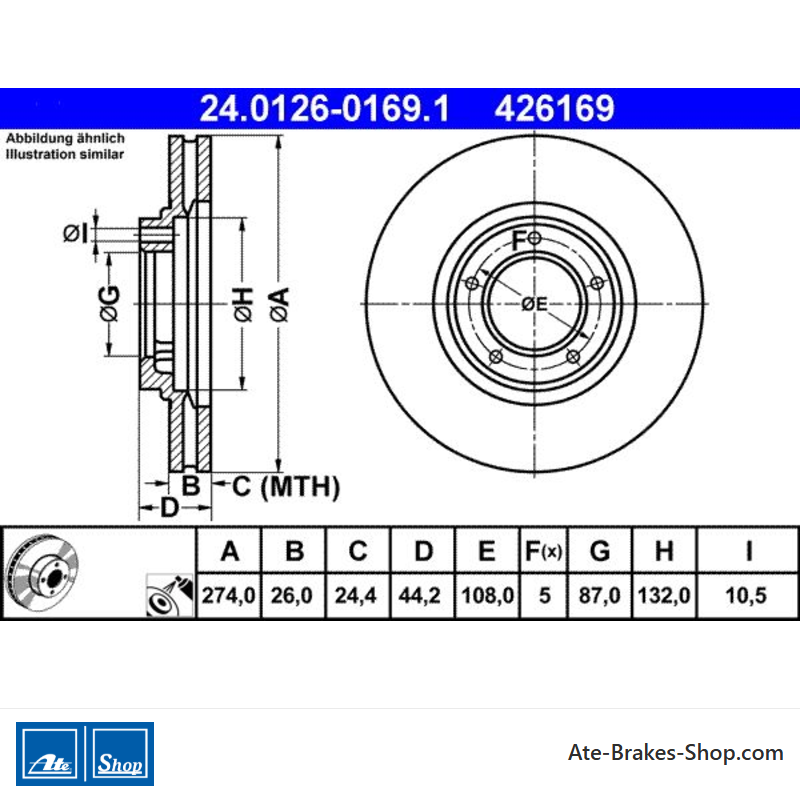

Data sheet
- Article Status
- Orderable
- Car Brand
- Hyundai
- Trade Number
- 426169
- Country Of Origin
- QU
- Height
- 44,2
- Outer Diameter [mm]
- 274,0
- Brake Disc Thickness [mm]
- 26,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 87,0
- Inner Diameter [mm]
- 132,0
- Bore Diameter [mm]
- 10,5
- Minimum Thickness [mm]
- 24,4
Specific References
- EAN13
- 4006633375597
- MPN
- 2401260169102
ATE 24.0126-0169.1
(240126-01691)
- Outer Diameter [mm]: 274,0
- Inner Diameter [mm]: 132,0
- Brake Disc Thickness [mm]: 26,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 426169
