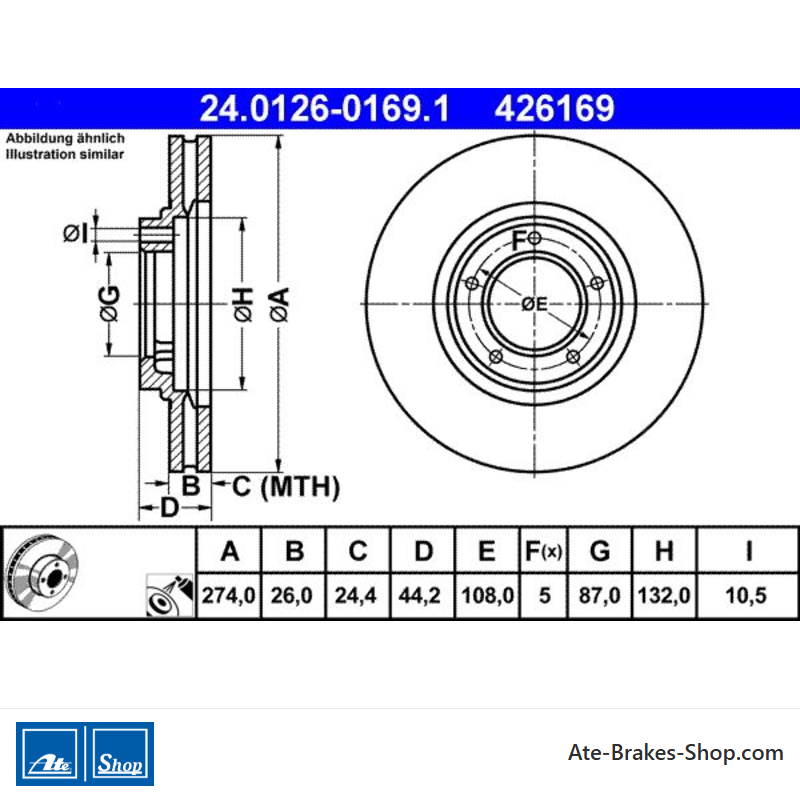

ATE Disco de freno original de 2 piezas (24012601691) para Hyundai
134,31 €
(impuestos inc.)
111,00 € fiscales excl.
Número de parte:
ATE 24.0126-0169.1
(240126-01691)
- Diámetro exterior [mm]: 274,0
- Diámetro interior [mm]: 132,0
- Grosor del disco de freno [mm]: 26,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 426169
Información logística:
- Código Ean: 4006633375597
- Peso: 13.32kg
Specification of ATE 24.0126-0169.1 / 240126-01691 / 24012601691:
| OE Number | Reference info |
| HYUNDAI 58129-4A200 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year from 200307 Fitting Position Front Axle | 2001-06 - 2004-04 | 99 | 135 | 2351 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2003-02 - 2004-04 | 101 | 137 | 2351 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2001-03 - 2004-04 | 73 | 99 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2004-05 - 2007-12 | 74 | 101 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year from 200210 Fitting Position Front Axle | 2001-11 - 2004-04 | 74 | 101 | 2476 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2006-06 - 2007-12 | 81 | 110 | 2497 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year from 200307 Fitting Position Front Axle | 2002-12 - 2007-09 | 103 | 140 | 2497 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Fitting Position Front Axle | 2002-12 - 2004-04 | 103 | 140 | 2497 | Bus |
| HYUNDAI H-1 / STAREX Bus (A1) Construction Year from 200307 Fitting Position Front Axle | 2002-12 - 2004-04 | 120 | 163 | 2497 | Bus |
| HYUNDAI H-1 Van (A1) Fitting Position Front Axle | 2001-07 - 2004-04 | 81 | 110 | 2497 | Van |
| HYUNDAI H-1 Van (A1) Construction Year to 200404 Fitting Position Front Axle | 2003-08 - 2007-12 | 103 | 140 | 2497 | Van |
| HYUNDAI H-1 Platform/Chassis Fitting Position Front Axle | 2002-12 - 2005-10 | 103 | 140 | 2497 | Platform/Chassis |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2009-01 - | 85 | 116 | 2497 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2009-08 - | 100 | 136 | 2497 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2008-02 - | 125 | 170 | 2497 | Van |
24.0126-0169.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Hyundai
- Número de Comercio
- 426169
- País de origen
- QU
- Altura
- 44,2
- Diámetro exterior [mm]
- 274,0
- Grosor del disco de freno [mm]
- 26,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 108,0
- Diámetro de centrado [mm]
- 87,0
- Diámetro interior [mm]
- 132,0
- Diámetro del diámetro del diámetro [mm]
- 10,5
- Espesor mínimo [mm]
- 24,4
Referencias específicas
- ean13
- 4006633375597
- MPN
- 2401260169102
ATE 24.0126-0169.1
(240126-01691)
- Diámetro exterior [mm]: 274,0
- Diámetro interior [mm]: 132,0
- Grosor del disco de freno [mm]: 26,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 426169
