ATE Originele 2-delige remschijf (24012601691) voor Hyundai
search
  • ATE Originele 2-delige remschijf (24012601691) voor Hyundai
  • ATE Originele 2-delige remschijf (24012601691) voor Hyundai
  • ATE Originele 2-delige remschijf (24012601691) voor Hyundai

ATE Originele 2-delige remschijf (24012601691) voor Hyundai

€ 134,31 (incl. btw)

€ 111,00 belastingexcl.

Onderdeelnummer:

ATE 24.0126-0169.1
(240126-01691)

  • Buitendiameter [mm]: 274,0
  • Binnendiameter [mm]: 132,0
  • Remschijfdikte [mm]: 26,0
  • Aantal bolt holes: 5
  • 2 stukken remschijf
  • Handelsnummer: 426169
Logistieke informatie:
87,0Klik hier voor gedetailleerde informatie.
  • Ean Code: 4006633375597
  • Gewicht: 13.32kg
Aantal

Specification of ATE 24.0126-0169.1 / 240126-01691 / 24012601691:

OE NumberReference info
HYUNDAI 58129-4A200Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
HYUNDAI H-1 / STAREX Bus (A1)

Construction Year from 200307

Fitting Position Front Axle		2001-06 - 2004-04991352351Bus
HYUNDAI H-1 / STAREX Bus (A1)

Fitting Position Front Axle		2003-02 - 2004-041011372351Bus
HYUNDAI H-1 / STAREX Bus (A1)

Fitting Position Front Axle		2001-03 - 2004-0473992476Bus
HYUNDAI H-1 / STAREX Bus (A1)

Fitting Position Front Axle		2004-05 - 2007-12741012476Bus
HYUNDAI H-1 / STAREX Bus (A1)

Construction Year from 200210

Fitting Position Front Axle		2001-11 - 2004-04741012476Bus
HYUNDAI H-1 / STAREX Bus (A1)

Fitting Position Front Axle		2006-06 - 2007-12811102497Bus
HYUNDAI H-1 / STAREX Bus (A1)

Construction Year from 200307

Fitting Position Front Axle		2002-12 - 2007-091031402497Bus
HYUNDAI H-1 / STAREX Bus (A1)

Fitting Position Front Axle		2002-12 - 2004-041031402497Bus
HYUNDAI H-1 / STAREX Bus (A1)

Construction Year from 200307

Fitting Position Front Axle		2002-12 - 2004-041201632497Bus
HYUNDAI H-1 Van (A1)

Fitting Position Front Axle		2001-07 - 2004-04811102497Van
HYUNDAI H-1 Van (A1)

Construction Year to 200404

Fitting Position Front Axle		2003-08 - 2007-121031402497Van
HYUNDAI H-1 Platform/Chassis

Fitting Position Front Axle		2002-12 - 2005-101031402497Platform/Chassis
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2009-01 -851162497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2009-08 -1001362497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2008-02 -1251702497Van

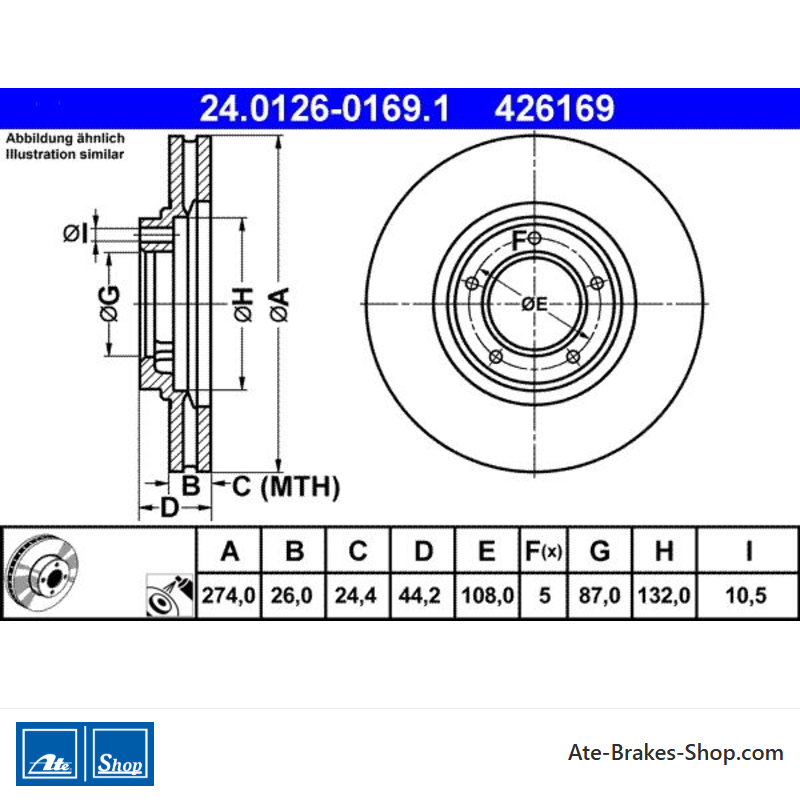

24.0126-0169.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Hyundai
Handelsnummer
426169
Land van Herkomst
QU
Hoogte
44,2
Buitendiameter [mm]
274,0
Remschijfdikte [mm]
26,0
Type remschijf
Geventileerd
Oppervlakte
Gecoate
Aantal boltgaten
5
Diameter van het schroefgat [mm]
108,0
Centreringsdiameter [mm]
87,0
Binnendiameter [mm]
132,0
Bordiameter [mm]
10,5
Minimale dikte [mm]
24,4

Specifieke referenties

ean13
4006633375597
MPN
2401260169102
