2 pieces of ATE original Brake Disk (24013002391) for Hyundai
€217.80
(tax incl.)
€180.00 tax excl.
Part-number:
ATE 24.0130-0239.1
(240130-02391)
- Outer Diameter [mm]: 300,0
- Inner Diameter [mm]: 163,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 6
- 2 pieces of Brake Disc
- Trade Number: 430239
Logistical information:
- Ean Code: 4006633408998
- Weight: 10.24kg
Specification of ATE 24.0130-0239.1 / 240130-02391 / 24013002391:
| OE Number | Reference info |
| HYUNDAI 51712-4H500 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 51712-4H000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-4H000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-4H500 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI H-1 Travel (TQ) Fitting Position Front Axle | 2008-02 - | 129 | 175 | 2359 | Bus |
| HYUNDAI H-1 Travel (TQ) Fitting Position Front Axle | 2010-07 - | 81 | 110 | 2497 | Bus |
| HYUNDAI H-1 Travel (TQ) Fitting Position Front Axle | 2011-08 - | 85 | 116 | 2497 | Bus |
| HYUNDAI H-1 Travel (TQ) Fitting Position Front Axle | 2008-07 - | 100 | 136 | 2497 | Bus |
| HYUNDAI H-1 Travel (TQ) Fitting Position Front Axle | 2008-05 - | 120 | 163 | 2497 | Bus |
| HYUNDAI H-1 Travel (TQ) Fitting Position Front Axle | 2008-05 - | 125 | 170 | 2497 | Bus |
| HYUNDAI H-1 Cargo (TQ) Construction Year from 201009 Fitting Position Front Axle | 2008-03 - | 129 | 175 | 2359 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2008-02 - | 81 | 110 | 2497 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2009-01 - | 85 | 116 | 2497 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2009-08 - | 100 | 136 | 2497 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2008-02 - | 120 | 163 | 2497 | Van |
| HYUNDAI H-1 Cargo (TQ) Fitting Position Front Axle | 2008-02 - | 125 | 170 | 2497 | Van |
24.0130-0239.1

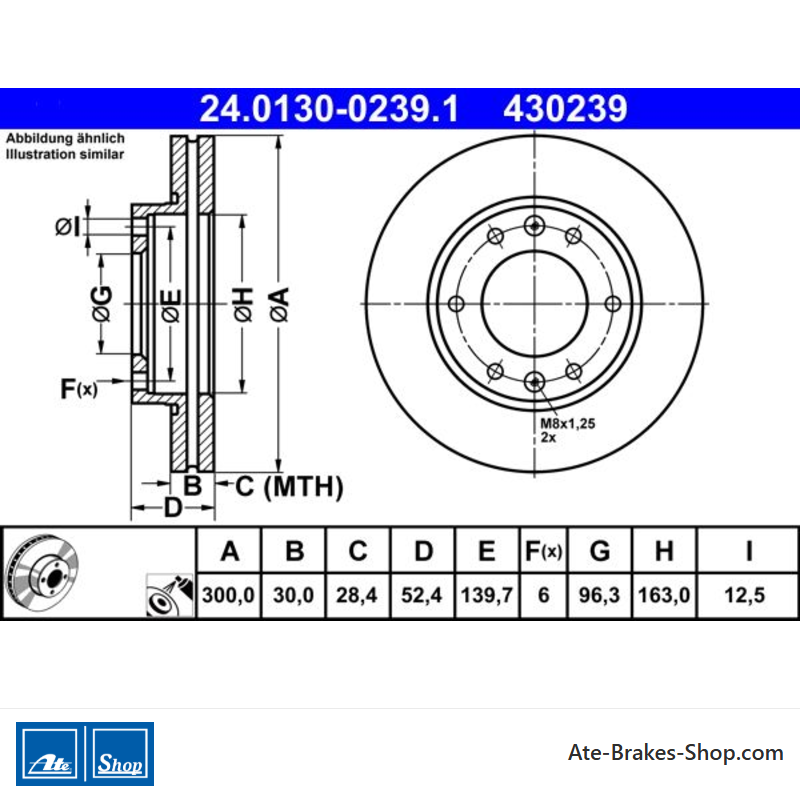

Data sheet
- Article Status
- Orderable
- Car Brand
- Hyundai
- Trade Number
- 430239
- Country Of Origin
- Germany
- Height
- 52,4
- Outer Diameter [mm]
- 300,0
- Brake Disc Thickness [mm]
- 30,0
- Brake Disc Type
- Vented
- Processing
- Alloyed/High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 6
- Bolt Hole Diameter [mm]
- 139,7
- Centering Diameter [mm]
- 96,3
- Inner Diameter [mm]
- 163,0
- Bore Diameter [mm]
- 12,5
- Minimum Thickness [mm]
- 28,4
Specific References
- EAN13
- 4006633408998
- MPN
- 2401300239102
ATE 24.0130-0239.1
(240130-02391)
- Outer Diameter [mm]: 300,0
- Inner Diameter [mm]: 163,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 6
- 2 pieces of Brake Disc
- Trade Number: 430239
