ATE Originale Bremsscheibe (24013002391) für Hyundai
search
  • ATE Originale Bremsscheibe (24013002391) für Hyundai
  • ATE Originale Bremsscheibe (24013002391) für Hyundai
  • ATE Originale Bremsscheibe (24013002391) für Hyundai

ATE Originale Bremsscheibe (24013002391) für Hyundai

217,80 € (inkl. MwSt.)

180,00 € Steuerexzl.

Teilenummer:

ATE 24.0130-0239.1
(240130-02391)

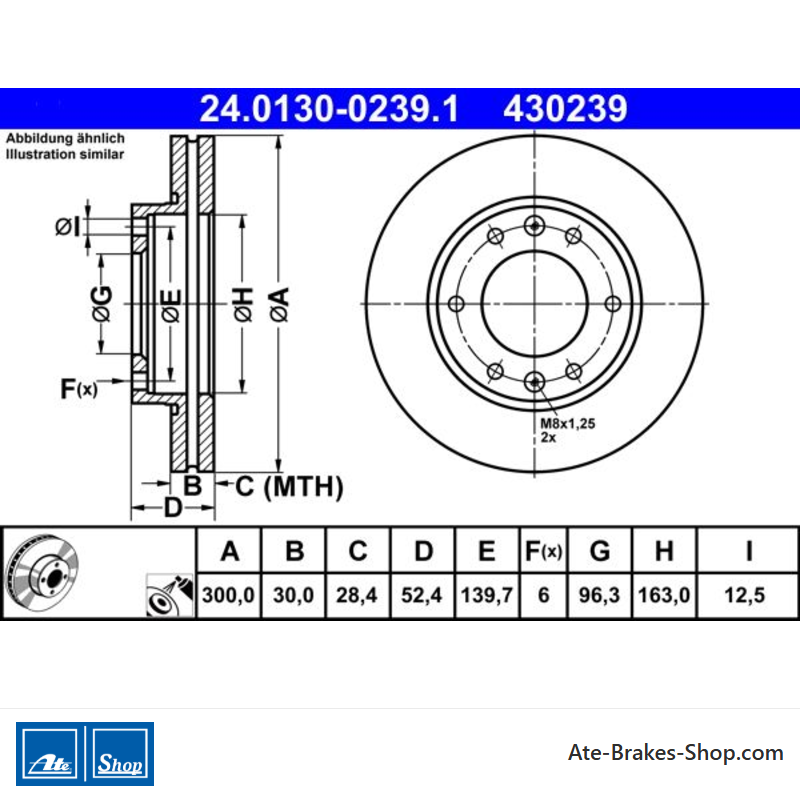

  • Außendurchmesser [mm]: 300,0
  • Innendurchmesser [mm]: 163,0
  • Bremsscheibendicke [mm]: 30,0
  • Anzahl der Bolzenlöcher: 6
  • Handelsnummer: 430239
Logistische Informationen:
96,3Klicken Sie hier für detaillierte Informationen.
  • Ean-Code: 4006633408998
  • Gewicht: 10.24kg
Menge

Specification of ATE 24.0130-0239.1 / 240130-02391 / 24013002391:

OE NumberReference info
HYUNDAI 51712-4H500Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
HYUNDAI 51712-4H000Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
KIA 51712-4H000Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
KIA 51712-4H500Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2008-02 -1291752359Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2010-07 -811102497Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2011-08 -851162497Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2008-07 -1001362497Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2008-05 -1201632497Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2008-05 -1251702497Bus
HYUNDAI H-1 Cargo (TQ)

Construction Year from 201009

Fitting Position Front Axle		2008-03 -1291752359Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2008-02 -811102497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2009-01 -851162497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2009-08 -1001362497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2008-02 -1201632497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2008-02 -1251702497Van
24.0130-0239.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Hyundai
Handelsnummer
430239
Herkunftsland
Deutschland
Höhe
52,4
Außendurchmesser [mm]
300,0
Bremsscheibendicke [mm]
30,0
Bremsscheibentyp
Entlüftet
Verarbeitung
Legierte/Hochkohlenstoff-Legierungen
Oberfläche
Coated
Anzahl der Schraublöcher
6
Bolzenlochdurchmesser [mm]
139,7
Zentrierungsdurchmesser [mm]
96,3
Innendurchmesser [mm]
163,0
Bohrdurchmesser [mm]
12,5
Mindestdicke [mm]
28,4

Spezifische Referenzen

ean13
4006633408998
Hersteller-Teilenummer (MPN)
2401300239102
