ATE Originele remschijf (24013002391) voor Hyundai

€ 217,80 (incl. btw)

€ 180,00 belastingexcl.

Onderdeelnummer:

ATE 24.0130-0239.1
(240130-02391)

  • Buitendiameter [mm]: 300,0
  • Binnendiameter [mm]: 163,0
  • Remschijfdikte [mm]: 30,0
  • Aantal bolt holes: 6
  • Handelsnummer: 430239
Logistieke informatie:
96,3Klik hier voor gedetailleerde informatie.
  • Ean Code: 4006633408998
  • Gewicht: 10.24kg
Aantal

Specification of ATE 24.0130-0239.1 / 240130-02391 / 24013002391:

OE NumberReference info
HYUNDAI 51712-4H500Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
HYUNDAI 51712-4H000Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
KIA 51712-4H000Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
KIA 51712-4H500Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2008-02 -1291752359Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2010-07 -811102497Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2011-08 -851162497Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2008-07 -1001362497Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2008-05 -1201632497Bus
HYUNDAI H-1 Travel (TQ)

Fitting Position Front Axle		2008-05 -1251702497Bus
HYUNDAI H-1 Cargo (TQ)

Construction Year from 201009

Fitting Position Front Axle		2008-03 -1291752359Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2008-02 -811102497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2009-01 -851162497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2009-08 -1001362497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2008-02 -1201632497Van
HYUNDAI H-1 Cargo (TQ)

Fitting Position Front Axle		2008-02 -1251702497Van

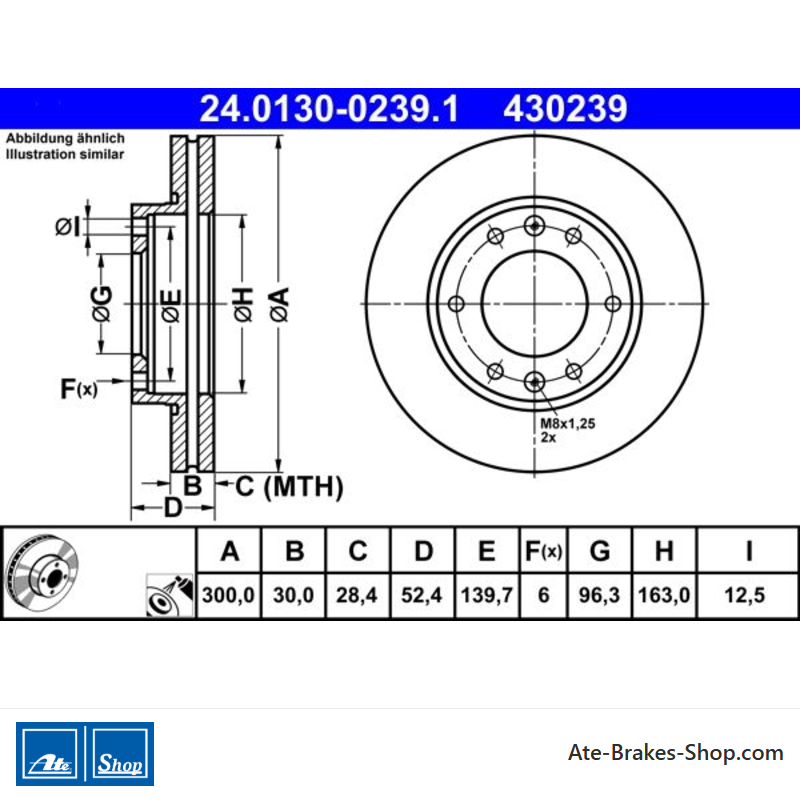

24.0130-0239.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Hyundai
Handelsnummer
430239
Land van Herkomst
Duitsland
Hoogte
52,4
Buitendiameter [mm]
300,0
Remschijfdikte [mm]
30,0
Type remschijf
Geventileerd
Verwerking
Gelegeerd/Hoog-koolstof
Oppervlakte
Gecoate
Aantal boltgaten
6
Diameter van het schroefgat [mm]
139,7
Centreringsdiameter [mm]
96,3
Binnendiameter [mm]
163,0
Bordiameter [mm]
12,5
Minimale dikte [mm]
28,4

Specifieke referenties

ean13
4006633408998
MPN
2401300239102
