ATE Original Brake Disk (24042301301) for Cupra, Volkswagen (VW)
€68.97
(tax incl.)
€57.00 tax excl.
Part-number:
ATE 24.0423-0130.1
(240423-01301)
- Outer Diameter [mm]: 330,0
- Inner Diameter [mm]: 165,5
- Brake Disc Thickness [mm]: 23,0
- Number of Bolt Holes: 5
- Trade Number: ED23130
Logistical information:
- Ean Code: 4006633506984
- Weight: 8.96kg
Specification of ATE 24.0423-0130.1 / 240423-01301 / 24042301301:
| OE Number | Reference info |
| VAG 1EA 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1EA615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2021-08 - | 110 | 150 | CC | Hatchback |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2021-08 - | 150 | 204 | CC | Hatchback |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2021-08 - 2024-05 | 170 | 231 | CC | Hatchback |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2021-08 - | 170 | 231 | CC | Hatchback |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 240 | 326 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2021-11 - 2023-05 | 93 | 126 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2020-11 - | 107 | 145 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2020-03 - 2023-05 | 110 | 150 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 125 | 170 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2019-11 - | 150 | 204 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2021-11 - | 150 | 204 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 170 | 231 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2021-11 - | 150 | 204 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 170 | 231 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 210 | 286 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-08 - | 240 | 326 | CC | Hatchback |

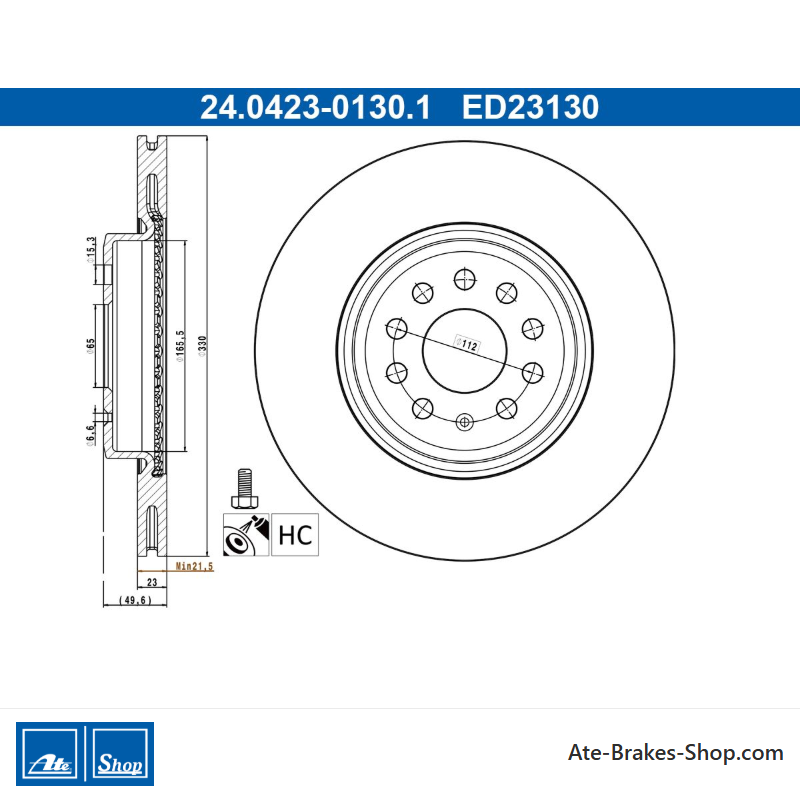

24.0423-0130.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Cupra
Volkswagen (VW) - Trade Number
- ED23130
- Country Of Origin
- China
- Additional Info
- with bolts/screws
- Height
- 49,6
- Outer Diameter [mm]
- 330,0
- Brake Disc Thickness [mm]
- 23,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 112,0
- Centering Diameter [mm]
- 65,0
- Inner Diameter [mm]
- 165,5
- Bore Diameter [mm]
- 15,3
- Minimum Thickness [mm]
- 21,5
Specific References
- EAN13
- 4006633506984
- MPN
- 2404230130102
ATE 24.0423-0130.1
(240423-01301)
- Outer Diameter [mm]: 330,0
- Inner Diameter [mm]: 165,5
- Brake Disc Thickness [mm]: 23,0
- Number of Bolt Holes: 5
- Trade Number: ED23130
