ATE Originele remschijf (24042301301) voor Cupra, Volkswagen (VW)
€ 68,97
(incl. btw)
€ 57,00 belastingexcl.
Onderdeelnummer:
ATE 24.0423-0130.1
(240423-01301)

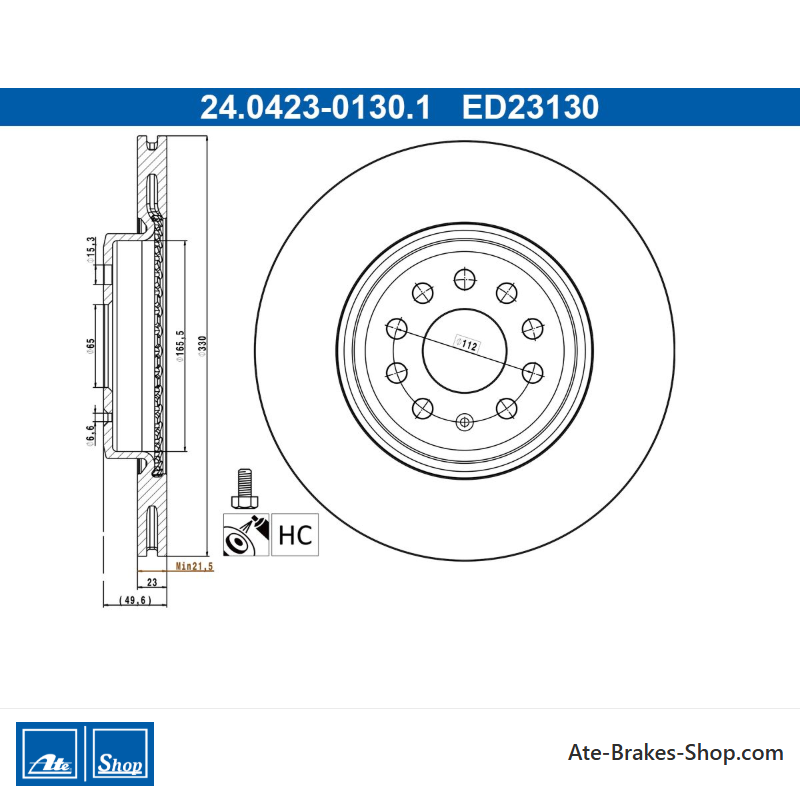

- Buitendiameter [mm]: 330,0
- Binnendiameter [mm]: 165,5
- Remschijfdikte [mm]: 23,0
- Aantal bolt holes: 5
- Handelsnummer: ED23130
Logistieke informatie:
- Ean Code: 4006633506984
- Gewicht: 8.96kg
Specification of ATE 24.0423-0130.1 / 240423-01301 / 24042301301:
| OE Number | Reference info |
| VAG 1EA 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1EA615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2021-08 - | 110 | 150 | CC | Hatchback |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2021-08 - | 150 | 204 | CC | Hatchback |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2021-08 - 2024-05 | 170 | 231 | CC | Hatchback |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2021-08 - | 170 | 231 | CC | Hatchback |
| CUPRA BORN (K11, K1G) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 240 | 326 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2021-11 - 2023-05 | 93 | 126 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2020-11 - | 107 | 145 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2020-03 - 2023-05 | 110 | 150 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 125 | 170 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2019-11 - | 150 | 204 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2021-11 - | 150 | 204 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 170 | 231 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2021-11 - | 150 | 204 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 170 | 231 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-06 - | 210 | 286 | CC | Hatchback |
| VW ID.3 (E11, E12, E13) Fitting Position Front Axle for PR number 1LA | 2024-08 - | 240 | 326 | CC | Hatchback |
24.0423-0130.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Cupra
Volkswagen (VW) - Handelsnummer
- ED23130
- Land van Herkomst
- China
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 49,6
- Buitendiameter [mm]
- 330,0
- Remschijfdikte [mm]
- 23,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 65,0
- Binnendiameter [mm]
- 165,5
- Bordiameter [mm]
- 15,3
- Minimale dikte [mm]
- 21,5
Specifieke referenties
- ean13
- 4006633506984
- MPN
- 2404230130102
ATE 24.0423-0130.1
(240423-01301)
- Buitendiameter [mm]: 330,0
- Binnendiameter [mm]: 165,5
- Remschijfdikte [mm]: 23,0
- Aantal bolt holes: 5
- Handelsnummer: ED23130
