ATE plaquettes de frein d’origine (13046072772) pour Peugeot
search
  • ATE plaquettes de frein d’origine (13046072772) pour Peugeot
  • ATE plaquettes de frein d’origine (13046072772) pour Peugeot
  • ATE plaquettes de frein d’origine (13046072772) pour Peugeot

ATE plaquettes de frein d’origine (13046072772) pour Peugeot

54,45 € TTC

45,00 € fiscalité ex.

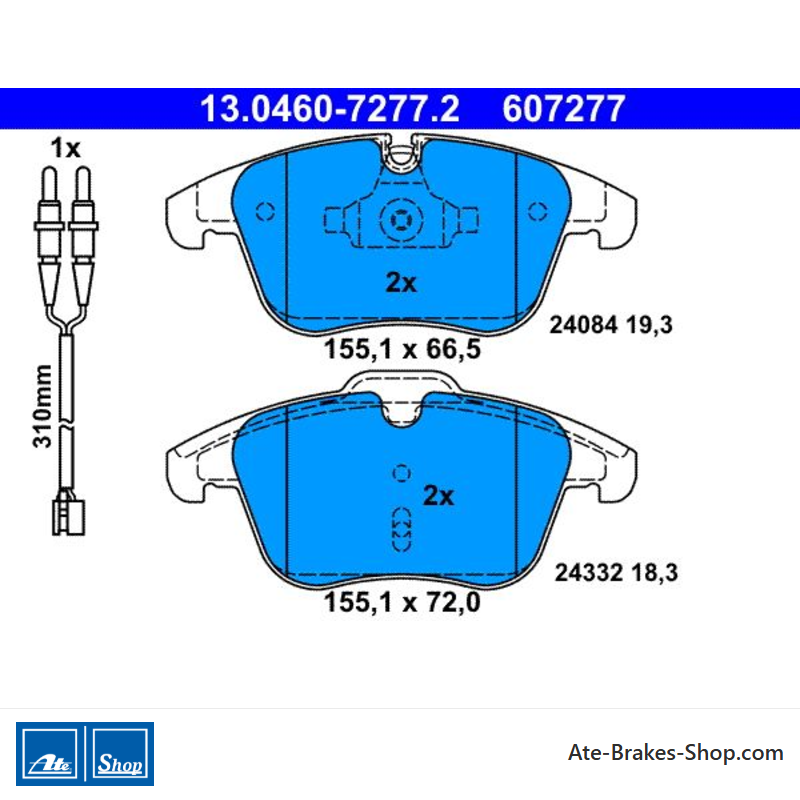

Numéro de pièce :

ATE 13.0460-7277.2
(130460-72772)

  • Largeur 1 [mm] : 155,1, Largeur 2 [mm] : 155,1
  • Hauteur 1 [mm] : 66,5, Hauteur 2 [mm] : 72,0
  • Épaisseur 1 [mm] : 19,3, Épaisseur 2 [mm] : 18,3
  • Contact d’avertissement de port : y compris contact d’avertissement de port
  • Système de freinage : ATE
  • Numéro de l’échange : 607277
  • Code Ean : 4006633382809
  • Poids : 2.23kg
Quantité

Specification of ATE 13.0460-7277.2 / 130460-72772 / 13046072772:

OE NumberReference info
PEUGEOT 4254 A7Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 4254A7Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 16 101 037 80Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 1610103780Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 4254 38Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 425438Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 16 478 633 80Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 1647863380Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12851161598Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12851161598Estate
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12881201598Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12881201598Estate
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121101501598Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121101501598Estate
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121151561598Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121151561598Estate
PEUGEOT 508 SW I (8E_)

for brake disc diameter [mm] 304 mm

for RPO number up to 12774

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2012-02 - 2018-121211651598Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2012-02 - 2018-121211651598Estate
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12821121560Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12821121560Estate
PEUGEOT 508 SW I (8E_)

for brake disc diameter [mm] 304 mm

for RPO number up to 12774

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2012-02 - 2018-12841151560Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2012-02 - 2018-12841151560Estate
PEUGEOT 508 SW I (8E_)

for brake disc diameter [mm] 304 mm

for RPO number up to 12774

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-09 - 2018-12851161560Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-09 - 2018-12851161560Estate
PEUGEOT 508 SW I (8E_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-03 - 2018-12881201560Estate
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121001361997Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121001361997Estate
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121031401997Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121031401997Estate
PEUGEOT 508 SW I (8E_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-04 - 2018-121101501997Estate
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121201631997Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121201631997Estate
PEUGEOT 508 SW I (8E_)

for brake disc diameter [mm] 304 mm

for RPO number up to 12774

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121472001997Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121472001997Estate
PEUGEOT 508 SW I (8E_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-04 - 2018-121331801997Estate
PEUGEOT 508 SW I (8E_)

Fitting Position Front Axle		2014-10 - 2018-121331811997Estate
PEUGEOT 508 SW I (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121502042179Estate
PEUGEOT 508 SW I (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121502042179Estate
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12851161598Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12881201598Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121101501598Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121151561598Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2012-01 - 2018-121201631598Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2011-09 - 2018-121211651598Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-12821121560Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2012-02 - 2018-12841151560Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-09 - 2018-12851161560Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-03 - 2018-12881201560Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121001361997Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121031401997Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-04 - 2018-121101501997Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121201631997Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2014-04 - 2018-121331801997Saloon
PEUGEOT 508 I (8D_)

Construction Year from 201206

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121472001997Saloon
PEUGEOT 508 I (8D_)

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2010-11 - 2018-121502042179Saloon
PEUGEOT 508 SW Estate Van (8E_)

for RPO number up to 12774

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2011-11 -1502042179Estate Van
PEUGEOT 508 SW Estate Van (8E_)

for RPO number from 12775

for brake disc diameter [mm] 304 mm

for brake disc thickness [mm] 28 mm

Fitting Position Front Axle		2011-11 -1502042179Estate Van
13.0460-7277.2

Fiche technique

Statut de l’article
Ordonnance
Marque automobile
Peugeot
Numéro de trade
607277
Système de freinage
ATE
Pays d’origine
Italie
Indicateur d’usure
Inclus
Électronique
Largeur
155,1
Hauteur
66,5
72,0
Épaisseur
18,3
19,3
Nombre d’indicateurs d’usure
1 par essieu
Longueur de l’indicateur d’avertissement
310 mm

Références spécifiques

EAN-13
4006633382809
MPN
1304607277202
