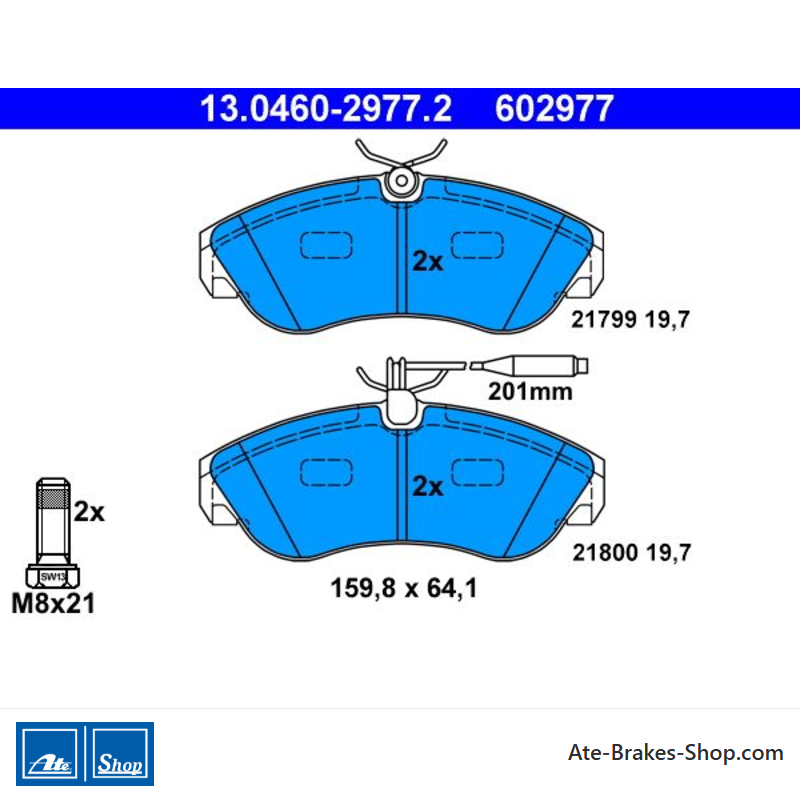

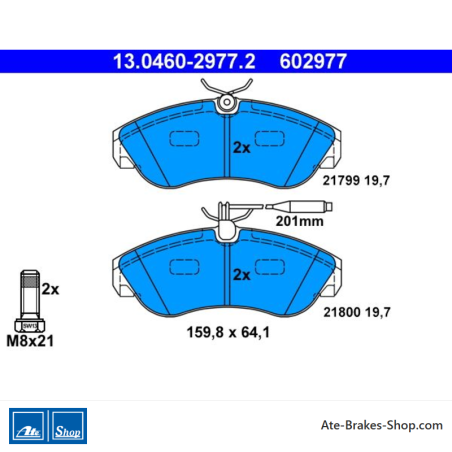

ATE plaquettes de frein d’origine (13046029772) pour Citroën, Fiat, Peugeot
54,45 €
TTC
45,00 € fiscalité ex.
Numéro de pièce :
ATE 13.0460-2977.2
(130460-29772)
- Largeur [mm] : 159,8
- Taille [mm] : 64,1
- Épaisseur [mm] : 19,7
- Contact d’avertissement de port : y compris contact d’avertissement de port
- Système de freinage : Lucas / TRW
- Numéro de trade : 602977
- Code Ean : 4006633141109
- Poids : 2.45kg
Specification of ATE 13.0460-2977.2 / 130460-29772 / 13046029772:
| OE Number | Reference info |
| CITROËN 4251 19 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 425119 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4254 52 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 425452 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9945810 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362209 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4251 18 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 425118 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4254 52 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 425452 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN JUMPER I Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1996-10 - 2002-01 | 80 | 109 | 1998 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 63 | 86 | 2446 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 76 | 103 | 2446 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1996-12 - 2000-11 | 79 | 107 | 2446 | Van |
| CITROËN JUMPER I Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-02 - 2002-04 | 80 | 109 | 1998 | Bus |
| CITROËN JUMPER I Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-08 - 2002-04 | 63 | 86 | 2446 | Bus |
| CITROËN JUMPER I Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-08 - 2002-04 | 76 | 103 | 2446 | Bus |
| CITROËN JUMPER I Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1996-12 - 2000-11 | 79 | 107 | 2446 | Bus |
| CITROËN JUMPER I Bus (230P) Vehicle Identification Number (VIN) to S 16205352 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Bus |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 63 | 86 | 2446 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 76 | 103 | 2446 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1996-12 - 2002-04 | 79 | 107 | 2446 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Vehicle Identification Number (VIN) to S 16205352 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (290_) Construction Year from 199402 Payload [kg] 1800 kg Fitting Position Front Axle | 1990-07 - 1994-03 | 55 | 75 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (290_) Construction Year from 199402 Payload [kg] 1800 kg Fitting Position Front Axle | 1990-07 - 1994-03 | 70 | 95 | 2500 | Platform/Chassis |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-11 - 2002-04 | 80 | 109 | 1998 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 62 | 84 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 62 | 84 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 80 | 109 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 85 | 116 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-05 - 2002-04 | 85 | 116 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-05 - 2001-09 | 90 | 122 | 2799 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-05 - 2002-04 | 64 | 87 | 2800 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-08 - 2002-04 | 64 | 87 | 2800 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1997-10 - 2002-04 | 90 | 122 | 2800 | Van |
| FIAT DUCATO Van (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-06 - 2002-04 | 90 | 122 | 2800 | Van |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 62 | 84 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Payload [kg] 1800 kg Fitting Position Front Axle | 1994-11 - 1998-04 | 85 | 116 | 2499 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Payload [kg] 1800 kg Fitting Position Front Axle | 1994-06 - 1998-08 | 80 | 109 | 2499 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Payload [kg] 1800 kg Fitting Position Front Axle | 1994-06 - 1998-04 | 85 | 116 | 2499 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 62 | 84 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 80 | 109 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-06 - 2002-04 | 85 | 116 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-05 - 2001-09 | 90 | 122 | 2799 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-02 - 2002-04 | 64 | 87 | 2800 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-12 - 2002-04 | 90 | 122 | 2800 | Platform/Chassis |
| FIAT DUCATO Bus (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-11 - 2001-11 | 80 | 109 | 1998 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-08 - 2002-04 | 62 | 84 | 2500 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-07 - 2002-04 | 80 | 109 | 2500 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 85 | 116 | 2499 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1998-02 - 2002-04 | 64 | 87 | 2800 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1997-10 - 2002-04 | 90 | 122 | 2800 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-07 - 2002-04 | 90 | 122 | 2800 | Bus |
| PEUGEOT BOXER Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-06 - 2002-04 | 80 | 109 | 1998 | Van |
| PEUGEOT BOXER Van (230L) Payload [kg] 1800 kg Fitting Position Front Axle | 1996-03 - 1998-09 | 80 | 109 | 1998 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 63 | 86 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-07 - 2002-04 | 63 | 86 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-03 | 76 | 103 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1997-01 - 2002-04 | 79 | 107 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-07 - 2002-04 | 79 | 107 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Vehicle Identification Number (VIN) to S 16205352 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Van |
| PEUGEOT BOXER Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1996-08 - 2002-04 | 80 | 109 | 1998 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-08 - 2002-04 | 63 | 86 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1996-07 - 2002-04 | 63 | 86 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year from 199408 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-07 - 1997-12 | 76 | 103 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1996-07 - 2002-04 | 76 | 103 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1997-01 - 2002-04 | 79 | 107 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1997-01 - 2002-04 | 79 | 107 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Vehicle Identification Number (VIN) to S 16205352 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Bus |
| PEUGEOT BOXER Bus (230P) Vehicle Identification Number (VIN) to S 16205352 Payload [kg] 1800 kg Fitting Position Front Axle | 2000-10 - 2001-11 | 93 | 126 | 2798 | Bus |
| PEUGEOT BOXER Bus (230P) Vehicle Identification Number (VIN) to S 16205352 Payload [kg] 1800 kg Fitting Position Front Axle | 2000-10 - 2002-04 | 94 | 128 | 2798 | Bus |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-06 - 2002-04 | 80 | 109 | 1998 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 2002-04 | 63 | 86 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-07 - 2002-04 | 63 | 86 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Payload [kg] 1800 kg Fitting Position Front Axle | 1994-03 - 1997-12 | 76 | 103 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1997-01 - 2002-04 | 79 | 107 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 199912 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-07 - 2002-04 | 79 | 107 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Vehicle Identification Number (VIN) to S 16205352 Payload [kg] 1800 kg Fitting Position Front Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Vehicle Identification Number (VIN) to S 16205352 Payload [kg] 1800 kg Fitting Position Front Axle | 2000-10 - 2001-11 | 93 | 126 | 2798 | Platform/Chassis |
13.0460-2977.2
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Citroën
Fiat
Peugeot - Numéro de trade
- 602977
- Système de freinage
- Lucas / TRW
- Pays d’origine
- Tchéquie
- Indicateur d’usure
- Inclus
Électronique - Informations supplémentaires
- avec vis d’étrier de frein
- Largeur
- 159,8
- Hauteur
- 64,1
- Épaisseur
- 19,7
- Nombre de boulons/vis
- 2
- Longueur de l’indicateur d’avertissement
- 201 mm
Références spécifiques
- EAN-13
- 4006633141109
- MPN
- 1304602977201
ATE 13.0460-2977.2
(130460-29772)
- Largeur [mm] : 159,8
- Taille [mm] : 64,1
- Épaisseur [mm] : 19,7
- Contact d’avertissement de port : y compris contact d’avertissement de port
- Système de freinage : Lucas / TRW
- Numéro de trade : 602977
