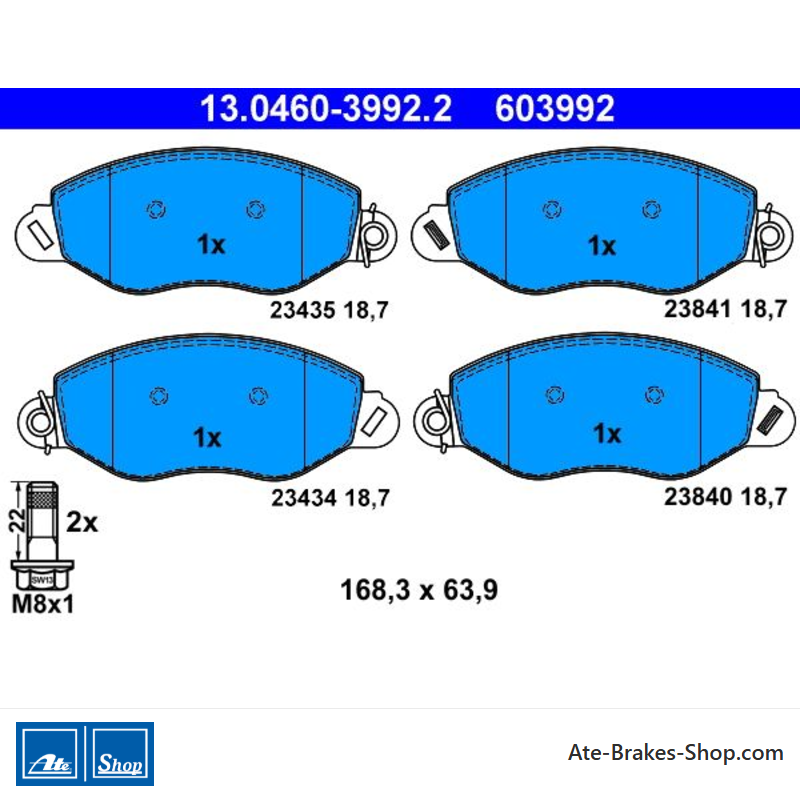

ATE plaquettes de frein d’origine (13046039922) pour Ford
43,56 €
TTC
36,00 € fiscalité ex.
Numéro de pièce :
ATE 13.0460-3992.2
(130460-39922)
- Largeur [mm] : 168,3
- Taille [mm] : 63,9
- Épaisseur [mm] : 18,7
- Contact d’avertissement d’usure : avec avertissement acoustique
- Système de freinage : Bosch
- Numéro d’échange : 603992
- Code Ean : 4006633103329
- Poids : 2.53kg
Specification of ATE 13.0460-3992.2 / 130460-39922 / 13046039922:
| OE Number | Reference info |
| FORD 4095132 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4114749 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1144288 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1318147 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1465168 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2001-03 - 2006-03 | 105 | 143 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2003-08 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-06 - 2003-08 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2000-06 - 2005-03 | 74 | 101 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2002-03 - 2006-03 | 92 | 125 | 1998 | Bus |
13.0460-3992.2
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
- Numéro de trade
- 603992
- Système de freinage
- Bosch
- Pays d’origine
- EU
- Indicateur d’usure
- Acoustique
- Informations supplémentaires
- avec vis d’étrier de frein
- Largeur
- 168,3
- Hauteur
- 63,9
- Épaisseur
- 18,7
- Nombre de boulons/vis
- 2
Références spécifiques
- EAN-13
- 4006633103329
- MPN
- 1304603992202
ATE 13.0460-3992.2
(130460-39922)
- Largeur [mm] : 168,3
- Taille [mm] : 63,9
- Épaisseur [mm] : 18,7
- Contact d’avertissement d’usure : avec avertissement acoustique
- Système de freinage : Bosch
- Numéro d’échange : 603992
