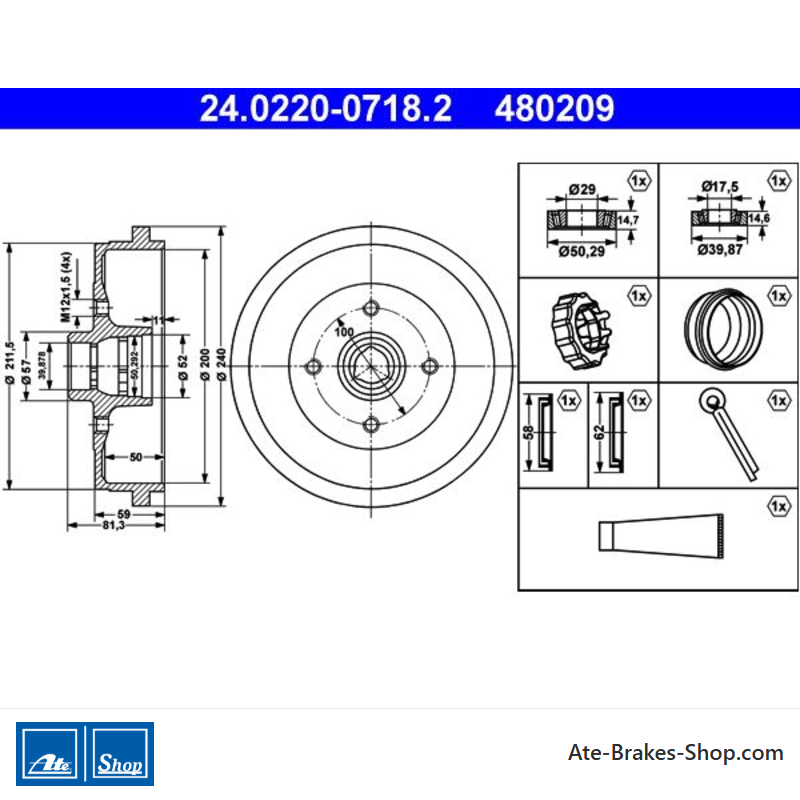

ATE Tambour de frein original en 2 parties (24022007182) pour Audi, Seat, Skoda, Volkswagen (VW)
116,16 €
TTC
96,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0220-0718.2
(240220-07182)
- Diamètre extérieur [mm] : 240,0
- Diamètre intérieur [mm] : 200,0
- Diamètre de la plaque de support [mm] : 50,3
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro d’échange : 480209
- Code Ean : 4006633307178
- Poids : 11.44kg
Specification of ATE 24.0220-0718.2 / 240220-07182 / 24022007182:
| OE Number | Reference info |
| SEAT 191 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 191501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 1H0 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 1H0501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 841 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 841501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 331 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 331501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 115 330 192 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 115330192 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 1H0 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 1H0501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6U0 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6U0501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6U0 501 615 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 6U0501615B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 841 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 841501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 191 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 191501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 331 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 331501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1H0 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1H0501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 323 501 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 323501615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6U0 501 615 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6U0501615B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 841 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 841501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 331 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 331501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 80 B1 Saloon (80, 82) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1972-05 - 1975-08 | 55 | 75 | 1471 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Construction Year to 197508 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1972-05 - 1976-07 | 63 | 85 | 1471 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Fitting Position Rear Axle Country Specific Design Australia Country Specific Design Sweden | 1975-09 - 1978-07 | 55 | 75 | 1588 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1975-09 - 1978-07 | 55 | 75 | 1588 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Fitting Position Rear Axle Country Specific Design Australia Country Specific Design Sweden | 1975-09 - 1978-07 | 63 | 85 | 1588 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1975-09 - 1978-07 | 63 | 85 | 1588 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Fitting Position Rear Axle | 1976-01 - 1978-07 | 81 | 110 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-09 - 1981-07 | 40 | 55 | 1272 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-09 - 1981-07 | 44 | 60 | 1272 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198108 Construction Year to 198407 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-09 - 1986-07 | 44 | 60 | 1297 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year to 198107 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-09 - 1986-07 | 44 | 60 | 1297 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 197809 Construction Year to 198107 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-08 - 1986-07 | 55 | 75 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198108 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-08 - 1983-02 | 63 | 85 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 197809 Construction Year to 198107 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-08 - 1983-02 | 63 | 85 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198108 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-08 - 1982-07 | 81 | 110 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 197809 Construction Year to 198107 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-08 - 1982-07 | 81 | 110 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Fitting Position Rear Axle | 1986-02 - 1986-07 | 54 | 73 | 1595 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 197809 Construction Year to 198107 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-08 - 1987-03 | 55 | 75 | 1595 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198406 Fitting Position Rear Axle | 1978-08 - 1987-03 | 55 | 75 | 1595 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198108 Construction Year to 198407 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1978-08 - 1987-03 | 55 | 75 | 1595 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Fitting Position Rear Axle | 1986-02 - 1986-07 | 65 | 88 | 1781 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year to 198407 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1983-01 - 1986-08 | 66 | 90 | 1781 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198406 Fitting Position Rear Axle | 1983-01 - 1986-08 | 66 | 90 | 1781 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Fitting Position Rear Axle | 1985-08 - 1986-07 | 81 | 110 | 1781 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Fitting Position Rear Axle | 1984-10 - 1986-08 | 82 | 112 | 1781 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1981-09 - 1983-07 | 85 | 115 | 1921 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year to 198407 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1983-10 - 1984-09 | 85 | 115 | 1994 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year to 198107 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1980-08 - 1986-08 | 40 | 54 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198406 Fitting Position Rear Axle | 1980-08 - 1986-08 | 40 | 54 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198108 Construction Year to 198407 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1980-08 - 1986-08 | 40 | 54 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198202 Construction Year to 198407 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1981-08 - 1986-05 | 51 | 70 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year from 198406 Fitting Position Rear Axle | 1981-08 - 1986-05 | 51 | 70 | 1588 | Saloon |
| AUDI COUPE B2 (81, 855, 856) Construction Year from 198102 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1980-07 - 1981-08 | 55 | 75 | 1588 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) to 85-E-220000 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1981-08 - 1983-07 | 55 | 75 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) from 85-F-000001 Fitting Position Rear Axle | 1981-08 - 1983-07 | 55 | 75 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) to 85-E-220000 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1986-04 - 1988-10 | 65 | 88 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) from 85-F-000001 Construction Year to 198807 Fitting Position Rear Axle | 1986-04 - 1988-10 | 65 | 88 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) to 85-E-220000 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1982-09 - 1988-10 | 66 | 90 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) from 85-F-000001 Construction Year to 198807 Fitting Position Rear Axle | 1982-09 - 1988-10 | 66 | 90 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) to 85-E-220000 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1986-08 - 1987-10 | 79 | 107 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) from 85-F-000001 Fitting Position Rear Axle | 1986-08 - 1987-10 | 79 | 107 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) to 85-E-220000 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1986-08 - 1988-10 | 82 | 112 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Vehicle Identification Number (VIN) from 85-F-000001 Construction Year to 198807 Fitting Position Rear Axle | 1986-08 - 1988-10 | 82 | 112 | 1781 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Construction Year from 198010 Fitting Position Rear Axle | 1980-08 - 1983-07 | 85 | 115 | 1921 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Fitting Position Rear Axle | 1983-09 - 1986-07 | 85 | 115 | 1994 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Construction Year to 198607 Fitting Position Rear Axle | 1986-03 - 1988-04 | 83 | 113 | 1994 | Coupe |
| AUDI COUPE B2 (81, 855, 856) Construction Year to 198407 Fitting Position Rear Axle | 1982-09 - 1987-10 | 96 | 131 | 2144 | Coupe |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-12 - 1999-04 | 40 | 54 | 1390 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2002-10 | 44 | 60 | 1389 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-09 - 2002-10 | 74 | 101 | 1390 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1994-05 - 1999-06 | 55 | 75 | 1595 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199311 Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-02 - 2002-10 | 55 | 75 | 1598 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-07 - 2002-10 | 74 | 101 | 1595 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199311 Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1993-02 - 2002-09 | 66 | 90 | 1781 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1996-01 - 1996-08 | 47 | 64 | 1896 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1996-08 - 1999-06 | 47 | 64 | 1896 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199311 Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1993-02 - 1996-08 | 50 | 68 | 1896 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199311 Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1993-02 - 1996-08 | 55 | 75 | 1896 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1996-08 - 2002-10 | 66 | 90 | 1896 | Saloon |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-09 - 2002-12 | 44 | 60 | 1389 | Estate |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-02 - 2000-07 | 74 | 101 | 1390 | Estate |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1997-05 - 1999-06 | 55 | 75 | 1595 | Estate |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-05 - 1999-06 | 55 | 75 | 1595 | Estate |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-09 - 2002-12 | 55 | 75 | 1598 | Estate |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-290000 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-09 - 2002-12 | 74 | 101 | 1595 | Estate |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1996-09 - 1999-06 | 47 | 64 | 1896 | Estate |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-290000 Fitting Position Rear Axle | 1996-08 - 2002-12 | 66 | 90 | 1896 | Estate |
| SEAT IBIZA II (6K1) Construction Year to 199907 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-09 - 2002-02 | 37 | 50 | 999 | Hatchback |
| SEAT IBIZA II (6K1) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-03 - 1996-09 | 33 | 45 | 1043 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-03 - 1999-08 | 40 | 54 | 1272 | Hatchback |
| SEAT IBIZA II (6K1) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-12 - 1999-04 | 40 | 54 | 1390 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-09 - 2002-02 | 44 | 60 | 1389 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-06 - 2002-02 | 74 | 101 | 1390 | Hatchback |
| SEAT IBIZA II (6K1) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-09 - 1999-06 | 55 | 75 | 1595 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-04 - 2002-02 | 74 | 101 | 1595 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-03 - 2002-02 | 55 | 75 | 1598 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Fitting Position Rear Axle | 1993-03 - 1999-08 | 66 | 90 | 1781 | Hatchback |
| SEAT IBIZA II (6K1) Fitting Position Rear Axle | 1993-04 - 1999-06 | 47 | 64 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Fitting Position Rear Axle | 1996-08 - 1999-08 | 47 | 64 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Fitting Position Rear Axle | 1993-03 - 1996-08 | 55 | 75 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Fitting Position Rear Axle | 1996-08 - 2002-02 | 66 | 90 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Vehicle Identification Number (VIN) from 1L-ZD310001 Fitting Position Rear Axle | 1991-05 - 1993-12 | 52 | 71 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 Vehicle Identification Number (VIN) from 1L-ZD310001 Fitting Position Rear Axle | 1991-05 - 1999-03 | 54 | 73 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 Vehicle Identification Number (VIN) from 1L-ZD310001 Fitting Position Rear Axle | 1993-01 - 1999-03 | 55 | 75 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 Vehicle Identification Number (VIN) from 1L-ZD310001 Fitting Position Rear Axle | 1996-11 - 1999-03 | 74 | 101 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199109 Fitting Position Rear Axle | 1991-05 - 1996-12 | 65 | 88 | 1781 | Hatchback |
| SEAT TOLEDO I (1L2) Fitting Position Rear Axle | 1993-11 - 1996-12 | 66 | 90 | 1781 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 Fitting Position Rear Axle | 1995-12 - 1999-03 | 47 | 64 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199109 Construction Year to 199809 Fitting Position Rear Axle | 1991-05 - 1999-03 | 50 | 68 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199109 Construction Year to 199809 Fitting Position Rear Axle | 1991-05 - 1999-03 | 55 | 75 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 Fitting Position Rear Axle | 1995-08 - 1999-03 | 66 | 90 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 Fitting Position Rear Axle | 1996-11 - 1999-03 | 81 | 110 | 1896 | Hatchback |
| SKODA FAVORIT Forman (785) Construction Year from 199301 Fitting Position Rear Axle | 1991-09 - 1995-06 | 40 | 54 | 1289 | Estate |
| SKODA FAVORIT Forman (785) Construction Year from 199402 Fitting Position Rear Axle | 1991-09 - 1995-06 | 40 | 54 | 1289 | Estate |
| SKODA FAVORIT Forman (785) Construction Year from 199301 Fitting Position Rear Axle | 1991-12 - 1995-06 | 44 | 60 | 1289 | Estate |
| SKODA FAVORIT Forman (785) Construction Year from 199402 Fitting Position Rear Axle | 1991-12 - 1995-06 | 44 | 60 | 1289 | Estate |
| SKODA FAVORIT Forman (785) Construction Year from 199301 Fitting Position Rear Axle | 1991-08 - 1995-06 | 45 | 61 | 1289 | Estate |
| SKODA FAVORIT Forman (785) Construction Year from 199402 Fitting Position Rear Axle | 1991-08 - 1995-06 | 45 | 61 | 1289 | Estate |
| SKODA FAVORIT Forman (785) Fitting Position Rear Axle | 1994-01 - 1995-06 | 50 | 68 | 1289 | Estate |
| SKODA FAVORIT Forman (785) Construction Year from 199402 Fitting Position Rear Axle | 1994-01 - 1995-06 | 50 | 68 | 1289 | Estate |
| SKODA FAVORIT (781) Construction Year from 199301 Fitting Position Rear Axle | 1990-01 - 1994-09 | 40 | 54 | 1289 | Hatchback |
| SKODA FAVORIT (781) Construction Year from 199301 Fitting Position Rear Axle | 1991-12 - 1994-09 | 42 | 57 | 1289 | Hatchback |
| SKODA FAVORIT (781) Construction Year from 199301 Fitting Position Rear Axle | 1989-05 - 1994-09 | 43 | 58 | 1289 | Hatchback |
| SKODA FAVORIT (781) Construction Year from 199301 Fitting Position Rear Axle | 1991-12 - 1994-09 | 43 | 58 | 1289 | Hatchback |
| SKODA FAVORIT (781) Construction Year from 199301 Fitting Position Rear Axle | 1990-10 - 1994-09 | 44 | 60 | 1289 | Hatchback |
| SKODA FAVORIT (781) Construction Year from 199301 Fitting Position Rear Axle | 1990-10 - 1994-09 | 45 | 61 | 1289 | Hatchback |
| SKODA FAVORIT (781) Fitting Position Rear Axle | 1994-01 - 1994-09 | 50 | 68 | 1289 | Hatchback |
| SKODA FAVORIT Pickup (787) Construction Year to 199512 Fitting Position Rear Axle | 1992-12 - 1997-06 | 40 | 54 | 1289 | Pickup |
| SKODA FAVORIT Pickup (787) Construction Year to 199512 Fitting Position Rear Axle | 1992-12 - 1997-06 | 42 | 57 | 1289 | Pickup |
| SKODA FAVORIT Pickup (787) Construction Year to 199512 Fitting Position Rear Axle | 1992-12 - 1997-06 | 50 | 68 | 1289 | Pickup |
| SKODA FELICIA I (6U1) Construction Year to 199802 Fitting Position Rear Axle | 1994-10 - 1998-03 | 40 | 54 | 1289 | Hatchback |
| SKODA FELICIA I (6U1) Construction Year to 199802 Fitting Position Rear Axle | 1994-10 - 1998-03 | 43 | 58 | 1289 | Hatchback |
| SKODA FELICIA I (6U1) Construction Year to 199802 Fitting Position Rear Axle | 1994-10 - 1998-03 | 50 | 68 | 1289 | Hatchback |
| SKODA FELICIA I (6U1) Construction Year to 199802 Fitting Position Rear Axle | 1995-08 - 1998-03 | 55 | 75 | 1598 | Hatchback |
| SKODA FELICIA I (6U1) Construction Year from 199610 Construction Year to 199802 Fitting Position Rear Axle | 1995-10 - 1998-03 | 47 | 64 | 1896 | Hatchback |
| SKODA FELICIA I Estate (6U5) Construction Year to 199802 Fitting Position Rear Axle | 1995-08 - 1998-03 | 40 | 54 | 1289 | Estate |
| SKODA FELICIA I Estate (6U5) Construction Year to 199802 Fitting Position Rear Axle | 1995-08 - 1998-03 | 43 | 58 | 1289 | Estate |
| SKODA FELICIA I Estate (6U5) Construction Year to 199802 Fitting Position Rear Axle | 1995-08 - 1998-03 | 50 | 68 | 1289 | Estate |
| SKODA FELICIA I Estate (6U5) Construction Year to 199802 Fitting Position Rear Axle | 1995-08 - 1998-03 | 55 | 75 | 1598 | Estate |
| SKODA FELICIA I Estate (6U5) Construction Year from 199610 Construction Year to 199802 Fitting Position Rear Axle | 1995-10 - 1998-03 | 47 | 64 | 1896 | Estate |
| SKODA FELICIA II Estate (6U5) Construction Year from 199803 Fitting Position Rear Axle | 1996-08 - 2001-06 | 50 | 68 | 1289 | Estate |
| SKODA FELICIA II Estate (6U5) Construction Year from 199803 Fitting Position Rear Axle | 1998-01 - 2001-06 | 55 | 75 | 1598 | Estate |
| SKODA FELICIA II Estate (6U5) Construction Year from 199803 Fitting Position Rear Axle | 1998-01 - 2001-06 | 47 | 64 | 1896 | Estate |
| SKODA FELICIA I Pickup (6UF, 6U7) Construction Year to 200012 Fitting Position Rear Axle | 1997-06 - 2002-04 | 40 | 54 | 1289 | Pickup |
| SKODA FELICIA I Pickup (6UF, 6U7) Construction Year to 200012 Fitting Position Rear Axle | 1997-06 - 2002-04 | 50 | 68 | 1289 | Pickup |
| SKODA FELICIA I Pickup (6UF, 6U7) Construction Year to 199912 Fitting Position Rear Axle | 1997-06 - 2002-04 | 55 | 75 | 1598 | Pickup |
| SKODA FELICIA I Pickup (6UF, 6U7) Construction Year to 200012 Fitting Position Rear Axle | 1997-06 - 2002-04 | 47 | 64 | 1896 | Pickup |
| SKODA FELICIA II (6U1) Construction Year from 199803 Fitting Position Rear Axle | 1998-01 - 2001-06 | 40 | 54 | 1289 | Hatchback |
| SKODA FELICIA II (6U1) Construction Year from 199803 Fitting Position Rear Axle | 1998-01 - 2001-06 | 43 | 58 | 1289 | Hatchback |
| SKODA FELICIA II (6U1) Construction Year from 199803 Fitting Position Rear Axle | 1998-01 - 2001-06 | 50 | 68 | 1289 | Hatchback |
| SKODA FELICIA II (6U1) Construction Year from 199803 Fitting Position Rear Axle | 1998-01 - 2001-06 | 55 | 75 | 1598 | Hatchback |
| SKODA FELICIA II (6U1) Construction Year from 199803 Fitting Position Rear Axle | 1998-01 - 2001-06 | 47 | 64 | 1896 | Hatchback |
| SKODA FELICIA Cube Van (6U5) Construction Year from 199803 Fitting Position Rear Axle | 1997-03 - 2001-12 | 47 | 64 | 1896 | Estate Van |
| VW CADDY II Pickup (9U7) Construction Year from 199710 Fitting Position Rear Axle | 1996-06 - 2000-12 | 55 | 75 | 1598 | Pickup |
| VW CADDY II Pickup (9U7) Construction Year from 199710 Fitting Position Rear Axle | 1996-06 - 2000-12 | 47 | 64 | 1896 | Pickup |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle Country Specific Design Japan | 1989-08 - 1991-10 | 44 | 60 | 1588 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198908 Fitting Position Rear Axle Country Specific Design Japan | 1983-08 - 1991-10 | 51 | 70 | 1588 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198908 Fitting Position Rear Axle Country Specific Design Japan | 1989-04 - 1991-10 | 59 | 80 | 1588 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1991-11 - 1997-08 | 40 | 55 | 1390 | Hatchback |
| VW GOLF III (1H1) Construction Year from 199111 Fitting Position Rear Axle | 1991-10 - 1997-08 | 44 | 60 | 1390 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1992-09 - 1997-08 | 55 | 75 | 1598 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1991-11 - 1997-08 | 55 | 75 | 1781 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1991-11 - 1997-08 | 66 | 90 | 1781 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1995-07 - 1997-08 | 47 | 64 | 1896 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1991-11 - 1997-08 | 47 | 64 | 1896 | Hatchback |
| VW GOLF III (1H1) Construction Year from 199308 Construction Year to 199507 Fitting Position Rear Axle | 1991-11 - 1997-08 | 47 | 64 | 1896 | Hatchback |
| VW GOLF III (1H1) Fitting Position Rear Axle | 1991-11 - 1997-08 | 55 | 75 | 1896 | Hatchback |
| VW GOLF III (1H1) Construction Year from 199310 Fitting Position Rear Axle | 1993-08 - 1997-12 | 66 | 90 | 1896 | Hatchback |
| VW GOLF III Cabriolet (1E7) Fitting Position Rear Axle | 1994-10 - 1998-02 | 74 | 101 | 1595 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199309 Construction Year to 199803 Fitting Position Rear Axle | 1993-07 - 1998-05 | 55 | 75 | 1781 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199309 Construction Year to 199803 Fitting Position Rear Axle | 1993-07 - 1998-05 | 66 | 90 | 1781 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199309 Construction Year to 199803 Fitting Position Rear Axle | 1993-07 - 1998-05 | 85 | 115 | 1984 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year to 199803 Fitting Position Rear Axle | 1995-08 - 1998-05 | 66 | 90 | 1896 | Convertible |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1993-07 - 1999-04 | 40 | 55 | 1390 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1993-07 - 1999-04 | 44 | 60 | 1390 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1994-07 - 1999-04 | 74 | 101 | 1595 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1993-07 - 1999-04 | 55 | 75 | 1781 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1993-07 - 1999-04 | 66 | 90 | 1781 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1993-07 - 1999-04 | 85 | 115 | 1984 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1995-07 - 1999-04 | 47 | 64 | 1896 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1993-07 - 1999-04 | 47 | 64 | 1896 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1993-07 - 1999-04 | 55 | 75 | 1896 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1994-03 - 1999-04 | 66 | 90 | 1896 | Estate |
| VW GOLF III Variant (1H5) Fitting Position Rear Axle | 1996-04 - 1999-04 | 81 | 110 | 1896 | Estate |
| VW JETTA II (19E, 1G2, 165) Vehicle Identification Number (VIN) from 1G-KW593280 Fitting Position Rear Axle Country Specific Design Japan | 1987-01 - 1991-10 | 79 | 107 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle Country Specific Design Japan | 1990-01 - 1991-10 | 44 | 60 | 1588 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year from 198908 Fitting Position Rear Axle Country Specific Design Japan | 1984-01 - 1991-10 | 51 | 70 | 1588 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year from 198908 Fitting Position Rear Axle Country Specific Design Japan | 1989-04 - 1991-10 | 59 | 80 | 1588 | Saloon |
| VW PASSAT B1 (32) Construction Year to 197508 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1973-07 - 1975-12 | 55 | 75 | 1471 | Hatchback |
| VW PASSAT B1 (32) Construction Year to 197508 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1973-05 - 1975-12 | 63 | 86 | 1471 | Hatchback |
| VW PASSAT B1 (32) Construction Year from 197509 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1975-08 - 1980-07 | 63 | 85 | 1588 | Hatchback |
| VW PASSAT B1 (32) Construction Year from 197902 Fitting Position Rear Axle | 1975-08 - 1980-07 | 63 | 85 | 1588 | Hatchback |
| VW PASSAT B1 (32) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1977-08 - 1980-07 | 37 | 50 | 1471 | Hatchback |
| VW PASSAT B1 Variant (33) Fitting Position Rear Axle | 1973-05 - 1980-07 | 40 | 55 | 1272 | Estate |
| VW PASSAT B1 Variant (33) Fitting Position Rear Axle | 1973-05 - 1978-01 | 40 | 55 | 1297 | Estate |
| VW PASSAT B1 Variant (33) Fitting Position Rear Axle | 1973-10 - 1978-01 | 44 | 60 | 1297 | Estate |
| VW PASSAT B1 Variant (33) Fitting Position Rear Axle | 1973-10 - 1975-08 | 55 | 75 | 1471 | Estate |
| VW PASSAT B1 Variant (33) Construction Year to 197508 Fitting Position Rear Axle | 1973-10 - 1975-12 | 63 | 86 | 1471 | Estate |
| VW PASSAT B1 Variant (33) Fitting Position Rear Axle | 1976-02 - 1980-07 | 55 | 75 | 1588 | Estate |
| VW PASSAT B1 Variant (33) Construction Year from 197509 Fitting Position Rear Axle | 1975-08 - 1980-07 | 63 | 85 | 1588 | Estate |
| VW PASSAT B1 Variant (33) Fitting Position Rear Axle Country Specific Design Japan Country Specific Design Sweden | 1978-06 - 1980-07 | 81 | 110 | 1588 | Estate |
| VW PASSAT B1 Variant (33) Construction Year from 197708 Fitting Position Rear Axle | 1977-02 - 1980-07 | 37 | 50 | 1471 | Estate |
| VW PASSAT B1 Variant (33) Fitting Position Rear Axle | 1980-08 - 1981-07 | 40 | 54 | 1588 | Estate |
| VW PASSAT B2 (32B) Construction Year from 198408 Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1980-08 - 1986-07 | 44 | 60 | 1272 | Hatchback |
| VW PASSAT B2 (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1986-08 - 1988-03 | 51 | 70 | 1595 | Hatchback |
| VW PASSAT B2 (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1986-08 - 1988-03 | 51 | 70 | 1595 | Hatchback |
| VW PASSAT B2 (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1986-02 - 1988-03 | 53 | 72 | 1595 | Hatchback |
| VW PASSAT B2 (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1986-02 - 1988-03 | 53 | 72 | 1595 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1979-09 - 1988-03 | 55 | 75 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198407 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1979-09 - 1988-03 | 55 | 75 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1979-09 - 1988-03 | 55 | 75 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198407 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1980-08 - 1988-03 | 55 | 75 | 1595 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1980-08 - 1988-03 | 55 | 75 | 1595 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1980-08 - 1988-03 | 55 | 75 | 1595 | Hatchback |
| VW PASSAT B2 (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1981-01 - 1983-02 | 63 | 85 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1986-05 - 1988-03 | 64 | 87 | 1781 | Hatchback |
| VW PASSAT B2 (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1986-05 - 1988-03 | 64 | 87 | 1781 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198407 Fitting Position Rear Axle | 1983-01 - 1988-03 | 66 | 90 | 1781 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1983-01 - 1988-03 | 66 | 90 | 1781 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1983-01 - 1988-03 | 66 | 90 | 1781 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1983-12 - 1988-03 | 82 | 112 | 1781 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198407 Fitting Position Rear Axle | 1983-12 - 1988-03 | 82 | 112 | 1781 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1983-12 - 1988-03 | 82 | 112 | 1781 | Hatchback |
| VW PASSAT B2 (32B) Fitting Position Rear Axle | 1981-01 - 1983-07 | 85 | 115 | 1921 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198407 Fitting Position Rear Axle | 1983-08 - 1988-03 | 85 | 115 | 1994 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Fitting Position Rear Axle | 1983-08 - 1988-03 | 85 | 115 | 1994 | Hatchback |
| VW PASSAT B2 (32B) Fitting Position Rear Axle | 1985-08 - 1988-03 | 85 | 115 | 2226 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1980-08 - 1988-03 | 40 | 54 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198407 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1980-08 - 1988-03 | 40 | 54 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1980-08 - 1988-03 | 40 | 54 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198407 Fitting Position Rear Axle | 1982-04 - 1988-03 | 51 | 70 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Construction Year from 198408 Fitting Position Rear Axle | 1982-04 - 1988-03 | 51 | 70 | 1588 | Hatchback |
| VW PASSAT B2 (32B) Fitting Position Rear Axle | 1988-08 - 1989-07 | 59 | 80 | 1588 | Hatchback |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1980-08 - 1983-07 | 40 | 55 | 1272 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year from 198408 Fitting Position Rear Axle | 1980-08 - 1986-07 | 44 | 60 | 1272 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year to 198407 Fitting Position Rear Axle | 1980-08 - 1986-07 | 44 | 60 | 1272 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year to 198407 Fitting Position Rear Axle | 1980-08 - 1986-07 | 44 | 60 | 1297 | Estate |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1986-08 - 1988-03 | 51 | 70 | 1595 | Estate |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1986-02 - 1988-03 | 53 | 72 | 1595 | Estate |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1980-08 - 1983-07 | 55 | 75 | 1588 | Estate |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1981-01 - 1983-02 | 63 | 85 | 1588 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year to 198407 Fitting Position Rear Axle | 1983-08 - 1988-03 | 55 | 75 | 1595 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year from 198408 Fitting Position Rear Axle | 1983-08 - 1988-03 | 55 | 75 | 1595 | Estate |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1986-05 - 1988-03 | 64 | 87 | 1781 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year to 198407 Fitting Position Rear Axle | 1983-01 - 1988-03 | 66 | 90 | 1781 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year from 198408 Fitting Position Rear Axle | 1983-01 - 1988-03 | 66 | 90 | 1781 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year from 198408 Fitting Position Rear Axle | 1983-12 - 1988-03 | 82 | 112 | 1781 | Estate |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1981-01 - 1983-07 | 85 | 115 | 1921 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year from 198408 Fitting Position Rear Axle | 1983-08 - 1988-03 | 85 | 115 | 1994 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year to 198407 Fitting Position Rear Axle | 1983-08 - 1988-03 | 85 | 115 | 1994 | Estate |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1985-08 - 1988-03 | 85 | 116 | 2226 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year from 198408 Fitting Position Rear Axle | 1980-08 - 1988-03 | 40 | 54 | 1588 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year to 198407 Fitting Position Rear Axle | 1980-08 - 1988-03 | 40 | 54 | 1588 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year from 198408 Fitting Position Rear Axle | 1982-04 - 1988-03 | 51 | 70 | 1588 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year to 198407 Fitting Position Rear Axle | 1982-04 - 1988-03 | 51 | 70 | 1588 | Estate |
| VW PASSAT B2 Saloon (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1986-08 - 1988-03 | 51 | 70 | 1595 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1986-08 - 1988-03 | 51 | 70 | 1595 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1985-01 - 1988-03 | 53 | 72 | 1595 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1985-01 - 1988-03 | 53 | 72 | 1595 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1984-08 - 1988-03 | 55 | 75 | 1595 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1984-08 - 1988-03 | 55 | 75 | 1595 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1986-05 - 1988-03 | 64 | 87 | 1781 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1986-05 - 1988-03 | 64 | 87 | 1781 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1985-01 - 1988-03 | 66 | 90 | 1781 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1985-01 - 1988-03 | 66 | 90 | 1781 | Saloon |
| VW PASSAT B2 Saloon (32B) Fitting Position Rear Axle | 1984-08 - 1985-07 | 85 | 116 | 1994 | Saloon |
| VW PASSAT B2 Saloon (32B) Construction Year from 198508 Fitting Position Rear Axle | 1985-01 - 1988-03 | 85 | 115 | 2226 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1984-08 - 1988-03 | 40 | 54 | 1588 | Saloon |
| VW PASSAT B2 Saloon (32B) Transmission Type Manual Transmission Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 1984-08 - 1988-03 | 40 | 54 | 1588 | Saloon |
| VW PASSAT B2 Saloon (32B) Fitting Position Rear Axle | 1985-01 - 1988-03 | 51 | 70 | 1588 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) to 31-L-085000 Fitting Position Rear Axle | 1988-04 - 1989-07 | 53 | 72 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) to 31-L-085000 Fitting Position Rear Axle | 1988-04 - 1992-07 | 55 | 75 | 1595 | Saloon |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-09 - 1999-10 | 37 | 50 | 999 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1996-09 - 1999-10 | 37 | 50 | 999 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-10 - 1996-09 | 33 | 45 | 1043 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1994-10 - 1996-09 | 33 | 45 | 1043 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-10 - 1997-04 | 40 | 55 | 1296 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1994-10 - 1997-04 | 40 | 55 | 1296 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-08 - 1999-10 | 40 | 55 | 1390 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1995-08 - 1999-10 | 40 | 55 | 1390 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-07 - 1999-10 | 44 | 60 | 1390 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1995-07 - 1999-10 | 44 | 60 | 1390 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle not for country specific design Germany | 1996-04 - 1999-10 | 74 | 100 | 1390 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle not for country specific design Germany | 1996-04 - 1999-10 | 74 | 100 | 1390 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-10 - 1999-10 | 55 | 75 | 1598 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Construction Year to 199909 Fitting Position Rear Axle | 1994-10 - 1999-10 | 55 | 75 | 1598 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-08 - 1999-10 | 55 | 75 | 1598 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Fitting Position Rear Axle | 1995-08 - 1999-10 | 55 | 75 | 1598 | Hatchback |
| VW POLO III (6N1) Construction Year from 199705 Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-04 - 1999-10 | 42 | 57 | 1716 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1997-04 - 1999-10 | 42 | 57 | 1716 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-08 - 1999-10 | 44 | 60 | 1716 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1997-08 - 1999-10 | 44 | 60 | 1716 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-10 - 1999-10 | 47 | 64 | 1896 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1994-10 - 1999-10 | 47 | 64 | 1896 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-07 - 1999-10 | 47 | 64 | 1896 | Hatchback |
| VW POLO III (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1996-07 - 1999-10 | 47 | 64 | 1896 | Hatchback |
| VW POLO III CLASSIC (6V2) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-01 - 1999-08 | 40 | 54 | 1390 | Saloon |
| VW POLO III CLASSIC (6V2) Construction Year to 199909 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-12 - 2001-09 | 44 | 60 | 1390 | Saloon |
| VW POLO III CLASSIC (6V2) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 1997-09 | 55 | 75 | 1595 | Saloon |
| VW POLO III CLASSIC (6V2) Construction Year to 199909 Fitting Position Rear Axle | 1995-12 - 2001-09 | 74 | 100 | 1595 | Saloon |
| VW POLO III CLASSIC (6V2) Construction Year to 199909 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 2001-09 | 55 | 75 | 1598 | Saloon |
| VW POLO III CLASSIC (6V2) Construction Year from 199803 Construction Year to 199909 Fitting Position Rear Axle Country Specific Design Mexico | 1997-01 - 2001-09 | 66 | 90 | 1781 | Saloon |
| VW POLO III CLASSIC (6V2) Construction Year to 199909 Fitting Position Rear Axle | 1997-07 - 2001-09 | 44 | 60 | 1715 | Saloon |
| VW POLO III CLASSIC (6V2) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-01 - 1996-10 | 47 | 64 | 1896 | Saloon |
| VW POLO III CLASSIC (6V2) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1996-01 - 1996-10 | 47 | 64 | 1896 | Saloon |
| VW POLO III CLASSIC (6V2) Fitting Position Rear Axle | 1995-12 - 1999-08 | 47 | 64 | 1896 | Saloon |
| VW POLO III CLASSIC (6V2) Construction Year to 199909 Fitting Position Rear Axle | 1999-08 - 2002-01 | 50 | 68 | 1896 | Saloon |
| VW POLO III CLASSIC (6V2) Construction Year to 199909 Fitting Position Rear Axle | 1996-09 - 2001-09 | 66 | 90 | 1896 | Saloon |
| VW POLO Variant (6V5) Fitting Position Rear Axle | 1998-01 - 1999-08 | 40 | 54 | 1390 | Estate |
| VW POLO Variant (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-05 - 2001-09 | 44 | 60 | 1390 | Estate |
| VW POLO Variant (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-05 - 2001-09 | 55 | 75 | 1598 | Estate |
| VW POLO Variant (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-05 - 2001-09 | 74 | 101 | 1595 | Estate |
| VW POLO Variant (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-05 - 2001-09 | 66 | 90 | 1781 | Estate |
| VW POLO Variant (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-08 - 2001-09 | 44 | 60 | 1715 | Estate |
| VW POLO Variant (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-06 - 2001-09 | 47 | 64 | 1896 | Estate |
| VW POLO Variant (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1999-08 - 2001-09 | 50 | 68 | 1896 | Estate |
| VW POLO Variant (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-05 - 2001-09 | 66 | 90 | 1896 | Estate |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1999-10 - 2001-09 | 37 | 50 | 999 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1999-10 - 2001-09 | 37 | 50 | 999 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1999-10 - 2001-09 | 40 | 54 | 1390 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1999-10 - 2001-09 | 40 | 54 | 1390 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1999-10 - 2001-09 | 44 | 60 | 1390 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1999-10 - 2001-09 | 44 | 60 | 1390 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY420000 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-10 - 2001-09 | 55 | 75 | 1390 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle not for country specific design Germany | 1999-10 - 2001-09 | 74 | 101 | 1390 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle not for country specific design Germany | 1999-10 - 2001-09 | 74 | 101 | 1390 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY420000 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-10 - 2001-09 | 55 | 75 | 1422 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1999-10 - 2001-09 | 44 | 60 | 1716 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1999-10 - 2001-09 | 44 | 60 | 1716 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1999-10 - 2001-09 | 47 | 64 | 1896 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1999-10 - 2001-09 | 47 | 64 | 1896 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1999-10 - 2001-09 | 47 | 64 | 1896 | Hatchback |
| VW POLO (6N2) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1999-10 - 2001-09 | 47 | 64 | 1896 | Hatchback |
| VW SANTANA (32B) Construction Year to 198407 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1981-08 - 1984-12 | 55 | 75 | 1588 | Saloon |
| VW SANTANA (32B) Transmission Type Automatic Transmission Fitting Position Rear Axle | 1981-08 - 1982-12 | 63 | 85 | 1588 | Saloon |
| VW SANTANA (32B) Construction Year to 198407 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1981-08 - 1984-12 | 55 | 75 | 1595 | Saloon |
| VW SANTANA (32B) Construction Year to 198407 Fitting Position Rear Axle | 1983-01 - 1984-12 | 66 | 90 | 1781 | Saloon |
| VW SANTANA (32B) Fitting Position Rear Axle | 1981-08 - 1983-07 | 85 | 115 | 1921 | Saloon |
| VW SANTANA (32B) Construction Year to 198407 Fitting Position Rear Axle | 1983-08 - 1984-12 | 85 | 115 | 1994 | Saloon |
| VW SANTANA (32B) Construction Year to 198407 Transmission Type Automatic Transmission Fitting Position Rear Axle | 1981-08 - 1984-12 | 40 | 54 | 1588 | Saloon |
| VW SANTANA (32B) Construction Year to 198407 Fitting Position Rear Axle | 1981-12 - 1984-12 | 51 | 70 | 1588 | Saloon |
| VW VENTO (1H2) Fitting Position Rear Axle | 1991-11 - 1998-09 | 40 | 55 | 1390 | Saloon |
| VW VENTO (1H2) Fitting Position Rear Axle | 1991-11 - 1998-09 | 44 | 60 | 1390 | Saloon |
| VW VENTO (1H2) Fitting Position Rear Axle | 1992-09 - 1998-09 | 55 | 75 | 1598 | Saloon |
| VW VENTO (1H2) Construction Year from 199201 Fitting Position Rear Axle | 1991-11 - 1998-09 | 55 | 75 | 1781 | Saloon |
| VW VENTO (1H2) Construction Year from 199201 Fitting Position Rear Axle | 1991-11 - 1998-09 | 66 | 90 | 1781 | Saloon |
| VW VENTO (1H2) Fitting Position Rear Axle | 1997-04 - 1998-09 | 47 | 64 | 1896 | Saloon |
| VW VENTO (1H2) Fitting Position Rear Axle | 1991-11 - 1998-09 | 48 | 65 | 1896 | Saloon |
| VW VENTO (1H2) Fitting Position Rear Axle | 1991-11 - 1998-09 | 55 | 75 | 1896 | Saloon |
| VW VENTO (1H2) Fitting Position Rear Axle | 1993-09 - 1998-09 | 66 | 90 | 1896 | Saloon |
| VW POLO Hatchback Van (6N1) Vehicle Identification Number (VIN) to 6N-XY227489 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-10 - 1999-12 | 33 | 45 | 1043 | Hatchback Van |
| VW POLO Hatchback Van (6N1) Vehicle Identification Number (VIN) from 6N-XY227490 Vehicle Identification Number (VIN) to 6N-XY420000 Fitting Position Rear Axle | 1994-10 - 1999-12 | 33 | 45 | 1043 | Hatchback Van |
| VW POLO Estate Van (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-08 - 1999-12 | 44 | 60 | 1390 | Estate Van |
| VW POLO Estate Van (6V5) Construction Year to 199909 Fitting Position Rear Axle | 1997-08 - 1999-12 | 44 | 60 | 1716 | Estate Van |
24.0220-0718.2
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Audi
Siège
Skoda
Volkswagen (VW) - Numéro de trade
- 480209
- Pays d’origine
- Italie
- Informations supplémentaires
- avec roulement de roue
sans anneau de capteurs ABS - Hauteur
- 81,3
- Diamètre extérieur [mm]
- 240,0
- Nombre de trous de boulons
- 4
- Diamètre du trou de boulon [mm]
- 100,0
- Diamètre de la plaque de support [mm]
- 50,3
- Diamètre intérieur [mm]
- 200,0
- Taille du filetage
- M12x1,5
- Max. Dimension de réalésage [mm]
- 201,0
- Hauteur intérieure du tambour de frein [mm]
- 50,0
- Diamètre intérieur du tambour de frein [mm]
- 39,9
Références spécifiques
- EAN-13
- 4006633307178
- MPN
- 2402200718202
ATE 24.0220-0718.2
(240220-07182)
- Diamètre extérieur [mm] : 240,0
- Diamètre intérieur [mm] : 200,0
- Diamètre de la plaque de support [mm] : 50,3
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro d’échange : 480209
