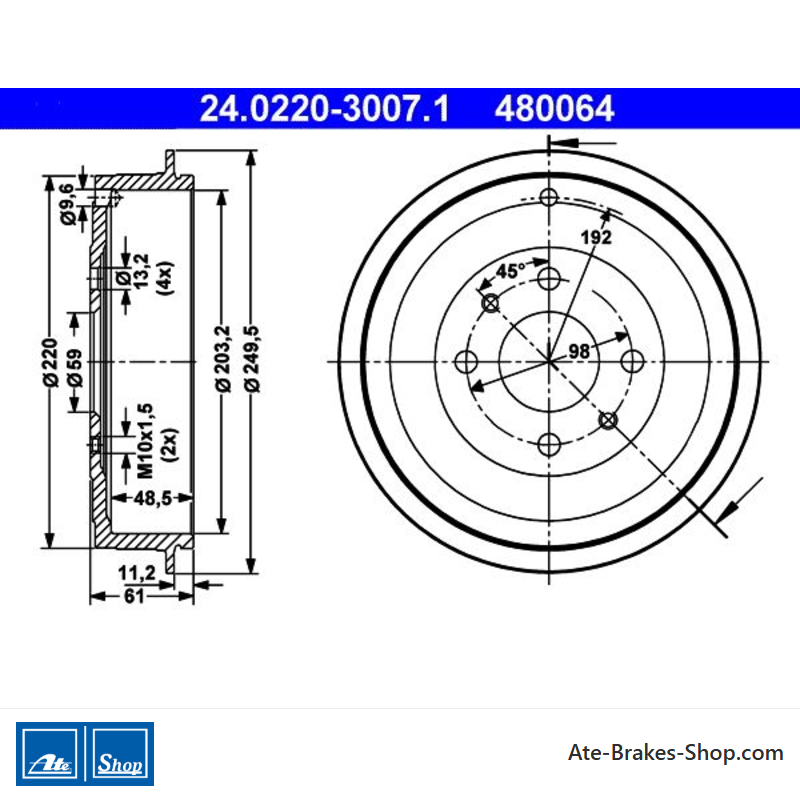

ATE Tambour de frein original en deux parties (24022030071) pour Abarth, Alfa Romeo, Fiat, Lancia
87,12 €
TTC
72,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0220-3007.1
(240220-30071)
- Diamètre extérieur [mm] : 249,5
- Diamètre intérieur [mm] : 203,0
- Diamètre de la plaque de support [mm] : 59,0
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de trade : 480064
- Code Ean : 4006633302821
- Poids : 9.76kg
Specification of ATE 24.0220-3007.1 / 240220-30071 / 24022030071:
| OE Number | Reference info |
| FIAT 7774593 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60813016 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51904681 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51904079 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51822458 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51916180 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51945971 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52127281 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51962845 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 500E Hatchback (332_) Fitting Position Rear Axle | 2023-02 - | 114 | 155 | CC | Hatchback |
| ABARTH 500E Convertible (332_) Fitting Position Rear Axle | 2023-02 - | 114 | 155 | CC | Convertible |
| ALFA ROMEO 145 (930_) Construction Year from 199701 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-12 - 2001-01 | 76 | 103 | 1370 | Hatchback |
| ALFA ROMEO 145 (930_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-09 - 2000-12 | 82 | 112 | 1598 | Hatchback |
| ALFA ROMEO 145 (930_) Construction Year from 199701 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-12 - 2001-01 | 88 | 120 | 1598 | Hatchback |
| ALFA ROMEO 145 (930_) Construction Year from 199701 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-10 - 1999-02 | 66 | 90 | 1929 | Hatchback |
| ALFA ROMEO 145 (930_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-02 - 2001-01 | 77 | 105 | 1910 | Hatchback |
| ALFA ROMEO 146 (930_) Construction Year from 199701 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-11 - 2001-01 | 76 | 103 | 1370 | Hatchback |
| ALFA ROMEO 146 (930_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-09 - 2000-12 | 82 | 112 | 1598 | Hatchback |
| ALFA ROMEO 146 (930_) Construction Year from 199701 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-11 - 2001-10 | 88 | 120 | 1598 | Hatchback |
| ALFA ROMEO 146 (930_) Construction Year from 199701 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-12 - 1999-02 | 66 | 90 | 1929 | Hatchback |
| ALFA ROMEO 146 (930_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-02 - 2001-01 | 77 | 105 | 1910 | Hatchback |
| FIAT 500e (332_) Fitting Position Rear Axle | 2020-10 - | 70 | 95 | CC | Hatchback |
| FIAT 500e (332_) Fitting Position Rear Axle | 2020-10 - | 87 | 118 | CC | Hatchback |
| FIAT 500e (332_) Fitting Position Rear Axle | 2022-12 - | 87 | 118 | CC | Hatchback |
| FIAT 500e Convertible (332_) Fitting Position Rear Axle | 2020-10 - | 70 | 95 | CC | Convertible |
| FIAT 500e Convertible (332_) Fitting Position Rear Axle | 2020-10 - | 87 | 118 | CC | Convertible |
| FIAT BRAVA (182_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-10 - 2001-10 | 59 | 80 | 1242 | Hatchback |
| FIAT BRAVA (182_) Construction Year to 200110 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-12 - 2002-12 | 60 | 82 | 1242 | Hatchback |
| FIAT BRAVA (182_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-10 - 2001-10 | 55 | 75 | 1370 | Hatchback |
| FIAT BRAVA (182_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-10 - 1998-08 | 59 | 80 | 1370 | Hatchback |
| FIAT BRAVA (182_) Fitting Position Rear Axle | 1995-10 - 2001-10 | 66 | 90 | 1581 | Hatchback |
| FIAT BRAVA (182_) Fitting Position Rear Axle | 1996-02 - 2001-10 | 76 | 103 | 1581 | Hatchback |
| FIAT BRAVA (182_) Fitting Position Rear Axle | 1999-01 - 2002-12 | 76 | 103 | 1596 | Hatchback |
| FIAT BRAVA (182_) Fitting Position Rear Axle | 1995-10 - 2001-08 | 83 | 113 | 1747 | Hatchback |
| FIAT BRAVA (182_) Construction Year from 199606 Fitting Position Rear Axle | 1996-03 - 2001-10 | 55 | 75 | 1910 | Hatchback |
| FIAT BRAVA (182_) Construction Year from 199606 Fitting Position Rear Axle | 1996-03 - 2001-10 | 74 | 100 | 1910 | Hatchback |
| FIAT BRAVA (182_) Fitting Position Rear Axle | 2000-09 - 2001-10 | 74 | 100 | 1910 | Hatchback |
| FIAT BRAVA (182_) Fitting Position Rear Axle | 1998-12 - 2001-10 | 77 | 105 | 1910 | Hatchback |
| FIAT BRAVO I (182_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-10 - 2001-10 | 59 | 80 | 1242 | Hatchback |
| FIAT BRAVO I (182_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1998-12 - 2000-10 | 60 | 82 | 1242 | Hatchback |
| FIAT BRAVO I (182_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-10 - 2001-10 | 55 | 75 | 1370 | Hatchback |
| FIAT BRAVO I (182_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-10 - 2001-10 | 59 | 80 | 1370 | Hatchback |
| FIAT BRAVO I (182_) Fitting Position Rear Axle | 1995-10 - 2001-10 | 66 | 90 | 1581 | Hatchback |
| FIAT BRAVO I (182_) Fitting Position Rear Axle | 1996-03 - 2001-10 | 76 | 103 | 1581 | Hatchback |
| FIAT BRAVO I (182_) Fitting Position Rear Axle | 2000-09 - 2001-10 | 76 | 103 | 1596 | Hatchback |
| FIAT BRAVO I (182_) Fitting Position Rear Axle | 1995-10 - 2001-10 | 83 | 113 | 1747 | Hatchback |
| FIAT BRAVO I (182_) Construction Year from 199606 Fitting Position Rear Axle | 1996-03 - 2001-10 | 55 | 75 | 1910 | Hatchback |
| FIAT BRAVO I (182_) Construction Year from 199606 Fitting Position Rear Axle | 1996-03 - 2001-10 | 74 | 100 | 1910 | Hatchback |
| FIAT BRAVO I (182_) Fitting Position Rear Axle | 2000-09 - 2001-10 | 74 | 100 | 1910 | Hatchback |
| FIAT BRAVO I (182_) Fitting Position Rear Axle | 1998-12 - 2001-10 | 77 | 105 | 1910 | Hatchback |
| FIAT FIORINO MPV (225_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2007-11 - | 54 | 73 | 1360 | MPV |
| FIAT IDEA (350_) Construction Year to 200802 Fitting Position Rear Axle | 2004-01 - | 59 | 80 | 1242 | MPV |
| FIAT IDEA (350_) Construction Year from 200511 Construction Year to 200802 Fitting Position Rear Axle | 2005-10 - | 57 | 77 | 1368 | MPV |
| FIAT IDEA (350_) Construction Year to 201207 Fitting Position Rear Axle | 2009-03 - | 57 | 78 | 1368 | MPV |
| FIAT IDEA (350_) Construction Year from 200401 Construction Year to 200802 Fitting Position Rear Axle | 2003-12 - | 66 | 90 | 1368 | MPV |
| FIAT IDEA (350_) Construction Year to 200802 Fitting Position Rear Axle | 2004-01 - | 70 | 95 | 1368 | MPV |
| FIAT IDEA (350_) Construction Year to 201207 Fitting Position Rear Axle | 2004-01 - | 51 | 70 | 1248 | MPV |
| FIAT MAREA (185_) Construction Year from 199904 Fitting Position Rear Axle | 1998-10 - 2002-05 | 60 | 82 | 1242 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 1996-09 - 2002-05 | 59 | 80 | 1370 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 2000-09 - 2002-08 | 72 | 98 | 1581 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 1996-09 - 2002-05 | 76 | 103 | 1581 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 2000-09 - 2002-08 | 76 | 103 | 1596 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 1999-04 - 2002-05 | 76 | 103 | 1581 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 1996-09 - 2002-05 | 83 | 113 | 1747 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 1996-09 - 2002-05 | 55 | 75 | 1910 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 1996-05 - 2002-12 | 74 | 100 | 1910 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 1998-12 - 2002-12 | 77 | 105 | 1910 | Saloon |
| FIAT MAREA (185_) Fitting Position Rear Axle | 2000-09 - 2002-08 | 81 | 110 | 1910 | Saloon |
| FIAT MAREA Weekend (185_) Construction Year from 199904 Fitting Position Rear Axle | 1998-10 - 2002-05 | 60 | 82 | 1242 | Estate |
| FIAT MAREA Weekend (185_) Fitting Position Rear Axle | 1996-09 - 2002-05 | 59 | 80 | 1370 | Estate |
| FIAT PANDA / PANDA CLASSIC (169_) Fitting Position Rear Axle | 2007-01 - 2011-12 | 44 | 60 | 1242 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Fitting Position Rear Axle | 2009-04 - | 44 | 60 | 1242 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Fitting Position Rear Axle | 2010-11 - 2013-08 | 51 | 69 | 1242 | Hatchback |
| FIAT PANDA / PANDA CLASSIC (169_) Fitting Position Rear Axle | 2010-09 - 2013-08 | 57 | 78 | 1368 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2019-03 - | 51 | 69 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2012-02 - | 57 | 78 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2013-12 - | 59 | 80 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2015-01 - | 59 | 80 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2012-02 - | 63 | 86 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2012-07 - | 63 | 86 | 875 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2013-12 - | 44 | 60 | 964 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2012-02 - | 48 | 65 | 964 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2020-01 - | 51 | 69 | 999 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2022-03 - | 52 | 71 | 999 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2012-02 - | 51 | 69 | 1242 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2012-06 - | 51 | 69 | 1242 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2012-02 - | 55 | 75 | 1248 | Hatchback |
| FIAT PANDA (312_, 319_) Fitting Position Rear Axle | 2015-04 - | 70 | 95 | 1248 | Hatchback |
| FIAT PUNTO (188_) Construction Year to 200511 Fitting Position Rear Axle | 2003-09 - 2012-03 | 70 | 95 | 1368 | Hatchback |
| FIAT QUBO (225_) Construction Year from 200809 Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2008-02 - | 54 | 73 | 1360 | MPV |
| FIAT FIORINO Box Body/MPV (225_) Construction Year from 200809 Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2007-11 - | 54 | 73 | 1360 | Box Body/MPV |
| FIAT IDEA Van (350_) Fitting Position Rear Axle | 2004-10 - 2012-12 | 70 | 95 | 1368 | Box Body/MPV |
| FIAT IDEA Van (350_) Fitting Position Rear Axle | 2004-10 - 2011-12 | 51 | 69 | 1248 | Box Body/MPV |
| FIAT PANDA Hatchback Van (169_) Fitting Position Rear Axle | 2007-01 - 2009-11 | 44 | 60 | 1242 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Fitting Position Rear Axle | 2009-04 - | 44 | 60 | 1242 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Fitting Position Rear Axle | 2009-10 - | 57 | 78 | 1368 | Hatchback Van |
| FIAT PANDA Hatchback Van (169_) Fitting Position Rear Axle | 2010-09 - | 51 | 69 | 1242 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2012-02 - | 48 | 65 | 964 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2013-11 - | 59 | 80 | 875 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2015-01 - | 59 | 80 | 875 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2012-02 - | 63 | 86 | 875 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2012-07 - | 63 | 86 | 875 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2012-02 - | 51 | 69 | 1242 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2012-06 - | 51 | 69 | 1242 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2012-02 - | 55 | 75 | 1248 | Hatchback Van |
| FIAT PANDA VAN (312_, 519_) Fitting Position Rear Axle | 2015-12 - | 59 | 80 | 1248 | Hatchback Van |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2005-09 - 2012-09 | 57 | 78 | 1368 | MPV |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2010-11 - 2012-09 | 57 | 78 | 1368 | MPV |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2007-10 - 2012-09 | 66 | 90 | 1368 | MPV |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2004-10 - 2012-09 | 70 | 95 | 1368 | MPV |
| LANCIA MUSA (350_) Fitting Position Rear Axle | 2004-10 - 2012-09 | 51 | 70 | 1248 | MPV |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2003-10 - 2011-12 | 44 | 60 | 1242 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2010-08 - 2011-12 | 51 | 69 | 1242 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2003-10 - 2011-12 | 59 | 80 | 1242 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2006-02 - 2011-12 | 57 | 78 | 1368 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2010-11 - 2011-12 | 57 | 78 | 1368 | Hatchback |
| LANCIA YPSILON (843_) Construction Year to 201106 Fitting Position Rear Axle | 2003-10 - 2011-12 | 70 | 95 | 1368 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2003-10 - 2011-12 | 51 | 70 | 1248 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2006-09 - 2011-12 | 55 | 75 | 1248 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2006-09 - 2011-12 | 66 | 90 | 1248 | Hatchback |
| LANCIA YPSILON (843_) Fitting Position Rear Axle | 2007-05 - 2011-12 | 77 | 105 | 1248 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2013-12 - 2018-12 | 59 | 80 | 875 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2011-05 - 2018-12 | 63 | 86 | 875 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2011-05 - | 63 | 86 | 875 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2020-03 - | 51 | 69 | 999 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2011-05 - 2021-12 | 51 | 69 | 1242 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2011-05 - | 49 | 67 | 1242 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2011-05 - | 51 | 69 | 1242 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2017-03 - | 57 | 78 | 1248 | Hatchback |
| LANCIA YPSILON (312_) Fitting Position Rear Axle | 2011-05 - 2018-08 | 70 | 95 | 1248 | Hatchback |
24.0220-3007.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Abarth
Alfa Romeo
Fiat
Lancia - Numéro de trade
- 480064
- Pays d’origine
- Chine
- Hauteur
- 61,0
- Diamètre extérieur [mm]
- 249,5
- Nombre de trous de boulons
- 4
- Diamètre du trou de boulon [mm]
- 98,0
- Diamètre de la plaque de support [mm]
- 59,0
- Diamètre intérieur [mm]
- 203,0
- Diamètre du canon [mm]
- 13,2
- Max. Dimension de réalésage [mm]
- 204,7
- Hauteur intérieure du tambour de frein [mm]
- 48,5
Références spécifiques
- EAN-13
- 4006633302821
- MPN
- 2402203007102
ATE 24.0220-3007.1
(240220-30071)
- Diamètre extérieur [mm] : 249,5
- Diamètre intérieur [mm] : 203,0
- Diamètre de la plaque de support [mm] : 59,0
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de trade : 480064
