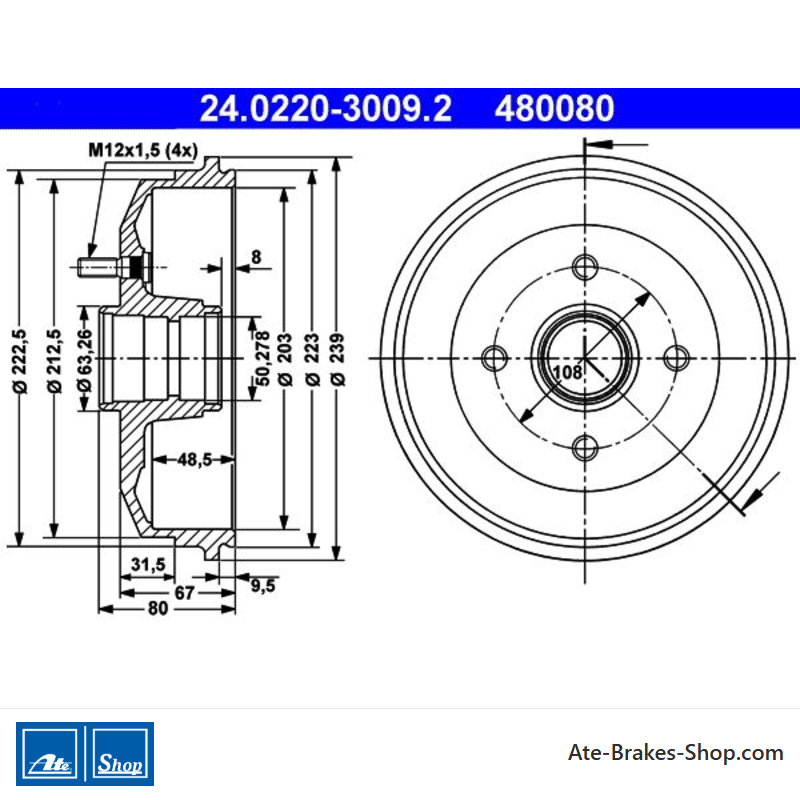

ATE Tambour de frein original en 2 pièces (24022030092) pour Ford, Mazda
123,42 €
TTC
102,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0220-3009.2
(240220-30092)
- Diamètre extérieur [mm] : 239,0
- Diamètre intérieur [mm] : 203,0
- Diamètre de la plaque de support [mm] : 50,3
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de commerce : 480080
- Code Ean : 4006633069373
- Poids : 11.62kg
Specification of ATE 24.0220-3009.2 / 240220-30092 / 24022030092:
| OE Number | Reference info |
| FORD 7296355 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1057814 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1011288 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4053719 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD ESCORT VI Convertible (ALL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-08 | 55 | 75 | 1392 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1996-12 | 65 | 88 | 1597 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1999-09 | 66 | 90 | 1597 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-08 | 77 | 105 | 1796 | Convertible |
| FORD ESCORT VI Convertible (ALL) Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-10 - 1998-08 | 85 | 115 | 1796 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year from 199508 Construction Year to 200007 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 2000-08 | 96 | 130 | 1796 | Convertible |
| FORD ESCORT VI Convertible (ALL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1996-10 - 1999-08 | 51 | 70 | 1753 | Convertible |
| FORD ESCORT VI Convertible (ALL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-09 - 1998-08 | 66 | 90 | 1753 | Convertible |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 44 | 60 | 1299 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1996-12 | 54 | 73 | 1392 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 55 | 75 | 1392 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 65 | 88 | 1597 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 66 | 90 | 1597 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 77 | 105 | 1796 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 85 | 115 | 1796 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1996-12 | 44 | 60 | 1753 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-12 - 1999-02 | 51 | 70 | 1753 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 66 | 90 | 1753 | Saloon |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 44 | 60 | 1299 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 55 | 75 | 1392 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 65 | 88 | 1597 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 66 | 90 | 1597 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 66 | 90 | 1597 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 77 | 105 | 1796 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 85 | 115 | 1796 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-02 | 110 | 150 | 1998 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-10 | 110 | 150 | 1998 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-10 | 162 | 220 | 1994 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1996-12 | 44 | 60 | 1753 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-12 - 1998-10 | 51 | 70 | 1753 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 66 | 90 | 1753 | Hatchback |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-01 | 44 | 60 | 1299 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1996-12 | 54 | 73 | 1392 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 55 | 75 | 1392 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 65 | 88 | 1597 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 66 | 90 | 1597 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 77 | 105 | 1796 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 85 | 115 | 1796 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 44 | 60 | 1753 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-12 - 1999-02 | 51 | 70 | 1753 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 66 | 90 | 1753 | Estate |
| FORD ESCORT CLASSIC (AAL, ABL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1998-10 - 2000-07 | 66 | 90 | 1597 | Hatchback |
| FORD ESCORT CLASSIC (AAL, ABL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1998-10 - 2000-07 | 66 | 90 | 1753 | Hatchback |
| FORD ESCORT CLASSIC Turnier (ANL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1999-02 - 2000-07 | 66 | 90 | 1597 | Estate |
| FORD ESCORT CLASSIC Turnier (ANL) Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1999-02 - 2000-07 | 66 | 90 | 1753 | Estate |
| FORD FIESTA IV (JA_, JB_) Construction Year from 200002 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-08 - 2002-01 | 55 | 75 | 1242 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 200002 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-08 - 2002-01 | 37 | 50 | 1299 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 200002 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-08 - 2002-01 | 44 | 60 | 1299 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 200002 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-04 - 2002-01 | 66 | 90 | 1388 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-02 - 2002-01 | 76 | 103 | 1596 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 200002 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-08 - 2000-04 | 44 | 60 | 1753 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-04 - 2002-01 | 55 | 75 | 1753 | Hatchback |
| FORD KA (RB_) Construction Year from 200308 Fitting Position Rear Axle | 2001-02 - 2008-11 | 70 | 95 | 1597 | Hatchback |
| FORD PUMA (EC_) Construction Year from 200002 Fitting Position Rear Axle | 1997-11 - 2000-10 | 66 | 90 | 1388 | Coupe |
| FORD PUMA (EC_) Construction Year to 200112 Fitting Position Rear Axle | 2000-08 - 2002-06 | 76 | 103 | 1596 | Coupe |
| FORD PUMA (EC_) Construction Year from 200002 Construction Year to 200112 Fitting Position Rear Axle | 1997-03 - 2002-06 | 92 | 125 | 1679 | Coupe |
| FORD PUMA (EC_) Construction Year from 200002 Construction Year to 200112 Fitting Position Rear Axle | 1999-06 - 2002-06 | 114 | 155 | 1679 | Coupe |
| FORD STREET KA (RL2) Fitting Position Rear Axle | 2003-05 - 2005-07 | 70 | 95 | 1599 | Convertible |
| FORD ESCORT VI Estate Van (AVL) Construction Year from 199508 Braking/Driving Dynamics for vehicles with ABS Construction Year to 200007 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 2000-08 | 44 | 60 | 1753 | Estate Van |
| FORD ESCORT VI Estate Van (AVL) Braking/Driving Dynamics for vehicles with ABS Construction Year to 200007 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-12 - 2001-06 | 51 | 70 | 1753 | Estate Van |
| FORD COURIER Box Body/MPV (J5_, J3_) Construction Year to 200203 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-09 - 2003-08 | 55 | 75 | 1753 | Box Body/MPV |
| MAZDA 121 III (JASM, JBSM) Construction Year from 200002 Construction Year to 200303 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-03 - 2003-04 | 55 | 75 | 1242 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year from 200002 Construction Year to 200303 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-03 - 2003-04 | 37 | 50 | 1299 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year from 200002 Construction Year to 200303 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-03 - 2003-04 | 44 | 60 | 1299 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year from 200002 Construction Year to 200303 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-03 - 2003-04 | 44 | 60 | 1753 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2000-02 - 2002-10 | 55 | 75 | 1753 | Hatchback |
24.0220-3009.2
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
Mazda - Numéro de trade
- 480080
- Pays d’origine
- Italie
- Informations supplémentaires
- avec goujons de roue
sans anneau de capteurs ABS
sans roulement de roue - Hauteur
- 80,0
- Diamètre extérieur [mm]
- 239,0
- Nombre de trous de boulons
- 4
- Diamètre du trou de boulon [mm]
- 108,0
- Diamètre de la plaque de support [mm]
- 50,3
- Diamètre intérieur [mm]
- 203,0
- Taille du filetage
- M12x1,5
- Max. Dimension de réalésage [mm]
- 204,3
- Hauteur intérieure du tambour de frein [mm]
- 48,5
Références spécifiques
- EAN-13
- 4006633069373
- MPN
- 2402203009202
ATE 24.0220-3009.2
(240220-30092)
- Diamètre extérieur [mm] : 239,0
- Diamètre intérieur [mm] : 203,0
- Diamètre de la plaque de support [mm] : 50,3
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de commerce : 480080
