ATE Tambour de frein original en deux pièces (24022030141) pour Citroën, Peugeot
170,61 €
TTC
141,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0220-3014.1
(240220-30141)
- Diamètre extérieur [mm] : 247,0
- Diamètre intérieur [mm] : 203,0
- Diamètre de la plaque de support [mm] : 52,0
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de trade : 480090
- Code Ean : 4006633007641
- Poids : 13.25kg
Specification of ATE 24.0220-3014.1 / 240220-30141 / 24022030141:
| OE Number | Reference info |
| CITROËN 4247 40 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424740 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 40 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424740 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-04 - 2005-03 | 55 | 75 | 1360 | Hatchback |
| CITROËN XSARA (N1) Construction Year from 200009 Fitting Position Rear Axle | 1997-04 - 2005-03 | 55 | 75 | 1360 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-04 - 2000-09 | 65 | 88 | 1587 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-04 - 2000-09 | 66 | 90 | 1761 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle not for country specific design Brazil | 1997-04 - 2000-09 | 74 | 101 | 1761 | Hatchback |
| CITROËN XSARA (N1) Fitting Position Rear Axle | 2003-01 - 2005-03 | 50 | 68 | 1398 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-04 - 2000-09 | 42 | 57 | 1527 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-04 - 2000-09 | 43 | 58 | 1769 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-07 - 2005-03 | 51 | 70 | 1868 | Hatchback |
| CITROËN XSARA (N1) Construction Year from 200009 Fitting Position Rear Axle | 1998-07 - 2005-03 | 51 | 70 | 1868 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-04 - 2000-09 | 50 | 68 | 1905 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Fitting Position Rear Axle | 1998-01 - 2000-09 | 55 | 75 | 1905 | Hatchback |
| CITROËN XSARA (N1) Construction Year to 200008 Fitting Position Rear Axle | 1997-04 - 2000-09 | 66 | 90 | 1905 | Hatchback |
| CITROËN XSARA Coupe (N0) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-03 - 2005-03 | 55 | 75 | 1360 | Coupe |
| CITROËN XSARA Coupe (N0) Construction Year from 200009 Fitting Position Rear Axle | 1998-03 - 2005-03 | 55 | 75 | 1360 | Coupe |
| CITROËN XSARA Coupe (N0) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-02 - 2000-09 | 65 | 88 | 1587 | Coupe |
| CITROËN XSARA Coupe (N0) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-02 - 2000-09 | 66 | 90 | 1761 | Coupe |
| CITROËN XSARA Coupe (N0) Fitting Position Rear Axle | 2003-01 - 2005-03 | 50 | 68 | 1398 | Coupe |
| CITROËN XSARA Coupe (N0) Construction Year from 200009 Fitting Position Rear Axle | 1999-02 - 2005-03 | 51 | 70 | 1868 | Coupe |
| CITROËN XSARA Coupe (N0) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1999-02 - 2005-03 | 51 | 70 | 1868 | Coupe |
| CITROËN XSARA Coupe (N0) Construction Year to 200008 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-02 - 2000-09 | 50 | 68 | 1905 | Coupe |
| CITROËN XSARA Coupe (N0) Construction Year to 200008 Fitting Position Rear Axle | 1998-02 - 2000-09 | 66 | 90 | 1905 | Coupe |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-03 - 1997-06 | 44 | 60 | 1124 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-03 - 1997-06 | 55 | 75 | 1360 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-03 - 1997-06 | 55 | 75 | 1360 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-03 - 1997-06 | 65 | 88 | 1580 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Construction Year to 199706 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-07 - 1997-10 | 66 | 90 | 1580 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-07 - 1997-06 | 74 | 101 | 1761 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Construction Year to 199706 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-03 - 1997-10 | 76 | 103 | 1761 | Hatchback |
| CITROËN ZX (N2) Fitting Position Rear Axle | 1996-01 - 1997-06 | 81 | 110 | 1761 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-06 - 1997-06 | 44 | 60 | 1769 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-03 - 1997-06 | 47 | 64 | 1905 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-07 - 1997-06 | 50 | 68 | 1905 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Construction Year to 199706 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-07 - 1997-10 | 65 | 88 | 1905 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-07 - 1997-06 | 66 | 90 | 1905 | Hatchback |
| CITROËN ZX (N2) for RPO number from 06749 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1992-06 - 1994-06 | 68 | 92 | 1905 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199509 Construction Year to 199704 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-05 - 2001-05 | 44 | 60 | 1124 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-04 - 2001-07 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-05 - 2000-10 | 65 | 89 | 1587 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-10 - 2001-05 | 72 | 98 | 1587 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-05 - 2001-05 | 74 | 101 | 1761 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-05 - 2001-05 | 43 | 58 | 1769 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-09 - 2001-05 | 51 | 69 | 1868 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-05 - 2001-05 | 47 | 64 | 1905 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2001-05 | 50 | 68 | 1905 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-03 - 2001-05 | 55 | 75 | 1905 | Hatchback |
| PEUGEOT 306 Hatchback (7A, 7C, N3, N5) Construction Year from 199509 Fitting Position Rear Axle | 1993-05 - 2001-05 | 66 | 90 | 1905 | Hatchback |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199509 Construction Year to 199704 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2001-05 | 44 | 60 | 1124 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2001-05 | 55 | 75 | 1360 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2000-10 | 65 | 89 | 1587 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-10 - 2001-05 | 72 | 98 | 1587 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2001-05 | 74 | 101 | 1761 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2001-05 | 74 | 101 | 1761 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-09 - 2001-05 | 51 | 69 | 1868 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2001-05 | 47 | 64 | 1905 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199509 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-06 - 2001-05 | 50 | 68 | 1905 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-03 - 2001-05 | 55 | 75 | 1905 | Saloon |
| PEUGEOT 306 (7B, N3, N5) Construction Year from 199509 Fitting Position Rear Axle | 1994-06 - 2001-05 | 66 | 90 | 1905 | Saloon |
| PEUGEOT 306 Convertible (7D, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-04 - 2000-10 | 65 | 89 | 1587 | Convertible |
| PEUGEOT 306 Convertible (7D, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-10 - 2002-04 | 72 | 98 | 1587 | Convertible |
| PEUGEOT 306 Convertible (7D, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-05 - 1999-04 | 74 | 101 | 1761 | Convertible |
| PEUGEOT 306 Convertible (7D, N3, N5) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-05 - 2002-04 | 81 | 110 | 1761 | Convertible |
| PEUGEOT 306 Convertible (7D, N3, N5) Construction Year from 199509 Construction Year to 200010 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-03 - 2002-04 | 74 | 101 | 1761 | Convertible |

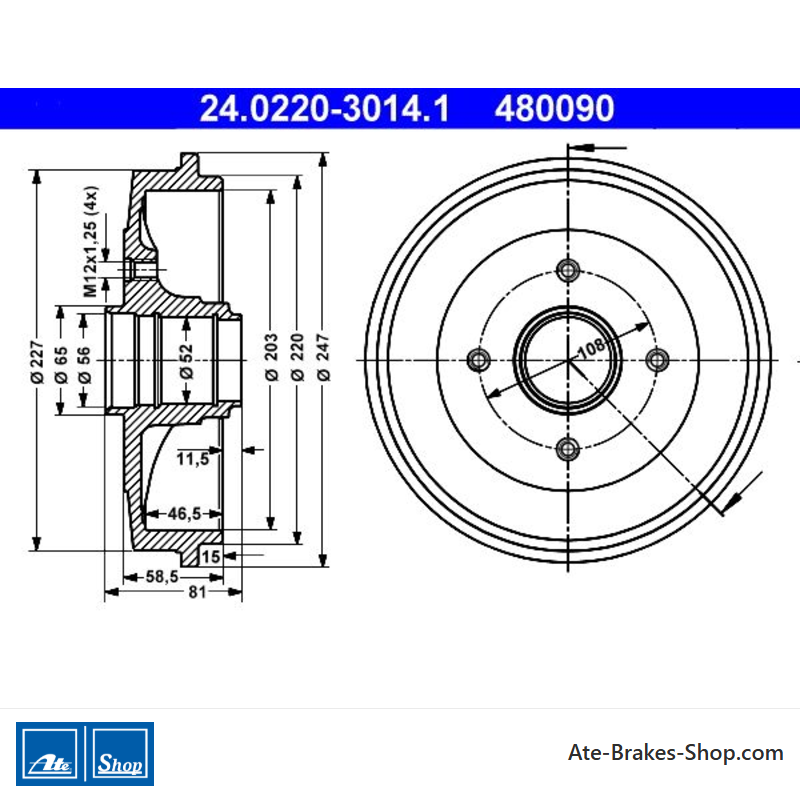

24.0220-3014.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Citroën
Peugeot - Numéro de trade
- 480090
- Pays d’origine
- Italie
- Informations supplémentaires
- sans anneau de capteurs ABS
sans roulement de roue - Hauteur
- 81,0
- Diamètre extérieur [mm]
- 247,0
- Nombre de trous de boulons
- 4
- Diamètre du trou de boulon [mm]
- 108,0
- Diamètre de la plaque de support [mm]
- 52,0
- Diamètre intérieur [mm]
- 203,0
- Taille du filetage
- M12x1,25
- Max. Dimension de réalésage [mm]
- 204,5
- Hauteur intérieure du tambour de frein [mm]
- 46,5
Références spécifiques
- EAN-13
- 4006633007641
- MPN
- 2402203014102
ATE 24.0220-3014.1
(240220-30141)
- Diamètre extérieur [mm] : 247,0
- Diamètre intérieur [mm] : 203,0
- Diamètre de la plaque de support [mm] : 52,0
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de trade : 480090
