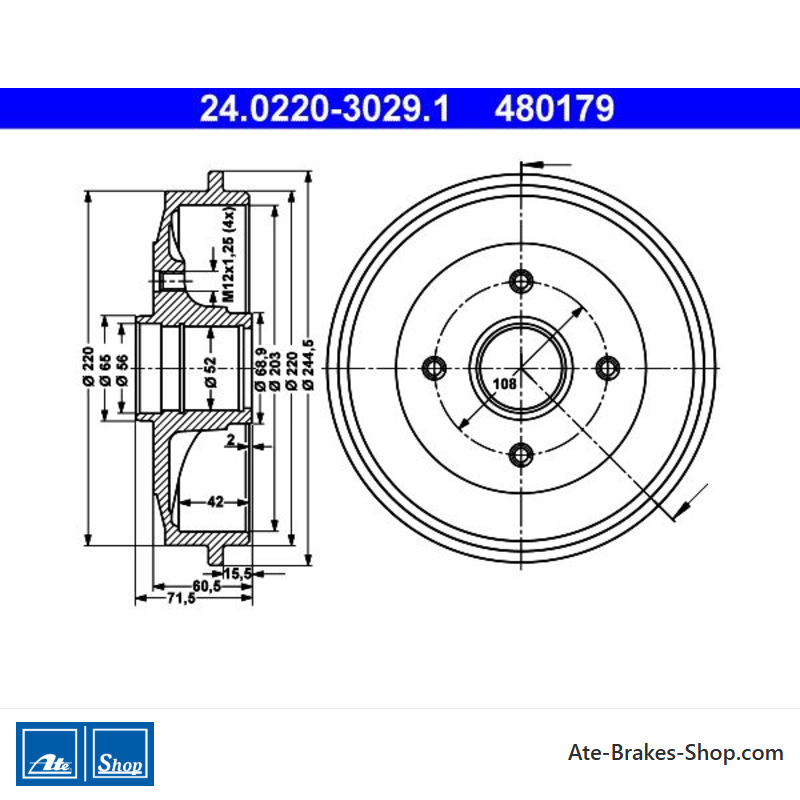

ATE Tambour de frein original en 2 parties (24022030291) pour Citroën, Peugeot
108,90 €
TTC
90,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0220-3029.1
(240220-30291)
- Diamètre extérieur [mm] : 244,5
- Diamètre intérieur [mm] : 203,0
- Diamètre de la plaque de support [mm] : 52,0
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de trade : 480179
- Code Ean : 4006633160858
- Poids : 11.99kg
Specification of ATE 24.0220-3029.1 / 240220-30291 / 24022030291:
| OE Number | Reference info |
| CITROËN 4247 46 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424746 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 46 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424746 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 49 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424749 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C2 (JM_) Construction Year to 200912 Fitting Position Rear Axle | 2003-09 - 2012-09 | 44 | 60 | 1124 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2003-09 - 2009-12 | 54 | 73 | 1360 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2006-10 - 2009-12 | 55 | 75 | 1360 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2005-04 - 2009-12 | 65 | 90 | 1360 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2003-07 - 2009-12 | 50 | 68 | 1398 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2002-02 - 2009-12 | 44 | 60 | 1124 | Hatchback |
| CITROËN C3 I (FC_, FN_) Fitting Position Rear Axle | 2006-06 - 2009-12 | 44 | 60 | 1124 | Hatchback |
| CITROËN C3 I (FC_, FN_) Fitting Position Rear Axle | 2008-01 - 2009-12 | 49 | 67 | 1360 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2002-02 - 2010-11 | 54 | 73 | 1360 | Hatchback |
| CITROËN C3 I (FC_, FN_) Fitting Position Rear Axle | 2008-09 - 2009-12 | 54 | 73 | 1360 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year from 200509 Construction Year to 200908 Fitting Position Rear Axle | 2002-02 - 2009-12 | 54 | 73 | 1360 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2003-12 - 2010-08 | 65 | 88 | 1360 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2002-02 - 2009-12 | 50 | 68 | 1398 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2005-05 - 2009-12 | 55 | 75 | 1398 | Hatchback |
| CITROËN C3 I (FC_, FN_) Fitting Position Rear Axle | 2002-02 - 2008-06 | 66 | 90 | 1398 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2005-10 - 2009-12 | 66 | 90 | 1560 | Hatchback |
| CITROËN C3 Pluriel (HB_) Construction Year to 201007 Fitting Position Rear Axle | 2003-05 - | 54 | 73 | 1360 | Convertible |
| CITROËN C3 Pluriel (HB_) Construction Year to 201007 Fitting Position Rear Axle | 2004-04 - | 50 | 68 | 1398 | Convertible |
| CITROËN C3 II (SC_) Fitting Position Rear Axle | 2009-11 - 2016-09 | 50 | 68 | 1398 | Hatchback |
| CITROËN C2 ENTERPRISE (JG_) Fitting Position Rear Axle | 2003-11 - 2009-12 | 44 | 60 | 1124 | Hatchback Van |
| CITROËN C2 ENTERPRISE (JG_) Fitting Position Rear Axle | 2006-09 - 2009-12 | 50 | 68 | 1398 | Hatchback Van |
| CITROËN C2 ENTERPRISE (JG_) Fitting Position Rear Axle | 2003-11 - 2005-04 | 51 | 69 | 1398 | Hatchback Van |
| CITROËN C3 II Hatchback Van (SC_) Fitting Position Rear Axle | 2010-06 - 2016-09 | 50 | 68 | 1398 | Hatchback Van |
| PEUGEOT 206+ (2L_, 2M_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201305 Braking System for vehicles with electronic brakeforce distribution (EBD) Fitting Position Rear Axle | 2009-01 - 2013-06 | 44 | 60 | 1124 | Hatchback |
| PEUGEOT 206+ (2L_, 2M_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201305 Braking System for vehicles with electronic brakeforce distribution (EBD) Fitting Position Rear Axle | 2009-04 - 2013-06 | 44 | 60 | 1124 | Hatchback |
| PEUGEOT 206+ (2L_, 2M_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201305 Braking System for vehicles with electronic brakeforce distribution (EBD) Fitting Position Rear Axle | 2010-09 - 2013-06 | 54 | 73 | 1360 | Hatchback |
| PEUGEOT 206+ (2L_, 2M_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201305 Braking System for vehicles with electronic brakeforce distribution (EBD) Fitting Position Rear Axle | 2009-01 - 2013-08 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 206+ (2L_, 2M_) Construction Year to 201305 Braking/Driving Dynamics for vehicles with ABS Braking System for vehicles with electronic brakeforce distribution (EBD) Fitting Position Rear Axle | 2009-01 - 2013-06 | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) for RPO number from 10255 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-08 - 2000-07 | 40 | 54 | 1124 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) for RPO number from 10255 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-09 - 2007-02 | 44 | 60 | 1124 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) for RPO number from 10255 Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-09 - 2012-12 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2006-05 - 2007-09 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2006-05 - 2007-09 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 206 Hatchback (2A/C) for RPO number from 10255 Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-09 - 2009-04 | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 206 SW (2E/K) for RPO number from 10255 Fitting Position Rear Axle | 2002-07 - 2007-02 | 44 | 60 | 1124 | Estate |
| PEUGEOT 206 SW (2E/K) for RPO number from 10255 Fitting Position Rear Axle | 2002-07 - 2007-02 | 55 | 75 | 1360 | Estate |
| PEUGEOT 206 SW (2E/K) for RPO number from 10255 Fitting Position Rear Axle | 2002-07 - 2007-02 | 50 | 68 | 1398 | Estate |
| PEUGEOT 206 SW (2E/K) for RPO number from 10255 Fitting Position Rear Axle | 2002-07 - 2007-02 | 66 | 90 | 1997 | Estate |
| PEUGEOT 206 Saloon Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2007-03 - | 55 | 75 | 1360 | Saloon |
| PEUGEOT 206 Saloon Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2008-09 - | 50 | 68 | 1398 | Saloon |
| PEUGEOT 1007 (KM_) Construction Year to 201102 Fitting Position Rear Axle | 2005-04 - | 54 | 75 | 1360 | Hatchback |
| PEUGEOT 1007 (KM_) Construction Year to 201102 Fitting Position Rear Axle | 2005-10 - | 65 | 88 | 1360 | Hatchback |
| PEUGEOT 1007 (KM_) Construction Year to 201102 Fitting Position Rear Axle | 2005-04 - | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 206 Van for RPO number from 10255 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2002-09 - 2007-02 | 44 | 60 | 1124 | Hatchback Van |
| PEUGEOT 206 Van for RPO number from 10255 Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-09 - 2009-03 | 50 | 68 | 1398 | Hatchback Van |
24.0220-3029.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Citroën
Peugeot - Numéro de trade
- 480179
- Pays d’origine
- Italie
- Informations supplémentaires
- sans anneau de capteurs ABS
sans roulement de roue - Hauteur
- 71,5
- Diamètre extérieur [mm]
- 244,5
- Nombre de trous de boulons
- 4
- Diamètre du trou de boulon [mm]
- 108,0
- Diamètre de la plaque de support [mm]
- 52,0
- Diamètre intérieur [mm]
- 203,0
- Taille du filetage
- M12x1,25
- Max. Dimension de réalésage [mm]
- 204,5
- Hauteur intérieure du tambour de frein [mm]
- 42,0
Références spécifiques
- EAN-13
- 4006633160858
- MPN
- 2402203029102
ATE 24.0220-3029.1
(240220-30291)
- Diamètre extérieur [mm] : 244,5
- Diamètre intérieur [mm] : 203,0
- Diamètre de la plaque de support [mm] : 52,0
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de trade : 480179
