ATE Caisson de frein original en deux pièces (24022280421) pour Fiat, Opel
105,27 €
TTC
87,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0222-8042.1
(240222-80421)

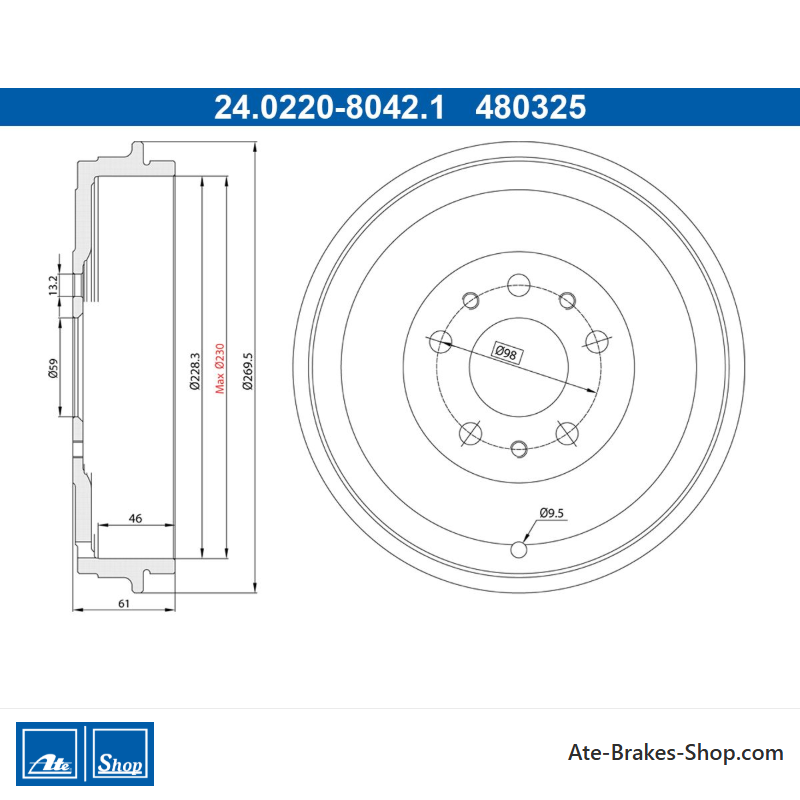

- Diamètre extérieur [mm] : 269,5
- Diamètre intérieur [mm] : 228,3
- Diamètre de la plaque de support [mm] : 59,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de trade : 480325
- Code Ean : 4006633470384
- Poids : 12.05kg
Specification of ATE 24.0222-8042.1 / 240222-80421 / 24022280421:
| OE Number | Reference info |
| FIAT 51860868 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51898123 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52015297 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51990128 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 68 002 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 568002 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95515120 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95524688 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95515120 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 68 002 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 568002 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95524688 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 77 | 105 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2017-04 - | 59 | 80 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2013-03 - | 63 | 86 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 70 | 95 | 1368 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 62 | 84 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2014-06 - | 70 | 95 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - 2018-05 | 77 | 105 | 1598 | Hatchback |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - | 70 | 95 | 1368 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 81 | 110 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 70 | 95 | 1248 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 88 | 120 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Saloon |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-07 - 2020-10 | 81 | 110 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1248 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Hatchback |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 70 | 95 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-07 - 2020-10 | 81 | 110 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1248 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Estate |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-04 - 2023-12 | 70 | 95 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-06 - 2023-12 | 88 | 120 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2013-11 - 2023-12 | 55 | 75 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-03 - 2023-12 | 59 | 80 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2011-02 - 2023-12 | 74 | 101 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 77 | 105 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-02 - 2023-12 | 88 | 120 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 99 | 135 | 1956 | Platform/Chassis |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 70 | 95 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 88 | 120 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Bus |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Bus |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-03 - 2023-12 | 70 | 95 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-03 - 2023-12 | 74 | 100 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Construction Year from 201002 Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-01 - 2023-12 | 77 | 105 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-03 - 2023-12 | 88 | 120 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Construction Year from 201002 Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-01 - 2023-12 | 99 | 135 | 1956 | Bus |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 70 | 95 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-06 - 2023-12 | 88 | 120 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2013-11 - 2023-12 | 55 | 75 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-03 - 2023-12 | 59 | 80 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-03 - 2023-12 | 70 | 95 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 74 | 100 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - | 77 | 105 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-02 - 2023-12 | 88 | 120 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2010-02 - 2023-12 | 99 | 135 | 1956 | Box Body/MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 70 | 95 | 1368 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 88 | 120 | 1368 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 88 | 120 | 1368 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2015-03 - | 59 | 80 | 1248 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 66 | 90 | 1248 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1248 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 66 | 90 | 1598 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2015-03 - | 70 | 95 | 1598 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 77 | 105 | 1598 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2015-03 - | 88 | 120 | 1598 | MPV |
| OPEL COMBO Tour (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 99 | 135 | 1956 | MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 70 | 95 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 88 | 120 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 88 | 120 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 59 | 80 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 66 | 90 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 66 | 90 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 74 | 101 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 77 | 105 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2015-04 - | 88 | 120 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Wheelbase for shortened wheelbase Fitting Position Rear Axle | 2012-02 - | 99 | 135 | 1956 | Box Body/MPV |
24.0222-8042.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Fiat
Opel - Numéro de trade
- 480325
- Pays d’origine
- Chine
- Hauteur
- 61,0
- Diamètre extérieur [mm]
- 269,5
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 98,0
- Diamètre de la plaque de support [mm]
- 59,0
- Diamètre intérieur [mm]
- 228,3
- Diamètre du canon [mm]
- 13,2
- Max. Dimension de réalésage [mm]
- 230,0
- Hauteur intérieure du tambour de frein [mm]
- 46,0
Références spécifiques
- EAN-13
- 4006633470384
- MPN
- 2402228042102
ATE 24.0222-8042.1
(240222-80421)
- Diamètre extérieur [mm] : 269,5
- Diamètre intérieur [mm] : 228,3
- Diamètre de la plaque de support [mm] : 59,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de trade : 480325
