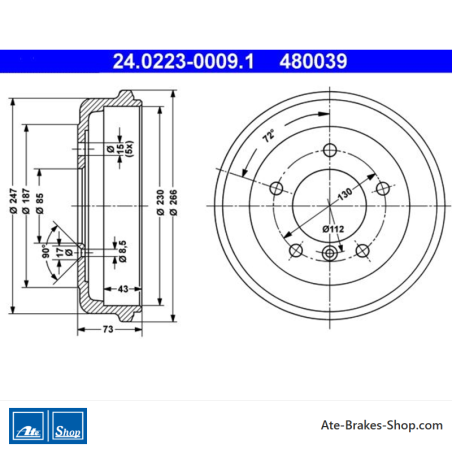

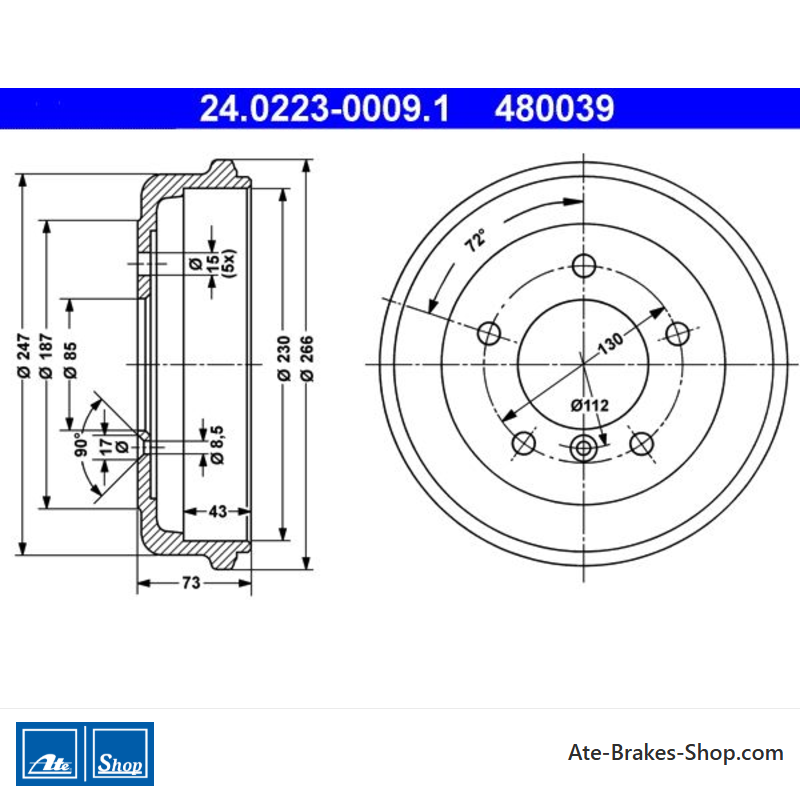

ATE Tambour de frein original en 2 pièces (24022300091) pour Mercedes-Benz
90,75 €
TTC
75,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0223-0009.1
(240223-00091)
- Diamètre extérieur [mm] : 266,0
- Diamètre intérieur [mm] : 230,0
- Diamètre de la plaque de support [mm] : 85,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de l’échange : 480039
- Code Ean : 4006633108980
- Poids : 13.04kg
Specification of ATE 24.0223-0009.1 / 240223-00091 / 24022300091:
| OE Number | Reference info |
| MERCEDES-BENZ 601 423 51 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 6014235101 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 601 423 51 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 6014235101 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ T1 Platform/Chassis (601) Construction Year from 197705 Fitting Position Rear Axle | 1977-04 - 1989-10 | 70 | 95 | 2298 | Platform/Chassis |
| MERCEDES-BENZ T1 Platform/Chassis (601) Construction Year from 197705 Fitting Position Rear Axle | 1977-04 - 1989-10 | 63 | 86 | 2307 | Platform/Chassis |
| MERCEDES-BENZ T1 Platform/Chassis (601) Fitting Position Rear Axle | 1988-11 - 1996-02 | 58 | 79 | 2299 | Platform/Chassis |
| MERCEDES-BENZ T1 Platform/Chassis (601) Fitting Position Rear Axle | 1989-06 - 1996-02 | 60 | 82 | 2299 | Platform/Chassis |
| MERCEDES-BENZ T1 Platform/Chassis (601) Fitting Position Rear Axle | 1977-12 - 1989-10 | 53 | 72 | 2399 | Platform/Chassis |
| MERCEDES-BENZ T1 Platform/Chassis (601) Construction Year from 197705 Fitting Position Rear Axle | 1977-04 - 1982-12 | 48 | 65 | 2404 | Platform/Chassis |
| MERCEDES-BENZ T1 Platform/Chassis (601) Fitting Position Rear Axle | 1988-11 - 1996-02 | 70 | 95 | 2874 | Platform/Chassis |
| MERCEDES-BENZ T1 Platform/Chassis (601) Fitting Position Rear Axle | 1988-11 - 1996-02 | 72 | 98 | 2874 | Platform/Chassis |
| MERCEDES-BENZ T1 Platform/Chassis (601) Fitting Position Rear Axle | 1982-12 - 1990-01 | 65 | 88 | 2998 | Platform/Chassis |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1977-05 - 1982-12 | 63 | 86 | 2307 | Van |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1982-07 - 1996-02 | 70 | 95 | 2298 | Van |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1989-05 - 1996-02 | 77 | 105 | 2298 | Van |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1988-11 - 1996-02 | 58 | 79 | 2299 | Van |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1988-10 - 1996-02 | 60 | 82 | 2299 | Van |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1982-06 - 1990-01 | 53 | 72 | 2399 | Van |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1988-10 - 1996-02 | 70 | 95 | 2874 | Van |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1988-10 - 1996-02 | 72 | 98 | 2874 | Van |
| MERCEDES-BENZ T1 Van (601, 611) Fitting Position Rear Axle | 1982-12 - 1990-01 | 65 | 88 | 2998 | Van |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1977-05 - 1982-12 | 63 | 86 | 2307 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1982-07 - 1990-01 | 70 | 95 | 2298 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1989-05 - 1996-02 | 77 | 105 | 2298 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1988-10 - 1996-02 | 58 | 79 | 2299 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1988-10 - 1996-02 | 60 | 82 | 2299 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1977-05 - 1982-12 | 48 | 65 | 2404 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1982-07 - 1990-01 | 53 | 72 | 2399 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1988-11 - 1996-02 | 70 | 95 | 2874 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1988-11 - 1996-02 | 72 | 98 | 2874 | Bus |
| MERCEDES-BENZ T1 Bus (B601) Fitting Position Rear Axle | 1982-12 - 1990-01 | 65 | 88 | 2998 | Bus |
24.0223-0009.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Mercedes-Benz
- Numéro de trade
- 480039
- Pays d’origine
- Chine
- Hauteur
- 73,0
- Diamètre extérieur [mm]
- 266,0
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 130,0
- Diamètre de la plaque de support [mm]
- 85,0
- Diamètre intérieur [mm]
- 230,0
- Diamètre du canon [mm]
- 15,0
- Max. Dimension de réalésage [mm]
- 231,0
- Hauteur intérieure du tambour de frein [mm]
- 43,0
Références spécifiques
- EAN-13
- 4006633108980
- MPN
- 2402230009102
ATE 24.0223-0009.1
(240223-00091)
- Diamètre extérieur [mm] : 266,0
- Diamètre intérieur [mm] : 230,0
- Diamètre de la plaque de support [mm] : 85,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de l’échange : 480039
