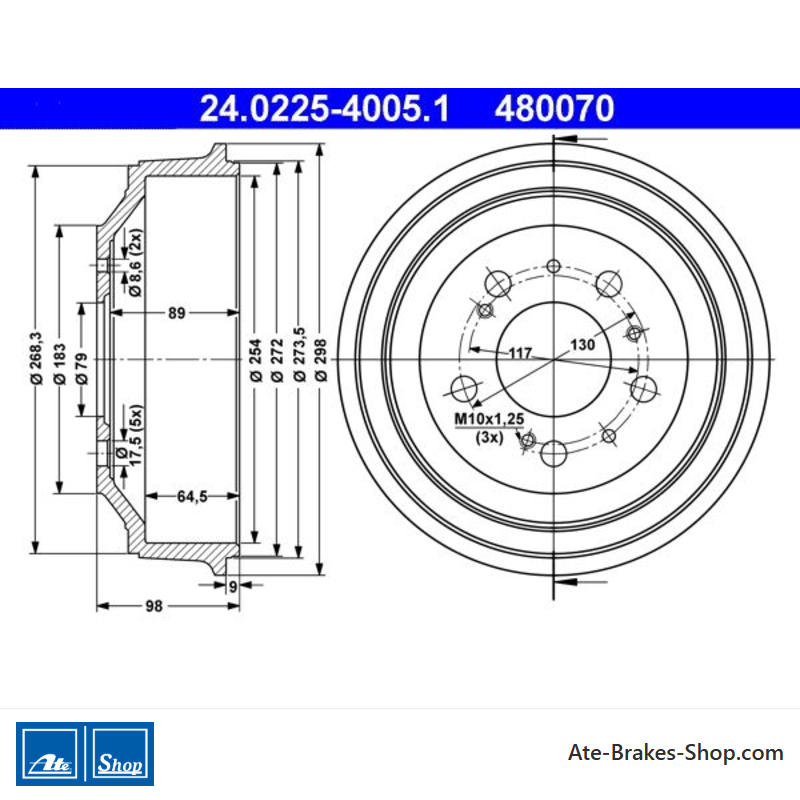

ATE Tambour de frein original en 2 pièces (24022540051) pour Citroën, Fiat, Peugeot
181,50 €
TTC
150,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0225-4005.1
(240225-40051)
- Diamètre extérieur [mm] : 298,0
- Diamètre intérieur [mm] : 254,0
- Diamètre de la plaque de support [mm] : 79,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de commerce : 480070
- Code Ean : 4006633066860
- Poids : 18.34kg
Specification of ATE 24.0225-4005.1 / 240225-40051 / 24022540051:
| OE Number | Reference info |
| CITROËN 4247 38 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424738 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 1306211080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 38 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424738 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN JUMPER I Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1996-10 - 2002-01 | 80 | 109 | 1998 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 63 | 86 | 2446 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-03 - 2002-04 | 63 | 86 | 2446 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 76 | 103 | 2446 | Van |
| CITROËN JUMPER I Van (230L) Payload [kg] 1800 kg Fitting Position Rear Axle | 1996-12 - 2000-11 | 79 | 107 | 2446 | Van |
| CITROËN JUMPER I Van (230L) Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-03 - 2000-11 | 79 | 107 | 2446 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-09 - 2002-04 | 94 | 128 | 2798 | Van |
| CITROËN JUMPER I Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-09 - 2002-04 | 94 | 128 | 2798 | Van |
| CITROËN JUMPER I Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-02 - 2002-04 | 80 | 109 | 1998 | Bus |
| CITROËN JUMPER I Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-08 - 2002-04 | 63 | 86 | 2446 | Bus |
| CITROËN JUMPER I Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-08 - 2002-04 | 76 | 103 | 2446 | Bus |
| CITROËN JUMPER I Bus (230P) Payload [kg] 1800 kg Fitting Position Rear Axle | 1996-12 - 2000-11 | 79 | 107 | 2446 | Bus |
| CITROËN JUMPER I Bus (230P) Vehicle Identification Number (VIN) to S 16209999 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Bus |
| CITROËN JUMPER I Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-09 - 2002-04 | 94 | 128 | 2798 | Bus |
| CITROËN JUMPER I Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-09 - 2002-04 | 94 | 128 | 2798 | Bus |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 63 | 86 | 2446 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-03 - 2002-04 | 63 | 86 | 2446 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 76 | 103 | 2446 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1996-12 - 2002-04 | 79 | 107 | 2446 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-03 - 2002-04 | 79 | 107 | 2446 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Vehicle Identification Number (VIN) to S 16209999 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Platform/Chassis |
| CITROËN JUMPER I Platform/Chassis (230) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-09 - 2002-04 | 94 | 128 | 2798 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (290_) Construction Year from 199402 Payload [kg] 1800 kg Fitting Position Rear Axle | 1990-07 - 1994-03 | 55 | 75 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (290_) Construction Year from 199402 Payload [kg] 1800 kg Fitting Position Rear Axle | 1990-07 - 1994-03 | 70 | 95 | 2500 | Platform/Chassis |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-11 - 2002-04 | 80 | 109 | 1998 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 62 | 84 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 62 | 84 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 80 | 109 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 85 | 116 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-05 - 2002-04 | 85 | 116 | 2500 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-11 - 2002-04 | 94 | 128 | 2798 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-11 - 2002-04 | 94 | 128 | 2798 | Van |
| FIAT DUCATO Van (230_) Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-05 - 2001-09 | 90 | 122 | 2799 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-05 - 2002-04 | 64 | 87 | 2800 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-08 - 2002-04 | 64 | 87 | 2800 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1997-10 - 2002-04 | 90 | 122 | 2800 | Van |
| FIAT DUCATO Van (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-06 - 2002-04 | 90 | 122 | 2800 | Van |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 62 | 84 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-11 - 1998-04 | 85 | 116 | 2499 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-06 - 1998-08 | 80 | 109 | 2499 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-06 - 1998-04 | 85 | 116 | 2499 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 62 | 84 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 80 | 109 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-06 - 2002-04 | 85 | 116 | 2500 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-11 - 2002-04 | 94 | 128 | 2798 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2001-10 - 2002-04 | 94 | 128 | 2798 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-05 - 2001-09 | 90 | 122 | 2799 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-02 - 2002-04 | 64 | 87 | 2800 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-12 - 2002-04 | 90 | 122 | 2800 | Platform/Chassis |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-11 - 2001-11 | 80 | 109 | 1998 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-08 - 2002-04 | 62 | 84 | 2500 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-07 - 2002-04 | 80 | 109 | 2500 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 85 | 116 | 2499 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1998-02 - 2002-04 | 64 | 87 | 2800 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1997-10 - 2002-04 | 90 | 122 | 2800 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-07 - 2002-04 | 90 | 122 | 2800 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-11 - 2002-04 | 94 | 128 | 2798 | Bus |
| FIAT DUCATO Bus (230_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-11 - 2002-04 | 94 | 128 | 2798 | Bus |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-06 - 2002-04 | 80 | 109 | 1998 | Van |
| PEUGEOT BOXER Van (230L) Payload [kg] 1800 kg Fitting Position Rear Axle | 1996-03 - 1998-09 | 80 | 109 | 1998 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2001-08 - 2002-04 | 62 | 84 | 1997 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 63 | 86 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-07 - 2002-04 | 63 | 86 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-03 | 76 | 103 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1997-01 - 2002-04 | 79 | 107 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-07 - 2002-04 | 79 | 107 | 2446 | Van |
| PEUGEOT BOXER Van (230L) Vehicle Identification Number (VIN) to S 16209999 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-10 - 2001-11 | 93 | 126 | 2798 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-11 - 2002-04 | 94 | 128 | 2798 | Van |
| PEUGEOT BOXER Van (230L) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-10 - 2002-04 | 94 | 128 | 2798 | Van |
| PEUGEOT BOXER Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 80 | 109 | 1998 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1996-08 - 2002-04 | 80 | 109 | 1998 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-08 - 2002-04 | 63 | 86 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1996-07 - 2002-04 | 63 | 86 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year from 199408 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-07 - 1997-12 | 76 | 103 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1996-07 - 2002-04 | 76 | 103 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1997-01 - 2002-04 | 79 | 107 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1997-01 - 2002-04 | 79 | 107 | 2446 | Bus |
| PEUGEOT BOXER Bus (230P) Vehicle Identification Number (VIN) to S 16209999 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Bus |
| PEUGEOT BOXER Bus (230P) Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-10 - 2001-11 | 93 | 126 | 2798 | Bus |
| PEUGEOT BOXER Bus (230P) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-11 - 2002-04 | 94 | 128 | 2798 | Bus |
| PEUGEOT BOXER Bus (230P) Vehicle Identification Number (VIN) to S 16209999 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-10 - 2002-04 | 94 | 128 | 2798 | Bus |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-06 - 2002-04 | 80 | 109 | 1998 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 2002-04 | 63 | 86 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-07 - 2002-04 | 63 | 86 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Payload [kg] 1800 kg Fitting Position Rear Axle | 1994-03 - 1997-12 | 76 | 103 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1997-01 - 2002-04 | 79 | 107 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-07 - 2002-04 | 79 | 107 | 2446 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Vehicle Identification Number (VIN) to S 16209999 Payload [kg] 1800 kg Fitting Position Rear Axle | 1999-01 - 2002-02 | 64 | 87 | 2798 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-10 - 2001-11 | 93 | 126 | 2798 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis (ZCT_) Construction Year to 200110 Payload [kg] 1800 kg Fitting Position Rear Axle | 2000-11 - 2002-04 | 94 | 128 | 2798 | Platform/Chassis |
24.0225-4005.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Citroën
Fiat
Peugeot - Numéro de trade
- 480070
- Pays d’origine
- Chine
- Hauteur
- 98,0
- Diamètre extérieur [mm]
- 298,0
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 130,0
- Diamètre de la plaque de support [mm]
- 79,0
- Diamètre intérieur [mm]
- 254,0
- Diamètre du canon [mm]
- 17,5
- Max. Dimension de réalésage [mm]
- 255,6
- Hauteur intérieure du tambour de frein [mm]
- 64,5
Références spécifiques
- EAN-13
- 4006633066860
- MPN
- 2402254005102
ATE 24.0225-4005.1
(240225-40051)
- Diamètre extérieur [mm] : 298,0
- Diamètre intérieur [mm] : 254,0
- Diamètre de la plaque de support [mm] : 79,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de commerce : 480070
