ATE Tambour de frein original en 2 pièces (24022550031) pour Citroën, Fiat, Lancia, Peugeot
177,87 €
TTC
147,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0225-5003.1
(240225-50031)

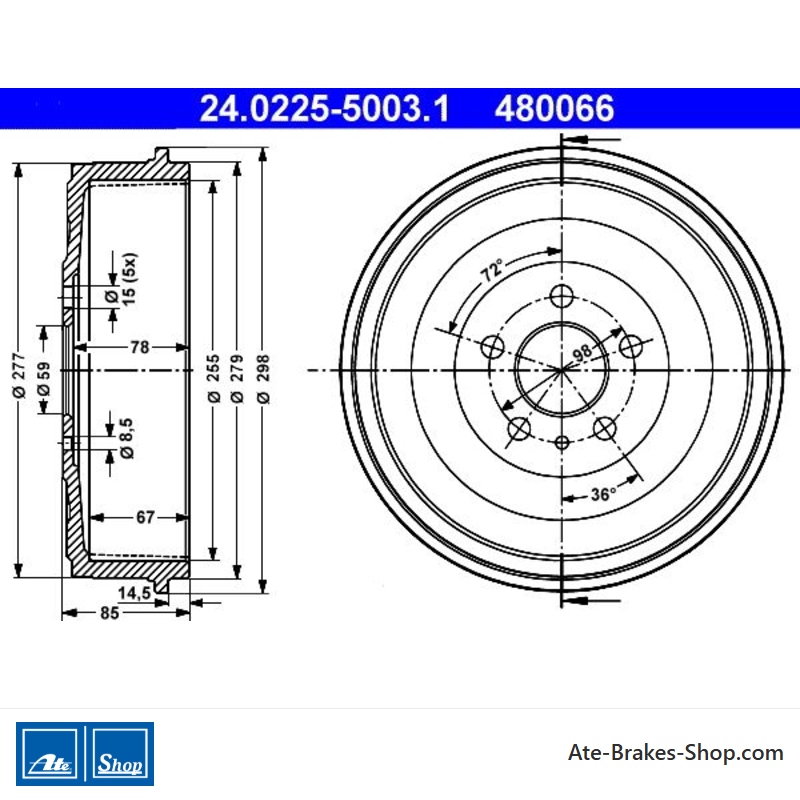

- Diamètre extérieur [mm] : 298,0
- Diamètre intérieur [mm] : 255,0
- Diamètre de la plaque de support [mm] : 59,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro d’échange : 480066
- Code Ean : 4006633302869
- Poids : 19.00kg
Specification of ATE 24.0225-5003.1 / 240225-50031 / 24022550031:
| OE Number | Reference info |
| CITROËN 4247 37 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424737 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 1311823080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 1471288080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 37 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424737 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN EVASION MPV (22, U6) Fitting Position Rear Axle | 1997-05 - 2002-07 | 73 | 99 | 1761 | MPV |
| CITROËN EVASION MPV (22, U6) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-06 - 2002-07 | 89 | 121 | 1998 | MPV |
| CITROËN EVASION MPV (22, U6) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-10 - 1998-12 | 68 | 92 | 1905 | MPV |
| CITROËN EVASION MPV (22, U6) Construction Year from 199502 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-11 - 2002-07 | 66 | 90 | 1905 | MPV |
| CITROËN EVASION MPV (22, U6) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-08 - 2002-07 | 80 | 109 | 1997 | MPV |
| CITROËN EVASION MPV (22, U6) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-09 - 2002-07 | 80 | 109 | 1997 | MPV |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Fitting Position Rear Axle | 1995-10 - 2000-08 | 58 | 79 | 1581 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Fitting Position Rear Axle | 2000-04 - 2006-10 | 100 | 136 | 1997 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Fitting Position Rear Axle | 2000-03 - 2006-10 | 102 | 138 | 1997 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Fitting Position Rear Axle | 1998-04 - 2006-10 | 51 | 69 | 1868 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Fitting Position Rear Axle | 1995-10 - 2000-08 | 66 | 90 | 1905 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Fitting Position Rear Axle | 1999-10 - 2006-10 | 69 | 94 | 1997 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Construction Year from 200201 Fitting Position Rear Axle | 2001-10 - 2006-10 | 80 | 109 | 1997 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Fitting Position Rear Axle | 2002-01 - 2006-10 | 80 | 109 | 1997 | Van |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 1995-10 - 2000-08 | 58 | 79 | 1581 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 2000-04 - 2006-12 | 100 | 136 | 1997 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 2000-03 - 2006-10 | 102 | 138 | 1997 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 1998-04 - 2003-11 | 51 | 69 | 1868 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 1995-10 - 1998-08 | 51 | 69 | 1905 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 1995-10 - 2000-08 | 66 | 90 | 1905 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 1996-04 - 2003-11 | 68 | 92 | 1905 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 1999-10 - 2006-10 | 69 | 94 | 1997 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 2000-03 - 2006-10 | 80 | 109 | 1997 | Bus |
| CITROËN JUMPY I (U6U_) Fitting Position Rear Axle | 2000-03 - 2006-10 | 80 | 109 | 1997 | Bus |
| CITROËN JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) Fitting Position Rear Axle | 2003-12 - 2006-10 | 100 | 136 | 1997 | Platform/Chassis |
| CITROËN JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) Fitting Position Rear Axle | 2000-11 - 2006-10 | 51 | 69 | 1868 | Platform/Chassis |
| CITROËN JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) Fitting Position Rear Axle | 1999-10 - 2006-10 | 68 | 92 | 1905 | Platform/Chassis |
| CITROËN JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) Fitting Position Rear Axle | 1999-10 - 2006-10 | 69 | 94 | 1997 | Platform/Chassis |
| CITROËN JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) Fitting Position Rear Axle | 2003-12 - 2006-10 | 80 | 109 | 1997 | Platform/Chassis |
| CITROËN JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) Fitting Position Rear Axle | 2003-12 - 2006-10 | 80 | 109 | 1997 | Platform/Chassis |
| FIAT ULYSSE (220_) Construction Year to 200207 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - 2002-08 | 73 | 99 | 1761 | MPV |
| FIAT ULYSSE (220_) Construction Year to 200207 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-06 - 2002-08 | 89 | 121 | 1998 | MPV |
| FIAT ULYSSE (220_) Construction Year to 200207 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-02 - 2002-08 | 66 | 90 | 1905 | MPV |
| FIAT ULYSSE (220_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - 1999-12 | 68 | 92 | 1905 | MPV |
| FIAT ULYSSE (220_) Construction Year to 200207 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-10 - 2002-08 | 80 | 109 | 1997 | MPV |
| FIAT ULYSSE (220_) Construction Year from 199910 Construction Year to 200207 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-05 - 2002-08 | 80 | 109 | 1997 | MPV |
| FIAT ULYSSE (220_) Construction Year from 199606 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-03 - 1999-10 | 80 | 109 | 2088 | MPV |
| FIAT SCUDO Van (220_) Fitting Position Rear Axle | 1996-02 - 2006-12 | 58 | 79 | 1581 | Van |
| FIAT SCUDO Van (220_) Construction Year from 200006 Fitting Position Rear Axle | 2000-05 - 2006-12 | 100 | 136 | 1997 | Van |
| FIAT SCUDO Van (220_) Fitting Position Rear Axle | 1998-04 - 2006-12 | 51 | 69 | 1868 | Van |
| FIAT SCUDO Van (220_) Fitting Position Rear Axle | 1996-02 - 2006-12 | 51 | 69 | 1905 | Van |
| FIAT SCUDO Van (220_) Fitting Position Rear Axle | 1996-02 - 2006-12 | 66 | 90 | 1905 | Van |
| FIAT SCUDO Van (220_) Fitting Position Rear Axle | 1998-02 - 2006-12 | 68 | 92 | 1905 | Van |
| FIAT SCUDO Van (220_) Construction Year from 199912 Fitting Position Rear Axle | 1999-10 - 2006-12 | 69 | 94 | 1997 | Van |
| FIAT SCUDO Van (220_) Fitting Position Rear Axle | 2002-12 - 2006-12 | 80 | 109 | 1997 | Van |
| FIAT SCUDO Van (220_) Construction Year from 199912 Fitting Position Rear Axle | 1999-05 - 2006-12 | 80 | 109 | 1997 | Van |
| FIAT SCUDO Bus (220_) Fitting Position Rear Axle | 1996-02 - 2006-12 | 58 | 79 | 1581 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Rear Axle | 2000-06 - 2006-12 | 100 | 136 | 1997 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Rear Axle | 1998-04 - 2006-12 | 51 | 69 | 1868 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Rear Axle | 1996-02 - 1998-04 | 51 | 69 | 1905 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Rear Axle | 1996-02 - 2006-12 | 66 | 90 | 1905 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Rear Axle | 1996-02 - 2006-12 | 68 | 92 | 1905 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Rear Axle | 2004-01 - 2006-12 | 69 | 94 | 1997 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Rear Axle | 1999-12 - 2006-12 | 80 | 109 | 1997 | Bus |
| FIAT SCUDO Bus (220_) Construction Year from 199912 Fitting Position Rear Axle | 1999-05 - 2006-12 | 80 | 109 | 1997 | Bus |
| FIAT SCUDO Platform/Chassis (220_) Fitting Position Rear Axle | 1996-09 - 2006-12 | 58 | 79 | 1581 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Fitting Position Rear Axle | 1998-04 - 2006-12 | 51 | 69 | 1868 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Fitting Position Rear Axle | 1996-09 - 2006-12 | 68 | 92 | 1905 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Construction Year from 199912 Fitting Position Rear Axle | 1999-10 - 2006-12 | 69 | 94 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Fitting Position Rear Axle | 2002-12 - 2006-12 | 80 | 109 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Construction Year from 199912 Fitting Position Rear Axle | 1999-05 - 2006-12 | 80 | 109 | 1997 | Platform/Chassis |
| LANCIA ZETA (22_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1998-05 - 2000-07 | 97 | 132 | 1998 | MPV |
| LANCIA ZETA (22_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-07 - 2002-09 | 100 | 136 | 1997 | MPV |
| LANCIA ZETA (22_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-09 - 2002-09 | 80 | 109 | 1997 | MPV |
| LANCIA ZETA (22_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2001-04 - 2003-10 | 81 | 110 | 1997 | MPV |
| PEUGEOT 806 (221) Construction Year from 199610 Construction Year to 200206 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-07 - 2002-08 | 73 | 99 | 1761 | MPV |
| PEUGEOT 806 (221) Construction Year from 199408 Construction Year to 200206 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-06 - 2002-08 | 89 | 121 | 1998 | MPV |
| PEUGEOT 806 (221) Construction Year to 200206 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-07 - 2002-08 | 66 | 90 | 1905 | MPV |
| PEUGEOT 806 (221) Construction Year to 200206 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - 2002-08 | 68 | 92 | 1905 | MPV |
| PEUGEOT 806 (221) Construction Year to 200206 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-08 - 2002-08 | 80 | 109 | 1997 | MPV |
| PEUGEOT 806 (221) Construction Year to 200206 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-08 - 2002-08 | 80 | 109 | 1997 | MPV |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 1996-02 - 2000-09 | 58 | 79 | 1581 | Van |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 1996-10 - 2000-09 | 74 | 101 | 1761 | Van |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 2002-09 - 2006-12 | 100 | 136 | 1997 | Van |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 1998-12 - 2006-12 | 51 | 69 | 1868 | Van |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 1996-02 - 1998-12 | 51 | 70 | 1905 | Van |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 1996-02 - 2000-09 | 66 | 90 | 1905 | Van |
| PEUGEOT EXPERT Van (222) Construction Year from 199604 Fitting Position Rear Axle | 1996-02 - 1998-05 | 68 | 92 | 1905 | Van |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 2000-07 - 2006-12 | 69 | 94 | 1997 | Van |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 2000-07 - 2006-12 | 80 | 109 | 1997 | Van |
| PEUGEOT EXPERT Van (222) Fitting Position Rear Axle | 2000-07 - 2006-12 | 80 | 109 | 1997 | Van |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 1996-02 - 2000-09 | 58 | 79 | 1581 | Bus |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 1996-10 - 2000-09 | 74 | 101 | 1761 | Bus |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 2000-07 - 2006-12 | 100 | 136 | 1997 | Bus |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 2003-12 - 2006-12 | 51 | 69 | 1868 | Bus |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 1996-02 - 1998-12 | 51 | 70 | 1905 | Bus |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 1996-02 - 2000-09 | 66 | 90 | 1905 | Bus |
| PEUGEOT EXPERT (224_) Construction Year from 199604 Fitting Position Rear Axle | 1996-02 - 1998-05 | 68 | 92 | 1905 | Bus |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 2000-10 - 2006-10 | 69 | 94 | 1997 | Bus |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 2000-07 - 2006-12 | 80 | 109 | 1997 | Bus |
| PEUGEOT EXPERT (224_) Fitting Position Rear Axle | 2000-07 - 2006-12 | 80 | 109 | 1997 | Bus |
| PEUGEOT EXPERT Platform/Chassis (223) Fitting Position Rear Axle | 1996-02 - 2000-09 | 58 | 79 | 1581 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis (223) Fitting Position Rear Axle | 1996-02 - 1998-12 | 51 | 70 | 1905 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis (223) Fitting Position Rear Axle | 1996-02 - 2000-09 | 66 | 90 | 1905 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis (223) Construction Year from 199604 Fitting Position Rear Axle | 1996-02 - 1998-05 | 68 | 92 | 1905 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis (223) Fitting Position Rear Axle | 2000-10 - 2006-10 | 69 | 94 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis (223) Fitting Position Rear Axle | 2000-10 - 2006-10 | 80 | 109 | 1997 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis (223) Fitting Position Rear Axle | 2000-10 - 2006-10 | 80 | 109 | 1997 | Platform/Chassis |
24.0225-5003.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Citroën
Fiat
Lancia
Peugeot - Numéro de trade
- 480066
- Pays d’origine
- Italie
- Hauteur
- 85,0
- Diamètre extérieur [mm]
- 298,0
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 98,0
- Diamètre de la plaque de support [mm]
- 59,0
- Diamètre intérieur [mm]
- 255,0
- Diamètre du canon [mm]
- 15,0
- Max. Dimension de réalésage [mm]
- 256,0
- Hauteur intérieure du tambour de frein [mm]
- 67,0
Références spécifiques
- EAN-13
- 4006633302869
- MPN
- 2402255003102
ATE 24.0225-5003.1
(240225-50031)
- Diamètre extérieur [mm] : 298,0
- Diamètre intérieur [mm] : 255,0
- Diamètre de la plaque de support [mm] : 59,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro d’échange : 480066
