ATE Disque de frein original en 2 pièces (24011002101) pour Audi
94,38 €
TTC
78,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0110-0210.1
(240110-02101)
- Diamètre extérieur [mm] : 245,0
- Diamètre intérieur [mm] : 135,5
- Épaisseur du disque de frein [mm] : 10,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro commercial : 410210
Informations logistiques :
- Code Ean : 4006633269940
- Poids : 11.03kg
Specification of ATE 24.0110-0210.1 / 240110-02101 / 24011002101:
| OE Number | Reference info |
| VAG 8D0 615 601 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 8D0615601B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1994-11 - 2000-10 | 74 | 100 | 1595 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 2000-07 - 2000-11 | 75 | 102 | 1595 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1994-11 - 2000-11 | 92 | 125 | 1781 | Saloon |
| AUDI A4 B5 (8D2) Construction Year from 199505 Fitting Position Rear Axle | 1995-01 - 2000-11 | 110 | 150 | 1781 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1997-12 - 2000-11 | 132 | 180 | 1781 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1997-08 - 2000-11 | 120 | 163 | 2393 | Saloon |
| AUDI A4 B5 (8D2) Construction Year from 199708 Fitting Position Rear Axle | 1997-03 - 2000-11 | 121 | 165 | 2393 | Saloon |
| AUDI A4 B5 (8D2) Construction Year to 199707 Fitting Position Rear Axle Country Specific Design Thailand | 1997-03 - 2000-11 | 121 | 165 | 2393 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1995-01 - 2000-11 | 110 | 150 | 2598 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1995-09 - 1997-07 | 128 | 174 | 2771 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1996-10 - 2000-11 | 142 | 193 | 2771 | Saloon |
| AUDI A4 B5 (8D2) Construction Year from 199603 Fitting Position Rear Axle | 1995-12 - 2000-11 | 55 | 75 | 1896 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1995-01 - 2000-11 | 66 | 90 | 1896 | Saloon |
| AUDI A4 B5 (8D2) Construction Year from 199602 Fitting Position Rear Axle | 1995-10 - 2000-11 | 81 | 110 | 1896 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 2000-03 - 2000-11 | 85 | 116 | 1896 | Saloon |
| AUDI A4 B5 (8D2) Fitting Position Rear Axle | 1997-09 - 2000-11 | 110 | 150 | 2496 | Saloon |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1994-11 - 2001-09 | 74 | 100 | 1595 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 2000-07 - 2001-09 | 75 | 102 | 1595 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1996-02 - 2001-09 | 92 | 125 | 1781 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1996-03 - 2001-09 | 110 | 150 | 1781 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1997-12 - 2001-09 | 132 | 180 | 1781 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1997-08 - 2001-09 | 120 | 163 | 2393 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year from 199708 Construction Year to 200104 Fitting Position Rear Axle | 1997-03 - 2001-09 | 121 | 165 | 2393 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1996-02 - 2001-09 | 110 | 150 | 2598 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1996-10 - 2001-09 | 142 | 193 | 2771 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1996-02 - 2001-09 | 66 | 90 | 1896 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1996-02 - 2001-09 | 81 | 110 | 1896 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 2000-03 - 2001-09 | 85 | 115 | 1896 | Estate |
| AUDI A4 B5 Avant (8D5) Construction Year to 200104 Fitting Position Rear Axle | 1997-09 - 2001-09 | 110 | 150 | 2496 | Estate |
| AUDI A4 B5 Avant (8D5) Fitting Position Rear Axle | 1998-03 - 2000-06 | 66 | 90 | 1896 | Estate |
24.0110-0210.1

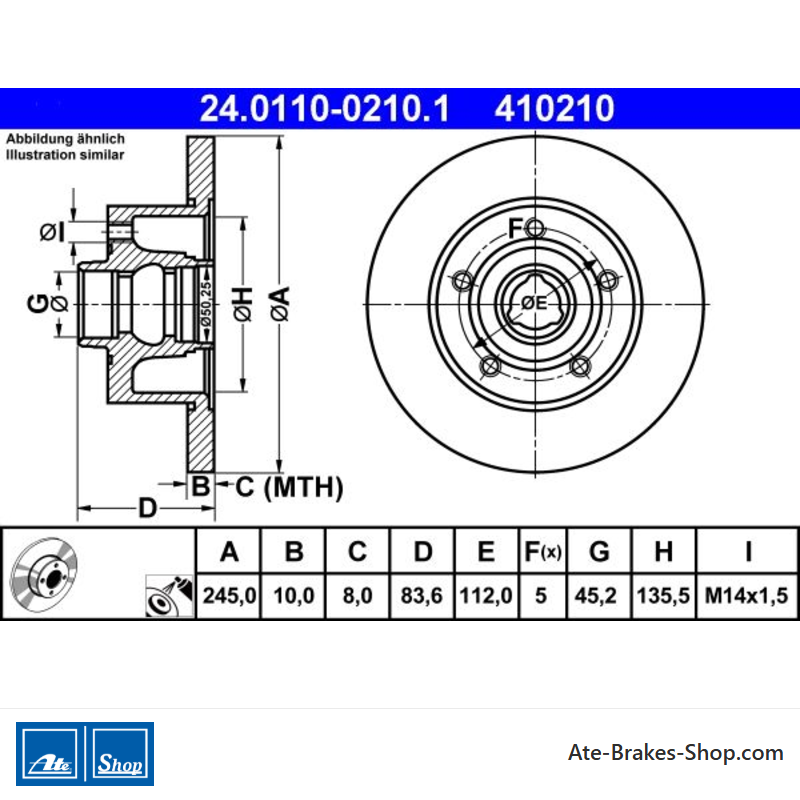

Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Audi
- Numéro de trade
- 410210
- Pays d’origine
- Italie
- Informations supplémentaires
- sans anneau de capteurs ABS
sans roulement de roue - Hauteur
- 83,6
- Diamètre extérieur [mm]
- 245,0
- Épaisseur du disque de frein [mm]
- 10,0
- Type à disque de frein
- solide
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 112,0
- Diamètre de la plaque de support [mm]
- 50,3
- Diamètre de centrage [mm]
- 45,2
- Diamètre intérieur [mm]
- 135,5
- Taille du filetage
- M14x1,5
- Épaisseur minimale [mm]
- 8,0
Références spécifiques
- EAN-13
- 4006633269940
- MPN
- 2401100210101
ATE 24.0110-0210.1
(240110-02101)
- Diamètre extérieur [mm] : 245,0
- Diamètre intérieur [mm] : 135,5
- Épaisseur du disque de frein [mm] : 10,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro commercial : 410210
