ATE Disque de frein d’origine (24013301011) pour Ford
156,09 €
TTC
129,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0133-0101.1
(240133-01011)
- Diamètre extérieur [mm] : 288,0
- Diamètre intérieur [mm] : 136,0
- Épaisseur du disque de frein [mm] : 33,0
- Nombre de trous de boulon : 5
- Numéro d’échange : 433101
Informations logistiques :
- Code Ean : 4006633420273
- Poids : 10.09kg
Specification of ATE 24.0133-0101.1 / 240133-01011 / 24013301011:
| OE Number | Reference info |
| FORD 1842994 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD BK21-1125-BC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1763885 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD BK21-1125-BB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1867728 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2110010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2110008 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2256036 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TOURNEO CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 77 | 105 | 1995 | Bus |
| FORD TOURNEO CUSTOM V362 Bus (F3) Fitting Position Front Axle Rims for light alloy rims Rims for steel rims | 2020-04 - 2023-12 | 92 | 125 | 996 | Bus |
| FORD TOURNEO CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 96 | 130 | 1995 | Bus |
| FORD TOURNEO CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 125 | 170 | 1995 | Bus |
| FORD TOURNEO CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2015-12 | 74 | 100 | 2198 | Bus |
| FORD TOURNEO CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2015-12 | 92 | 125 | 2198 | Bus |
| FORD TOURNEO CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2015-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2017-01 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2017-01 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2015-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2017-01 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2017-01 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2014-12 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Vehicle type 250/260/270/280/290 Vehicle type 300/310 Tyres for single tyres Fitting Position Front Axle | 2015-08 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 77 | 105 | 1995 | Van |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Construction Year from 201608 Fitting Position Front Axle Rims for light alloy rims Vehicle type 250/260/270 Vehicle type 280/290 Vehicle type 300/310 | 2015-12 - 2023-12 | 77 | 105 | 1995 | Van |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 96 | 130 | 1995 | Van |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 125 | 170 | 1995 | Van |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2019-05 - 2023-12 | 136 | 185 | 1995 | Van |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Fitting Position Front Axle Rims for light alloy rims Vehicle type 250/260/270 Vehicle type 280/290 Vehicle type 300/310 | 2019-05 - 2023-12 | 136 | 185 | 1995 | Van |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2016-06 | 74 | 100 | 2198 | Van |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2023-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT CUSTOM V362 Van (FY, FZ) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2015-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT CUSTOM V362 Bus (F3) Fitting Position Front Axle Rims for light alloy rims Rims for steel rims | 2020-04 - 2023-12 | 92 | 125 | 996 | Bus |
| FORD TRANSIT CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 77 | 105 | 1995 | Bus |
| FORD TRANSIT CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 96 | 130 | 1995 | Bus |
| FORD TRANSIT CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2015-12 - 2023-12 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2016-06 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2015-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT CUSTOM V362 Bus (F3) Fitting Position Front Axle Vehicle type 250/260/270 Vehicle type 280/290/300/310 | 2012-09 - 2015-12 | 114 | 155 | 2198 | Bus |

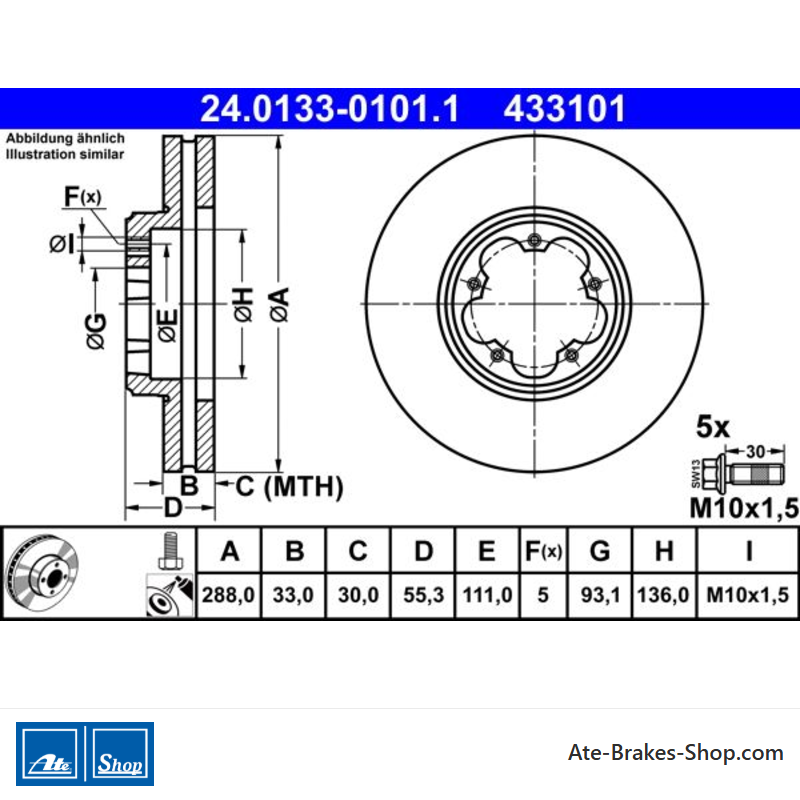

24.0133-0101.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
- Numéro de trade
- 433101
- Pays d’origine
- Allemagne
- Informations supplémentaires
- avec des boulons/vis
- Hauteur
- 55,3
- Diamètre extérieur [mm]
- 288,0
- Épaisseur du disque de frein [mm]
- 33,0
- Type à disque de frein
- Ventilé
- Traitement
- Alliage/Haute teneur en carbone
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 111,0
- Diamètre de centrage [mm]
- 93,1
- Diamètre intérieur [mm]
- 136,0
- Taille du filetage
- M10x1,5
- Épaisseur minimale [mm]
- 30,0
Références spécifiques
- EAN-13
- 4006633420273
- MPN
- 2401330101102
ATE 24.0133-0101.1
(240133-01011)
- Diamètre extérieur [mm] : 288,0
- Diamètre intérieur [mm] : 136,0
- Épaisseur du disque de frein [mm] : 33,0
- Nombre de trous de boulon : 5
- Numéro d’échange : 433101
