ATE Original-Zweiteilige Bremstrommel (24022000451) für Opel, Suzuki
83,49 €
(inkl. MwSt.)
69,00 € Steuerexzl.
Teilenummer:
ATE 24.0220-0045.1
(240220-00451)

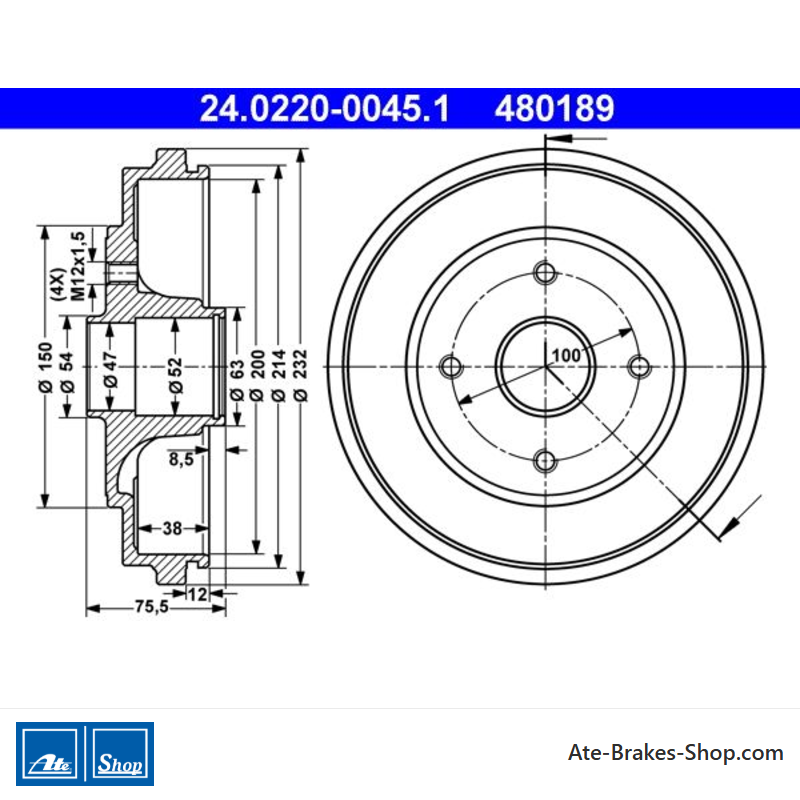

- Außendurchmesser [mm]: 232,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 52,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480189
- Ean-Code: 4006633285605
- Gewicht: 10.24kg
Specification of ATE 24.0220-0045.1 / 240220-00451 / 24022000451:
| OE Number | Reference info |
| OPEL 47 07 272 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 4707272 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 9214294 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-85E50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 47 07 272 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 4707272 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 9214294 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) from 4G000001 Construction Year to 200707 Fitting Position Rear Axle | 2000-09 - 2007-12 | 43 | 58 | 973 | Hatchback |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) from 4G000001 Construction Year to 200707 Fitting Position Rear Axle | 2003-08 - 2007-12 | 44 | 60 | 998 | Hatchback |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) from 4G000001 Construction Year to 200707 Fitting Position Rear Axle | 2000-09 - 2007-12 | 55 | 75 | 1199 | Hatchback |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) from 4G000001 Construction Year to 200707 Fitting Position Rear Axle | 2004-07 - 2007-12 | 59 | 80 | 1229 | Hatchback |
| OPEL AGILA A (H00) Vehicle Identification Number (VIN) from 4G000001 Construction Year to 200707 Fitting Position Rear Axle | 2003-08 - 2007-12 | 51 | 70 | 1248 | Hatchback |
| SUZUKI WAGON R+ (MA) Fitting Position Rear Axle | 2003-09 - 2006-08 | 69 | 94 | 1328 | Hatchback |
| SUZUKI WAGON R+ (MA) Construction Year to 200804 Fitting Position Rear Axle | 2003-09 - | 51 | 70 | 1248 | Hatchback |
| SUZUKI WAGON R+ (MA) Fitting Position Rear Axle | 2005-01 - 2008-12 | 59 | 80 | 1229 | Hatchback |
24.0220-0045.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Opel
Suzuki - Handelsnummer
- 480189
- Herkunftsland
- China
- Zusätzliche Informationen
- ohne ABS-Sensorring
ohne Radlager - Höhe
- 75,5
- Außendurchmesser [mm]
- 232,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 52,0
- Innendurchmesser [mm]
- 200,0
- Gewindegröße
- M12x1,5
- Max. Bohrende Dimension [mm]
- 202,0
- Innenhöhe der Bremstrommel [mm]
- 38,0
- Innendurchmesser der Bremstrommel [mm]
- 47,0
Spezifische Referenzen
- ean13
- 4006633285605
- Hersteller-Teilenummer (MPN)
- 2402200045102
ATE 24.0220-0045.1
(240220-00451)
- Außendurchmesser [mm]: 232,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 52,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480189
