ATE Original-2-teilige Bremstrommel (24022030511) für Hyundai, Kia
search
  • ATE Original-2-teilige Bremstrommel (24022030511) für Hyundai, Kia
  • ATE Original-2-teilige Bremstrommel (24022030511) für Hyundai, Kia

ATE Original-2-teilige Bremstrommel (24022030511) für Hyundai, Kia

159,72 € (inkl. MwSt.)

132,00 € Steuerexzl.

Teilenummer:

ATE 24.0220-3051.1
(240220-30511)

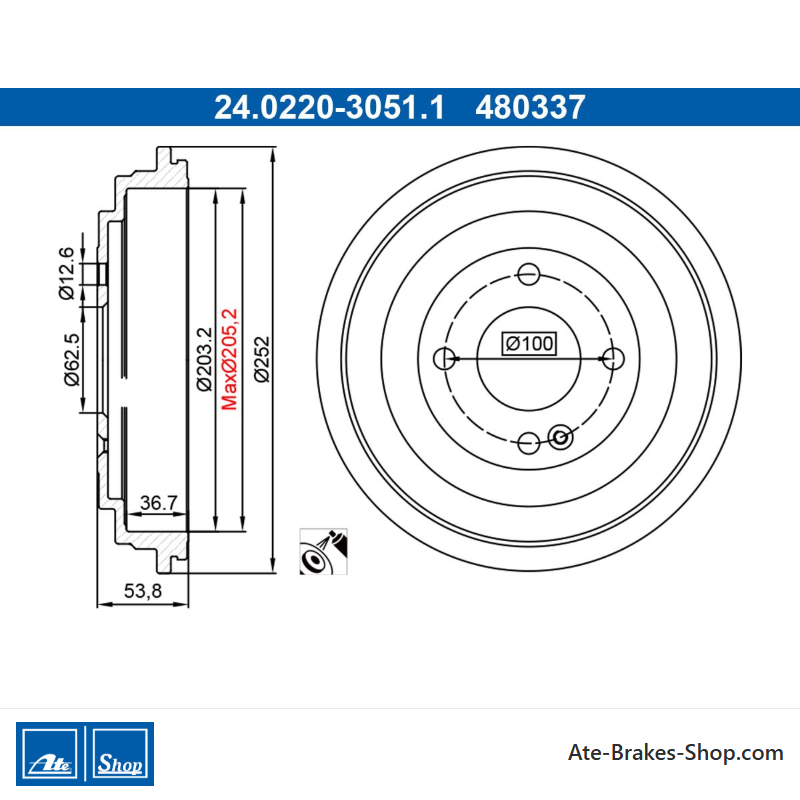

  • Außendurchmesser [mm]: 252,0
  • Innendurchmesser [mm]: 203,2
  • Trägerplattendurchmesser [mm]: 62,5
  • Anzahl der Bolzenlöcher: 4
  • 2 Teile der Bremstrommel
  • Handelsnummer: 480337
  • Ean-Code: 4006633507226
  • Gewicht: 8.98kg
Menge

Specification of ATE 24.0220-3051.1 / 240220-30511 / 24022030511:

OE NumberReference info
HYUNDAI 58411-0U000Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
HYUNDAI 58411-0U000DSPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
KIA 58411-0U000DSPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
KIA 58411-0U000Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
HYUNDAI ACCENT IV Saloon (RB)

Fitting Position Rear Axle		2010-11 -741011368Saloon
HYUNDAI ACCENT IV Saloon (RB)

Fitting Position Rear Axle		2010-11 - 2017-12801091396Saloon
HYUNDAI ACCENT IV Saloon (RB)

Fitting Position Rear Axle		2010-11 -901221591Saloon
HYUNDAI ACCENT IV Saloon (RB)

Fitting Position Rear Axle		2010-11 - 2017-12911231591Saloon
HYUNDAI ACCENT IV Saloon (RB)

Construction Year from 201110

Fitting Position Rear Axle		2010-11 - 2017-12941281582Saloon
HYUNDAI ACCENT IV Saloon (RB)

Fitting Position Rear Axle		2011-04 - 2017-121001361582Saloon
HYUNDAI ACCENT V Saloon (HC)

Fitting Position Rear Axle		2018-07 -73991368Saloon
HYUNDAI SOLARIS Saloon (HCR, HCI)

Fitting Position Rear Axle		2017-01 -901221591Saloon
KIA RIO III Saloon (UB)

Fitting Position Rear Axle		2012-06 - 2017-12901231591Saloon
KIA RIO IV Saloon (SC, FB)

Fitting Position Rear Axle		2017-07 -901231591Saloon
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2017-01 -74101998Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2020-08 - 2023-0474101998Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2017-01 -88120998Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2020-08 - 2023-0488120998Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2020-05 -60821197Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2020-05 -62841197Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2019-05 -60821248Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2017-01 -62841248Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2017-01 -73991368Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2017-01 -57781396Hatchback
KIA RIO IV (YB, SC, FB)

Fitting Position Rear Axle		2017-01 -66901396Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2018-08 -74101998Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2021-01 -74101998Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2017-07 - 2025-1288120998Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2024-04 - 2025-1258791197Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2017-07 - 2025-1262841248Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2018-11 - 2025-1271971368Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2017-07 - 2025-1273991368Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2017-07 - 2025-12811101582Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2018-08 - 2025-12851161598Hatchback
KIA STONIC (YB)

Fitting Position Rear Axle		2018-08 - 2025-121001361598Hatchback
KIA RIO IV Hatchback Van (YB, SC, FB)

Fitting Position Rear Axle		2017-01 -74101998Hatchback Van
KIA RIO IV Hatchback Van (YB, SC, FB)

Fitting Position Rear Axle		2017-01 -88120998Hatchback Van
KIA STONIC Hatchback Van (YB)

Fitting Position Rear Axle		2018-08 -74101998Hatchback Van
KIA STONIC Hatchback Van (YB)

Fitting Position Rear Axle		2017-07 -88120998Hatchback Van
KIA STONIC Hatchback Van (YB)

Fitting Position Rear Axle		2018-08 -851161598Hatchback Van
24.0220-3051.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Hyundai
Kia
Handelsnummer
480337
Herkunftsland
China
Höhe
53,8
Außendurchmesser [mm]
252,0
Oberfläche
Gemalt
Anzahl der Schraublöcher
4
Bolzenlochdurchmesser [mm]
100,0
Trägerplattendurchmesser [mm]
62,5
Innendurchmesser [mm]
203,2
Bohrdurchmesser [mm]
12,6
Max. Bohrende Dimension [mm]
205,2
Innenhöhe der Bremstrommel [mm]
36,7

Spezifische Referenzen

ean13
4006633507226
Hersteller-Teilenummer (MPN)
2402203051102
