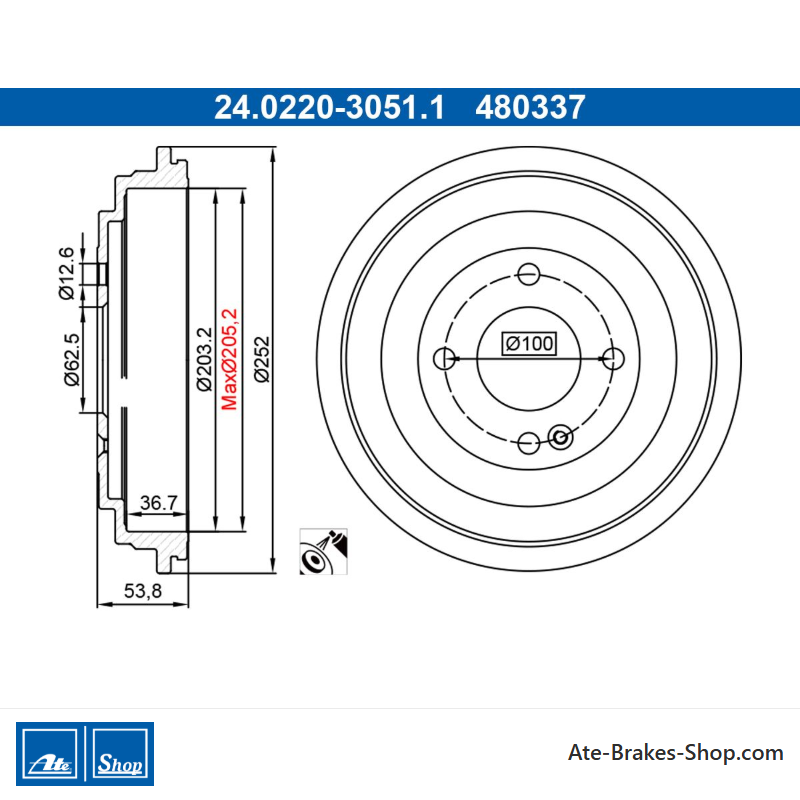

ATE Caisse de frein originale en deux pièces (24022030511) pour Hyundai, Kia
159,72 €
TTC
132,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0220-3051.1
(240220-30511)
- Diamètre extérieur [mm] : 252,0
- Diamètre intérieur [mm] : 203,2
- Diamètre de la plaque de support [mm] : 62,5
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de l’échange : 480337
- Code Ean : 4006633507226
- Poids : 8.98kg
Specification of ATE 24.0220-3051.1 / 240220-30511 / 24022030511:
| OE Number | Reference info |
| HYUNDAI 58411-0U000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 58411-0U000DS | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-0U000DS | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-0U000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI ACCENT IV Saloon (RB) Fitting Position Rear Axle | 2010-11 - | 74 | 101 | 1368 | Saloon |
| HYUNDAI ACCENT IV Saloon (RB) Fitting Position Rear Axle | 2010-11 - 2017-12 | 80 | 109 | 1396 | Saloon |
| HYUNDAI ACCENT IV Saloon (RB) Fitting Position Rear Axle | 2010-11 - | 90 | 122 | 1591 | Saloon |
| HYUNDAI ACCENT IV Saloon (RB) Fitting Position Rear Axle | 2010-11 - 2017-12 | 91 | 123 | 1591 | Saloon |
| HYUNDAI ACCENT IV Saloon (RB) Construction Year from 201110 Fitting Position Rear Axle | 2010-11 - 2017-12 | 94 | 128 | 1582 | Saloon |
| HYUNDAI ACCENT IV Saloon (RB) Fitting Position Rear Axle | 2011-04 - 2017-12 | 100 | 136 | 1582 | Saloon |
| HYUNDAI ACCENT V Saloon (HC) Fitting Position Rear Axle | 2018-07 - | 73 | 99 | 1368 | Saloon |
| HYUNDAI SOLARIS Saloon (HCR, HCI) Fitting Position Rear Axle | 2017-01 - | 90 | 122 | 1591 | Saloon |
| KIA RIO III Saloon (UB) Fitting Position Rear Axle | 2012-06 - 2017-12 | 90 | 123 | 1591 | Saloon |
| KIA RIO IV Saloon (SC, FB) Fitting Position Rear Axle | 2017-07 - | 90 | 123 | 1591 | Saloon |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2017-01 - | 74 | 101 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2020-08 - 2023-04 | 74 | 101 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2017-01 - | 88 | 120 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2020-08 - 2023-04 | 88 | 120 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2020-05 - | 60 | 82 | 1197 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2020-05 - | 62 | 84 | 1197 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2019-05 - | 60 | 82 | 1248 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2017-01 - | 62 | 84 | 1248 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2017-01 - | 73 | 99 | 1368 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2017-01 - | 57 | 78 | 1396 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Rear Axle | 2017-01 - | 66 | 90 | 1396 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2018-08 - | 74 | 101 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2021-01 - | 74 | 101 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2017-07 - 2025-12 | 88 | 120 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2024-04 - 2025-12 | 58 | 79 | 1197 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2017-07 - 2025-12 | 62 | 84 | 1248 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2018-11 - 2025-12 | 71 | 97 | 1368 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2017-07 - 2025-12 | 73 | 99 | 1368 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2017-07 - 2025-12 | 81 | 110 | 1582 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2018-08 - 2025-12 | 85 | 116 | 1598 | Hatchback |
| KIA STONIC (YB) Fitting Position Rear Axle | 2018-08 - 2025-12 | 100 | 136 | 1598 | Hatchback |
| KIA RIO IV Hatchback Van (YB, SC, FB) Fitting Position Rear Axle | 2017-01 - | 74 | 101 | 998 | Hatchback Van |
| KIA RIO IV Hatchback Van (YB, SC, FB) Fitting Position Rear Axle | 2017-01 - | 88 | 120 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Rear Axle | 2018-08 - | 74 | 101 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Rear Axle | 2017-07 - | 88 | 120 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Rear Axle | 2018-08 - | 85 | 116 | 1598 | Hatchback Van |
24.0220-3051.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Hyundai
Kia - Numéro de trade
- 480337
- Pays d’origine
- Chine
- Hauteur
- 53,8
- Diamètre extérieur [mm]
- 252,0
- Surface
- peint
- Nombre de trous de boulons
- 4
- Diamètre du trou de boulon [mm]
- 100,0
- Diamètre de la plaque de support [mm]
- 62,5
- Diamètre intérieur [mm]
- 203,2
- Diamètre du canon [mm]
- 12,6
- Max. Dimension de réalésage [mm]
- 205,2
- Hauteur intérieure du tambour de frein [mm]
- 36,7
Références spécifiques
- EAN-13
- 4006633507226
- MPN
- 2402203051102
ATE 24.0220-3051.1
(240220-30511)
- Diamètre extérieur [mm] : 252,0
- Diamètre intérieur [mm] : 203,2
- Diamètre de la plaque de support [mm] : 62,5
- Nombre de trous de boulon : 4
- 2 pièces de tambour de frein
- Numéro de l’échange : 480337
