ATE Original-2-teilige Bremstrommel (24022200061) für Suzuki
87,12 €
(inkl. MwSt.)
72,00 € Steuerexzl.
Teilenummer:
ATE 24.0222-0006.1
(240222-00061)
- Außendurchmesser [mm]: 262,1
- Innendurchmesser [mm]: 220,0
- Trägerplattendurchmesser [mm]: 62,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480335
- Ean-Code: 4006633509121
- Gewicht: 16.22kg
Specification of ATE 24.0222-0006.1 / 240222-00061 / 24022200061:
| OE Number | Reference info |
| SUZUKI 43511-80J00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-80J01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2006-06 - 2010-07 | 73 | 99 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2007-07 - 2015-12 | 81 | 110 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2006-06 - | 107 | 146 | 1995 | Hatchback |
| SUZUKI SX4 Saloon (GY, RW) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2007-10 - | 79 | 107 | 1586 | Saloon |
| SUZUKI SX4 Saloon (GY, RW) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2007-10 - | 88 | 120 | 1586 | Saloon |

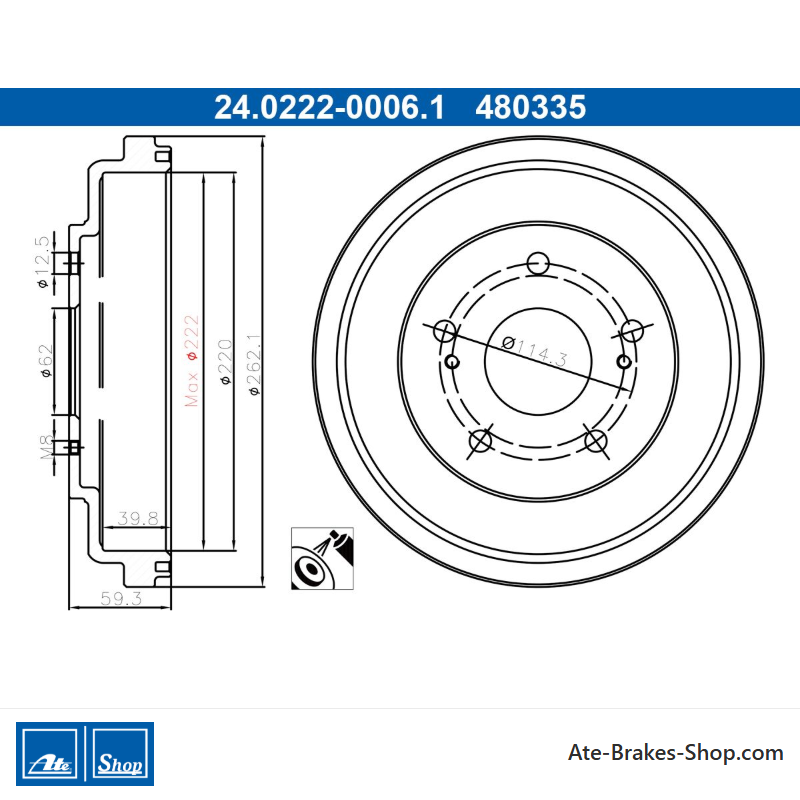

24.0222-0006.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Suzuki
- Handelsnummer
- 480335
- Herkunftsland
- Tschechien
- Höhe
- 59,3
- Außendurchmesser [mm]
- 262,1
- Oberfläche
- Gemalt
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Trägerplattendurchmesser [mm]
- 62,0
- Innendurchmesser [mm]
- 220,0
- Bohrdurchmesser [mm]
- 12,6
- Max. Bohrende Dimension [mm]
- 222,0
- Innenhöhe der Bremstrommel [mm]
- 39,8
Spezifische Referenzen
- ean13
- 4006633509121
- Hersteller-Teilenummer (MPN)
- 2402220006102
ATE 24.0222-0006.1
(240222-00061)
- Außendurchmesser [mm]: 262,1
- Innendurchmesser [mm]: 220,0
- Trägerplattendurchmesser [mm]: 62,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480335
