ATE Originele 2-delige remtrommel (24022200061) voor Suzuki
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0222-0006.1
(240222-00061)
- Buitendiameter [mm]: 262,1
- Binnendiameter [mm]: 220,0
- Draagplaat diameter [mm]: 62,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480335
- Ean Code: 4006633509121
- Gewicht: 16.22kg
Specification of ATE 24.0222-0006.1 / 240222-00061 / 24022200061:
| OE Number | Reference info |
| SUZUKI 43511-80J00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-80J01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2006-06 - 2010-07 | 73 | 99 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2007-07 - 2015-12 | 81 | 110 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Rear Axle | 2006-06 - | 107 | 146 | 1995 | Hatchback |
| SUZUKI SX4 Saloon (GY, RW) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2007-10 - | 79 | 107 | 1586 | Saloon |
| SUZUKI SX4 Saloon (GY, RW) Vehicle Production Country Japan Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2007-10 - | 88 | 120 | 1586 | Saloon |

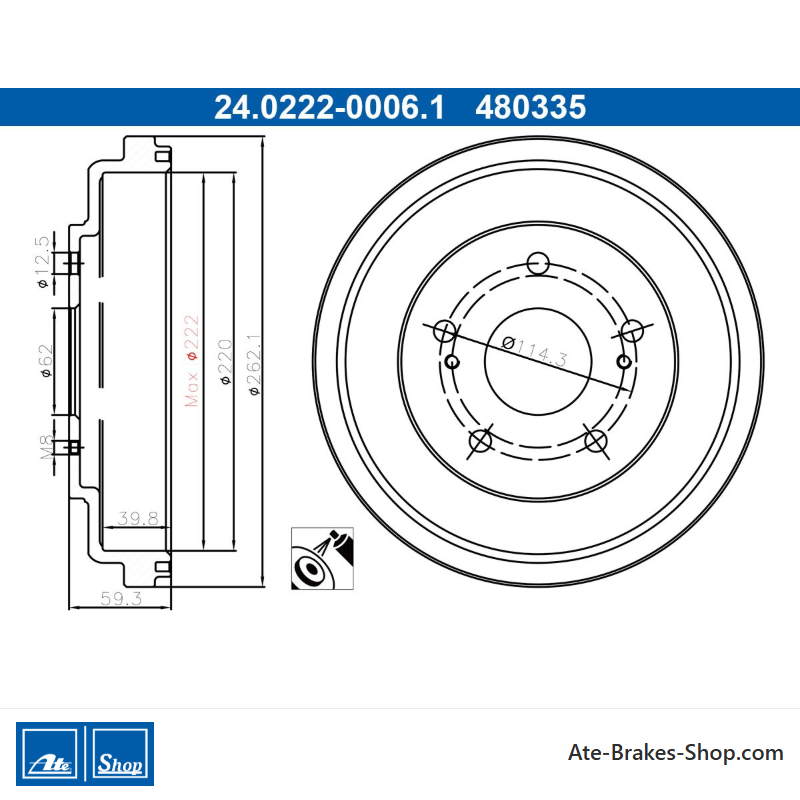

24.0222-0006.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Suzuki
- Handelsnummer
- 480335
- Land van Herkomst
- Tsjechië
- Hoogte
- 59,3
- Buitendiameter [mm]
- 262,1
- Oppervlakte
- geschilderd
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Diameter van de ondersteuningsplaat [mm]
- 62,0
- Binnendiameter [mm]
- 220,0
- Bordiameter [mm]
- 12,6
- Max. Afborende Dimensie [mm]
- 222,0
- Binnenhoogte van de remtrommel [mm]
- 39,8
Specifieke referenties
- ean13
- 4006633509121
- MPN
- 2402220006102
ATE 24.0222-0006.1
(240222-00061)
- Buitendiameter [mm]: 262,1
- Binnendiameter [mm]: 220,0
- Draagplaat diameter [mm]: 62,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480335
