ATE Original-2-teilige Bremstrommel (24022280471) für Ford
search
  • ATE Original-2-teilige Bremstrommel (24022280471) für Ford
  • ATE Original-2-teilige Bremstrommel (24022280471) für Ford

ATE Original-2-teilige Bremstrommel (24022280471) für Ford

123,42 € (inkl. MwSt.)

102,00 € Steuerexzl.

Teilenummer:

ATE 24.0222-8047.1
(240222-80471)

  • Außendurchmesser [mm]: 271,0
  • Innendurchmesser [mm]: 228,2
  • Trägerplattendurchmesser [mm]: 63,5
  • Anzahl der Bolzenlöcher: 4
  • 2 Teile der Bremstrommel
  • Handelsnummer: 480344
  • Ean-Code: 4006633507370
  • Gewicht: 13.08kg
Menge

Specification of ATE 24.0222-8047.1 / 240222-80471 / 24022280471:

OE NumberReference info
FORD 1833868Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD EY16-1126-AAPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
FORD TOURNEO COURIER B460 MPV

Fitting Position Rear Axle		2014-02 - 2023-1274100998MPV
FORD TOURNEO COURIER B460 MPV

Fitting Position Rear Axle		2014-02 - 2023-1255751499MPV
FORD TOURNEO COURIER B460 MPV

Fitting Position Rear Axle		2015-05 - 2023-1270951499MPV
FORD TOURNEO COURIER B460 MPV

Fitting Position Rear Axle		2018-04 - 2023-12741001499MPV
FORD TOURNEO COURIER B460 MPV

Fitting Position Rear Axle		2014-02 - 2023-1270951560MPV
FORD TRANSIT COURIER B460 MPV

Fitting Position Rear Axle		2014-02 - 2023-1274100998MPV
FORD TRANSIT COURIER B460 MPV

Fitting Position Rear Axle		2014-02 - 2023-1255751499MPV
FORD TRANSIT COURIER B460 MPV

Fitting Position Rear Axle		2015-05 - 2023-1270951499MPV
FORD TRANSIT COURIER B460 MPV

Fitting Position Rear Axle		2018-04 - 2023-12741001499MPV
FORD TRANSIT COURIER B460 MPV

Fitting Position Rear Axle		2014-02 - 2023-1270951560MPV
FORD TRANSIT COURIER B460 Box Body/MPV

Fitting Position Rear Axle		2014-02 - 2023-1274100998Box Body/MPV
FORD TRANSIT COURIER B460 Box Body/MPV

Fitting Position Rear Axle		2014-02 - 2023-1255751499Box Body/MPV
FORD TRANSIT COURIER B460 Box Body/MPV

Fitting Position Rear Axle		2015-05 - 2023-1270951499Box Body/MPV
FORD TRANSIT COURIER B460 Box Body/MPV

Fitting Position Rear Axle		2018-04 - 2023-12741001499Box Body/MPV
FORD TRANSIT COURIER B460 Box Body/MPV

Fitting Position Rear Axle		2014-02 - 2023-1270951560Box Body/MPV

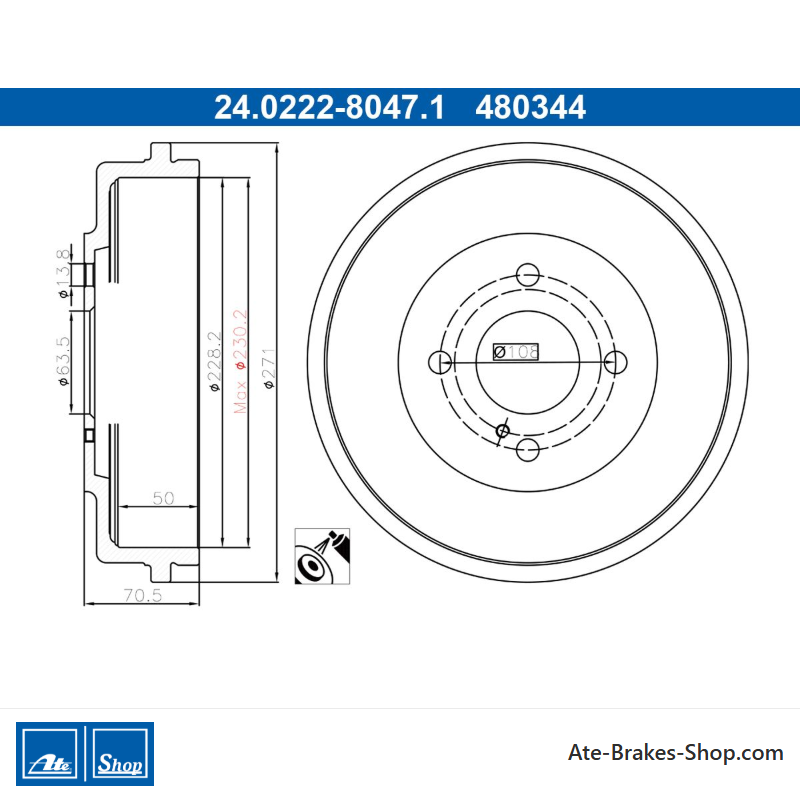

24.0222-8047.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Ford
Handelsnummer
480344
Herkunftsland
China
Höhe
70,5
Außendurchmesser [mm]
271,0
Oberfläche
Gemalt
Anzahl der Schraublöcher
4
Bolzenlochdurchmesser [mm]
108,0
Trägerplattendurchmesser [mm]
63,5
Innendurchmesser [mm]
228,2
Bohrdurchmesser [mm]
13,8
Max. Bohrende Dimension [mm]
230,2
Innenhöhe der Bremstrommel [mm]
50,0

Spezifische Referenzen

ean13
4006633507370
Hersteller-Teilenummer (MPN)
2402228047102
