ATE Originele 2-delige remtrommel (24022280471) voor Ford
€ 123,42
(incl. btw)
€ 102,00 belastingexcl.
Onderdeelnummer:
ATE 24.0222-8047.1
(240222-80471)

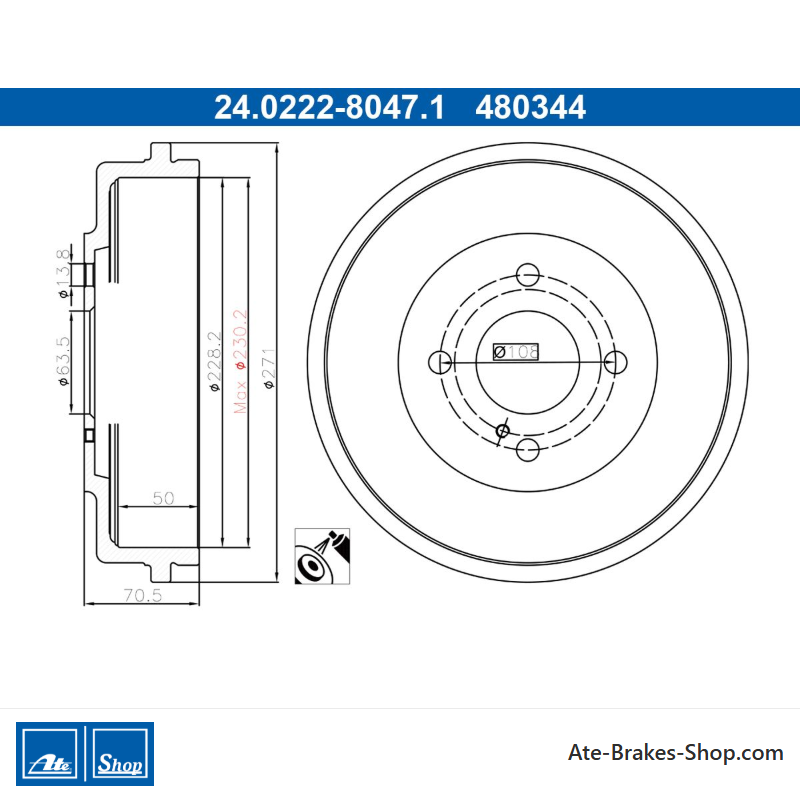

- Buitendiameter [mm]: 271,0
- Binnendiameter [mm]: 228,2
- Draagplaat diameter [mm]: 63,5
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480344
- Ean Code: 4006633507370
- Gewicht: 13.08kg
Specification of ATE 24.0222-8047.1 / 240222-80471 / 24022280471:
| OE Number | Reference info |
| FORD 1833868 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD EY16-1126-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TOURNEO COURIER B460 MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 74 | 100 | 998 | MPV |
| FORD TOURNEO COURIER B460 MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 55 | 75 | 1499 | MPV |
| FORD TOURNEO COURIER B460 MPV Fitting Position Rear Axle | 2015-05 - 2023-12 | 70 | 95 | 1499 | MPV |
| FORD TOURNEO COURIER B460 MPV Fitting Position Rear Axle | 2018-04 - 2023-12 | 74 | 100 | 1499 | MPV |
| FORD TOURNEO COURIER B460 MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 70 | 95 | 1560 | MPV |
| FORD TRANSIT COURIER B460 MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 74 | 100 | 998 | MPV |
| FORD TRANSIT COURIER B460 MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 55 | 75 | 1499 | MPV |
| FORD TRANSIT COURIER B460 MPV Fitting Position Rear Axle | 2015-05 - 2023-12 | 70 | 95 | 1499 | MPV |
| FORD TRANSIT COURIER B460 MPV Fitting Position Rear Axle | 2018-04 - 2023-12 | 74 | 100 | 1499 | MPV |
| FORD TRANSIT COURIER B460 MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 70 | 95 | 1560 | MPV |
| FORD TRANSIT COURIER B460 Box Body/MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 74 | 100 | 998 | Box Body/MPV |
| FORD TRANSIT COURIER B460 Box Body/MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 55 | 75 | 1499 | Box Body/MPV |
| FORD TRANSIT COURIER B460 Box Body/MPV Fitting Position Rear Axle | 2015-05 - 2023-12 | 70 | 95 | 1499 | Box Body/MPV |
| FORD TRANSIT COURIER B460 Box Body/MPV Fitting Position Rear Axle | 2018-04 - 2023-12 | 74 | 100 | 1499 | Box Body/MPV |
| FORD TRANSIT COURIER B460 Box Body/MPV Fitting Position Rear Axle | 2014-02 - 2023-12 | 70 | 95 | 1560 | Box Body/MPV |
24.0222-8047.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
- Handelsnummer
- 480344
- Land van Herkomst
- China
- Hoogte
- 70,5
- Buitendiameter [mm]
- 271,0
- Oppervlakte
- geschilderd
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Diameter van de ondersteuningsplaat [mm]
- 63,5
- Binnendiameter [mm]
- 228,2
- Bordiameter [mm]
- 13,8
- Max. Afborende Dimensie [mm]
- 230,2
- Binnenhoogte van de remtrommel [mm]
- 50,0
Specifieke referenties
- ean13
- 4006633507370
- MPN
- 2402228047102
ATE 24.0222-8047.1
(240222-80471)
- Buitendiameter [mm]: 271,0
- Binnendiameter [mm]: 228,2
- Draagplaat diameter [mm]: 63,5
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480344
