ATE Original-Zweiteilige Bremstrommel (24022300021) für Volkswagen (VW)
116,16 €
(inkl. MwSt.)
96,00 € Steuerexzl.
Teilenummer:
ATE 24.0223-0002.1
(240223-00021)
- Außendurchmesser [mm]: 262,0
- Innendurchmesser [mm]: 230,0
- Trägerplattendurchmesser [mm]: 52,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480032
- Ean-Code: 4006633057691
- Gewicht: 12.91kg
Specification of ATE 24.0223-0002.1 / 240223-00021 / 24022300021:
| OE Number | Reference info |
| VAG 111 405 615 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 111405615B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 111 405 615 D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 111405615D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW KAEFER Construction Year from 196801 Fitting Position Front Axle | 1960-01 - 1985-12 | 25 | 34 | 1192 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1965-08 - 1970-07 | 27 | 37 | 1285 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1965-08 - 1975-07 | 29 | 40 | 1285 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1970-01 - 1973-01 | 32 | 44 | 1285 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1966-08 - 1973-11 | 32 | 44 | 1493 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1970-07 - 1973-01 | 37 | 50 | 1584 | Saloon |
| VW KAEFER Convertible (15) Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1964-07 - 1970-07 | 29 | 40 | 1285 | Convertible |
| VW KARMANN GHIA Coupe (14, 34) Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1970-07 - 1974-07 | 32 | 44 | 1285 | Coupe |

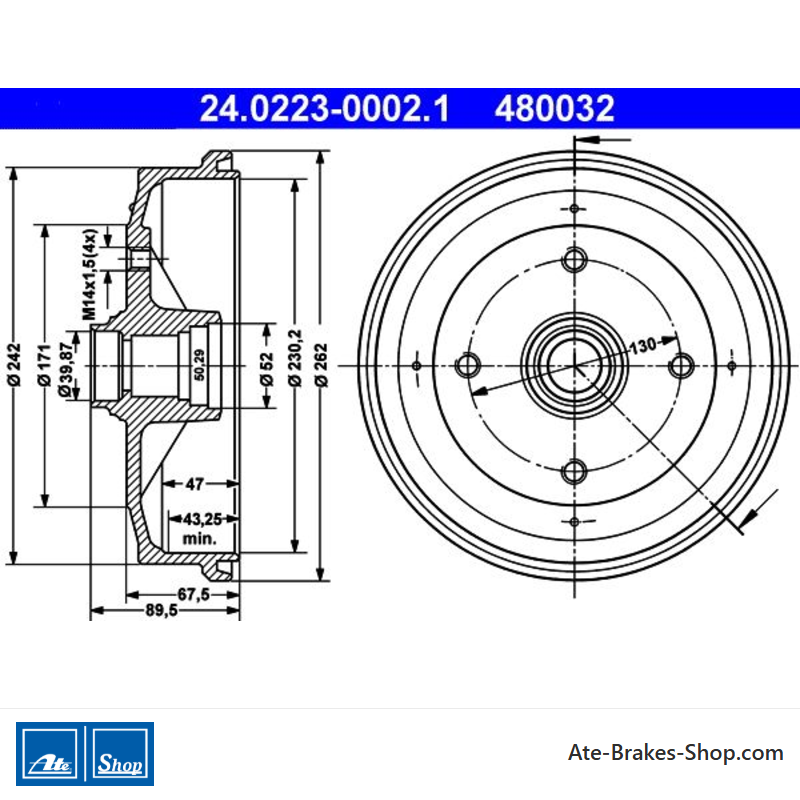

24.0223-0002.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Volkswagen (VW)
- Handelsnummer
- 480032
- Herkunftsland
- Italien
- Zusätzliche Informationen
- ohne Radlager
- Höhe
- 89,5
- Außendurchmesser [mm]
- 262,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 130,0
- Trägerplattendurchmesser [mm]
- 52,0
- Innendurchmesser [mm]
- 230,0
- Gewindegröße
- M14x1,5
- Max. Bohrende Dimension [mm]
- 231,0
- Innenhöhe der Bremstrommel [mm]
- 47,0
- Innendurchmesser der Bremstrommel [mm]
- 39,9
Spezifische Referenzen
- ean13
- 4006633057691
- Hersteller-Teilenummer (MPN)
- 2402230002102
