ATE Originele 2-delige remtrommel (24022300021) voor Volkswagen (VW)
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0223-0002.1
(240223-00021)

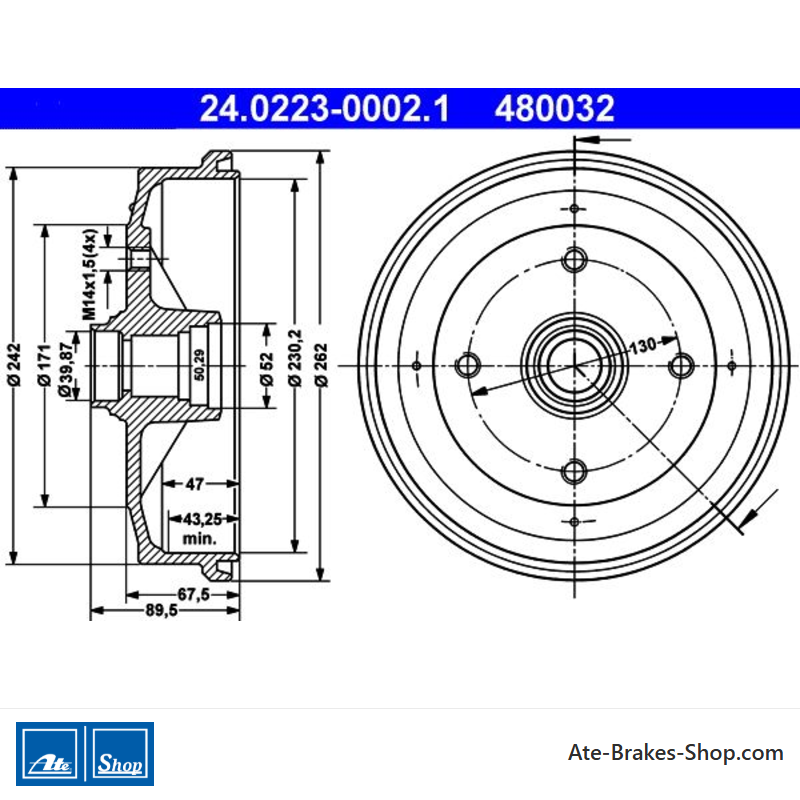

- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 230,0
- Draagplaat diameter [mm]: 52,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480032
- Ean Code: 4006633057691
- Gewicht: 12.91kg
Specification of ATE 24.0223-0002.1 / 240223-00021 / 24022300021:
| OE Number | Reference info |
| VAG 111 405 615 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 111405615B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 111 405 615 D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 111405615D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW KAEFER Construction Year from 196801 Fitting Position Front Axle | 1960-01 - 1985-12 | 25 | 34 | 1192 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1965-08 - 1970-07 | 27 | 37 | 1285 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1965-08 - 1975-07 | 29 | 40 | 1285 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1970-01 - 1973-01 | 32 | 44 | 1285 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1966-08 - 1973-11 | 32 | 44 | 1493 | Saloon |
| VW KAEFER Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1970-07 - 1973-01 | 37 | 50 | 1584 | Saloon |
| VW KAEFER Convertible (15) Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1964-07 - 1970-07 | 29 | 40 | 1285 | Convertible |
| VW KARMANN GHIA Coupe (14, 34) Vehicle Identification Number (VIN) from 118000001 Fitting Position Front Axle | 1970-07 - 1974-07 | 32 | 44 | 1285 | Coupe |
24.0223-0002.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 480032
- Land van Herkomst
- Italië
- Aanvullende informatie
- zonder wiellager
- Hoogte
- 89,5
- Buitendiameter [mm]
- 262,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 130,0
- Diameter van de ondersteuningsplaat [mm]
- 52,0
- Binnendiameter [mm]
- 230,0
- Draadmaat
- M14x1,5
- Max. Afborende Dimensie [mm]
- 231,0
- Binnenhoogte van de remtrommel [mm]
- 47,0
- Remtrommel binnendiameter [mm]
- 39,9
Specifieke referenties
- ean13
- 4006633057691
- MPN
- 2402230002102
