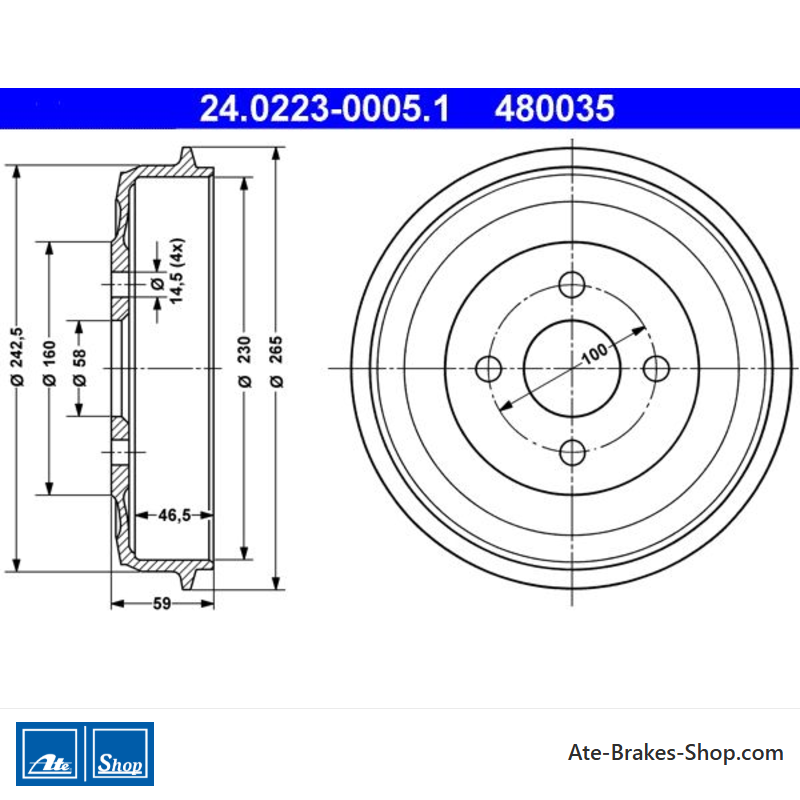

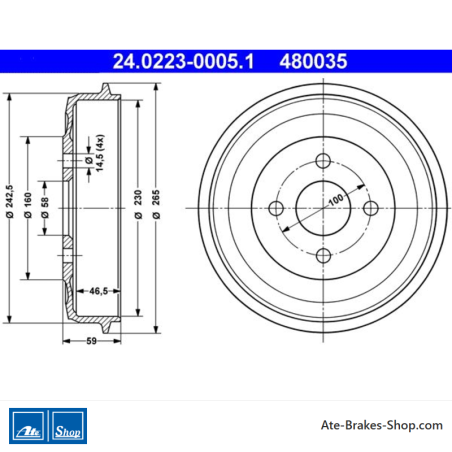

ATE Original-Zweiteilige Bremstrommel (24022300051) für BMW
87,12 €
(inkl. MwSt.)
72,00 € Steuerexzl.
Teilenummer:
ATE 24.0223-0005.1
(240223-00051)
- Außendurchmesser [mm]: 265,0
- Innendurchmesser [mm]: 230,0
- Trägerplattendurchmesser [mm]: 58,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480035
- Ean-Code: 4006633057752
- Gewicht: 8.38kg
Specification of ATE 24.0223-0005.1 / 240223-00051 / 24022300051:
| OE Number | Reference info |
| BMW 34 21 1 101 741 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211101741 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 1500-2000 (115, 116, 118, 121) Construction Year from 196901 Fitting Position Rear Axle | 1968-09 - 1972-07 | 74 | 100 | 1990 | Saloon |
| BMW 1502-2002 (E10) Fitting Position Rear Axle | 1975-01 - 1977-07 | 55 | 75 | 1573 | Saloon |
| BMW 1502-2002 (E10) Fitting Position Rear Axle | 1967-09 - 1969-11 | 77 | 105 | 1573 | Saloon |
| BMW 1502-2002 (E10) Fitting Position Rear Axle | 1971-05 - 1975-07 | 66 | 90 | 1766 | Saloon |
| BMW 1502-2002 (E10) Fitting Position Rear Axle | 1968-02 - 1975-07 | 74 | 100 | 1990 | Saloon |
| BMW 1502-2002 Convertible (E10) Fitting Position Rear Axle | 1971-05 - 1975-07 | 74 | 100 | 1990 | Convertible |
| BMW 1502-2002 Touring (E6) Construction Year from 197301 Fitting Position Rear Axle | 1971-05 - 1975-07 | 66 | 90 | 1766 | Estate |
| BMW 1502-2002 Touring (E6) Construction Year to 197312 Fitting Position Rear Axle | 1971-05 - 1975-07 | 66 | 90 | 1766 | Estate |
| BMW 1502-2002 Touring (E6) Fitting Position Rear Axle | 1971-05 - 1975-07 | 66 | 90 | 1766 | Estate |
| BMW 1502-2002 Touring (E6) Fitting Position Rear Axle | 1971-05 - 1975-07 | 74 | 100 | 1990 | Estate |
24.0223-0005.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- BMW
- Handelsnummer
- 480035
- Herkunftsland
- China
- Höhe
- 59,0
- Außendurchmesser [mm]
- 265,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 58,0
- Innendurchmesser [mm]
- 230,0
- Bohrdurchmesser [mm]
- 14,5
- Max. Bohrende Dimension [mm]
- 231,0
- Innenhöhe der Bremstrommel [mm]
- 46,5
Spezifische Referenzen
- ean13
- 4006633057752
- Hersteller-Teilenummer (MPN)
- 2402230005102
