ATE Originele 2-delige remtrommel (24022300051) voor BMW
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0223-0005.1
(240223-00051)

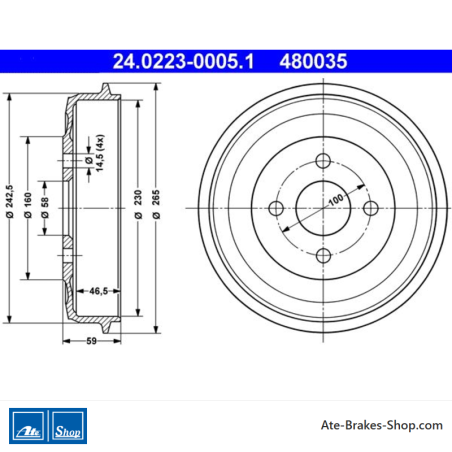

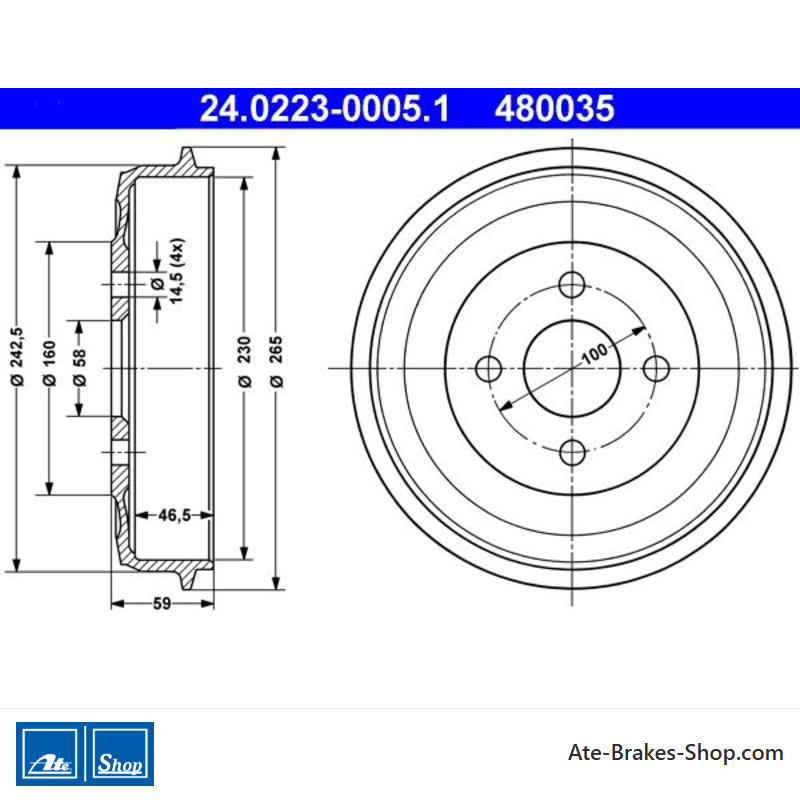

- Buitendiameter [mm]: 265,0
- Binnendiameter [mm]: 230,0
- Draagplaat diameter [mm]: 58,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480035
- Ean Code: 4006633057752
- Gewicht: 8.38kg
Specification of ATE 24.0223-0005.1 / 240223-00051 / 24022300051:
| OE Number | Reference info |
| BMW 34 21 1 101 741 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211101741 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 1500-2000 (115, 116, 118, 121) Construction Year from 196901 Fitting Position Rear Axle | 1968-09 - 1972-07 | 74 | 100 | 1990 | Saloon |
| BMW 1502-2002 (E10) Fitting Position Rear Axle | 1975-01 - 1977-07 | 55 | 75 | 1573 | Saloon |
| BMW 1502-2002 (E10) Fitting Position Rear Axle | 1967-09 - 1969-11 | 77 | 105 | 1573 | Saloon |
| BMW 1502-2002 (E10) Fitting Position Rear Axle | 1971-05 - 1975-07 | 66 | 90 | 1766 | Saloon |
| BMW 1502-2002 (E10) Fitting Position Rear Axle | 1968-02 - 1975-07 | 74 | 100 | 1990 | Saloon |
| BMW 1502-2002 Convertible (E10) Fitting Position Rear Axle | 1971-05 - 1975-07 | 74 | 100 | 1990 | Convertible |
| BMW 1502-2002 Touring (E6) Construction Year from 197301 Fitting Position Rear Axle | 1971-05 - 1975-07 | 66 | 90 | 1766 | Estate |
| BMW 1502-2002 Touring (E6) Construction Year to 197312 Fitting Position Rear Axle | 1971-05 - 1975-07 | 66 | 90 | 1766 | Estate |
| BMW 1502-2002 Touring (E6) Fitting Position Rear Axle | 1971-05 - 1975-07 | 66 | 90 | 1766 | Estate |
| BMW 1502-2002 Touring (E6) Fitting Position Rear Axle | 1971-05 - 1975-07 | 74 | 100 | 1990 | Estate |
24.0223-0005.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 480035
- Land van Herkomst
- China
- Hoogte
- 59,0
- Buitendiameter [mm]
- 265,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 58,0
- Binnendiameter [mm]
- 230,0
- Bordiameter [mm]
- 14,5
- Max. Afborende Dimensie [mm]
- 231,0
- Binnenhoogte van de remtrommel [mm]
- 46,5
Specifieke referenties
- ean13
- 4006633057752
- MPN
- 2402230005102
ATE 24.0223-0005.1
(240223-00051)
- Buitendiameter [mm]: 265,0
- Binnendiameter [mm]: 230,0
- Draagplaat diameter [mm]: 58,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480035
