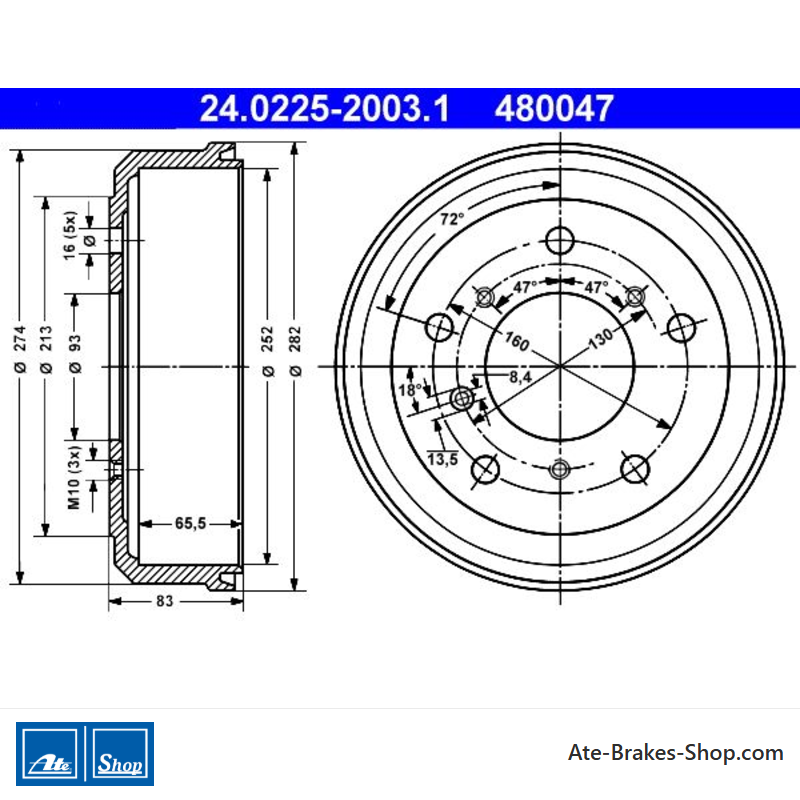

ATE Original-Zweiteilige Bremstrommel (24022520031) für Volkswagen (VW)
130,68 €
(inkl. MwSt.)
108,00 € Steuerexzl.
Teilenummer:
ATE 24.0225-2003.1
(240225-20031)
- Außendurchmesser [mm]: 282,0
- Innendurchmesser [mm]: 252,0
- Trägerplattendurchmesser [mm]: 93,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480047
- Ean-Code: 4006633057974
- Gewicht: 15.36kg
Specification of ATE 24.0225-2003.1 / 240225-20031 / 24022520031:
| OE Number | Reference info |
| VAG 281 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 281609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1989-08 - 1996-06 | 69 | 94 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1989-08 - 1996-06 | 69 | 94 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1990-07 - 1996-05 | 51 | 69 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1990-07 - 1996-05 | 51 | 69 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1979-01 - 1992-07 | 55 | 75 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1979-01 - 1992-07 | 55 | 75 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1988-08 - 1992-08 | 68 | 92 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1988-08 - 1992-08 | 68 | 92 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1992-06 - 1996-05 | 70 | 95 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1992-06 - 1996-05 | 70 | 95 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1986-02 - 1992-08 | 75 | 102 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1986-02 - 1992-08 | 75 | 102 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1975-11 - 1980-01 | 48 | 65 | 2702 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1975-11 - 1980-01 | 48 | 65 | 2702 | Van |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1994-03 - 1996-06 | 69 | 94 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1994-03 - 1996-06 | 69 | 94 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1992-08 - 1994-07 | 70 | 95 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1992-08 - 1994-07 | 70 | 95 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1990-08 - 1996-06 | 51 | 69 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1990-08 - 1996-06 | 51 | 69 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1991-08 - 1992-07 | 51 | 69 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1991-08 - 1992-07 | 51 | 69 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1978-12 - 1991-02 | 55 | 75 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1978-12 - 1991-02 | 55 | 75 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1991-08 - 1992-07 | 55 | 75 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1991-08 - 1992-07 | 55 | 75 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1990-08 - 1992-08 | 68 | 92 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1990-08 - 1992-08 | 68 | 92 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1992-08 - 1996-06 | 70 | 95 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1992-08 - 1996-06 | 70 | 95 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1992-08 - 1996-04 | 70 | 95 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1992-08 - 1996-04 | 70 | 95 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1982-12 - 1993-09 | 75 | 102 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1982-12 - 1993-09 | 75 | 102 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1975-11 - 1980-01 | 48 | 65 | 2702 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1975-11 - 1980-01 | 48 | 65 | 2702 | Platform/Chassis |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1989-08 - 1996-06 | 69 | 94 | 2383 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1989-08 - 1996-06 | 51 | 70 | 2383 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1979-01 - 1992-07 | 55 | 75 | 2383 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1989-08 - 1992-08 | 68 | 92 | 2384 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1992-09 - 1996-06 | 70 | 95 | 2384 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1982-12 - 1989-07 | 75 | 102 | 2384 | Bus |
| VW LT 28-35 II Bus (2DB, 2DE, 2DK) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1997-07 - 2003-05 | 92 | 125 | 2798 | Bus |
24.0225-2003.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Volkswagen (VW)
- Handelsnummer
- 480047
- Herkunftsland
- China
- Höhe
- 83,0
- Außendurchmesser [mm]
- 282,0
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 160,0
- Trägerplattendurchmesser [mm]
- 93,0
- Innendurchmesser [mm]
- 252,0
- Bohrdurchmesser [mm]
- 16,0
- Max. Bohrende Dimension [mm]
- 253,5
- Innenhöhe der Bremstrommel [mm]
- 65,5
Spezifische Referenzen
- ean13
- 4006633057974
- Hersteller-Teilenummer (MPN)
- 2402252003102
ATE 24.0225-2003.1
(240225-20031)
- Außendurchmesser [mm]: 282,0
- Innendurchmesser [mm]: 252,0
- Trägerplattendurchmesser [mm]: 93,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480047
