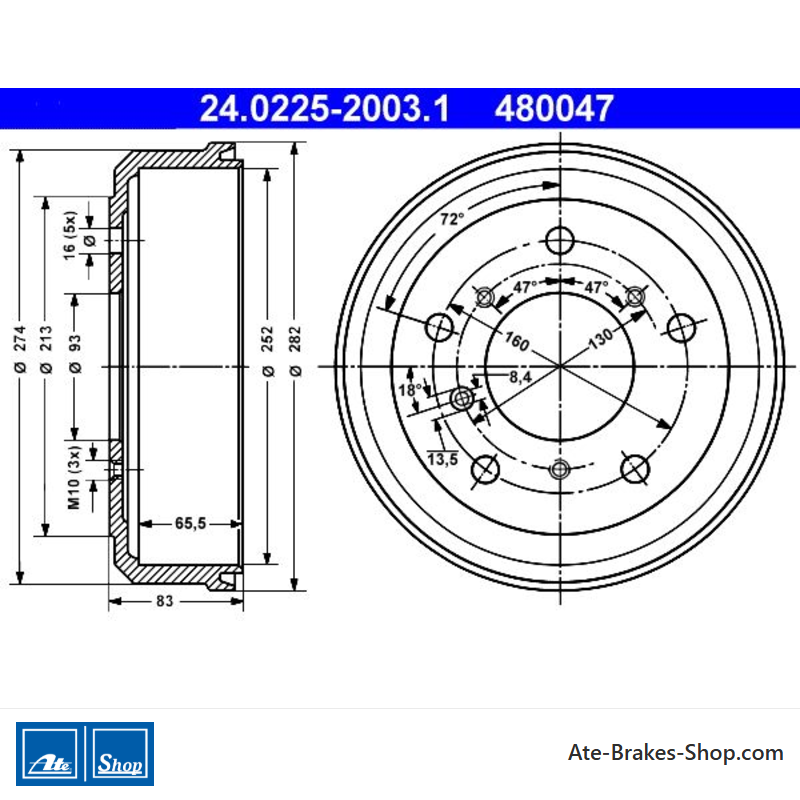

ATE Originele 2-delige remtrommel (24022520031) voor Volkswagen (VW)
€ 130,68
(incl. btw)
€ 108,00 belastingexcl.
Onderdeelnummer:
ATE 24.0225-2003.1
(240225-20031)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 252,0
- Draagplaat diameter [mm]: 93,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480047
- Ean Code: 4006633057974
- Gewicht: 15.36kg
Specification of ATE 24.0225-2003.1 / 240225-20031 / 24022520031:
| OE Number | Reference info |
| VAG 281 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 281609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1989-08 - 1996-06 | 69 | 94 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1989-08 - 1996-06 | 69 | 94 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1990-07 - 1996-05 | 51 | 69 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1990-07 - 1996-05 | 51 | 69 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1979-01 - 1992-07 | 55 | 75 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1979-01 - 1992-07 | 55 | 75 | 2383 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1988-08 - 1992-08 | 68 | 92 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1988-08 - 1992-08 | 68 | 92 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1992-06 - 1996-05 | 70 | 95 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1992-06 - 1996-05 | 70 | 95 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1986-02 - 1992-08 | 75 | 102 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1986-02 - 1992-08 | 75 | 102 | 2384 | Van |
| VW LT 28-35 I Van (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1975-11 - 1980-01 | 48 | 65 | 2702 | Van |
| VW LT 28-35 I Van (281-363) Fitting Position Rear Axle | 1975-11 - 1980-01 | 48 | 65 | 2702 | Van |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1994-03 - 1996-06 | 69 | 94 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1994-03 - 1996-06 | 69 | 94 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1992-08 - 1994-07 | 70 | 95 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1992-08 - 1994-07 | 70 | 95 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1990-08 - 1996-06 | 51 | 69 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1990-08 - 1996-06 | 51 | 69 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1991-08 - 1992-07 | 51 | 69 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1991-08 - 1992-07 | 51 | 69 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1978-12 - 1991-02 | 55 | 75 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1978-12 - 1991-02 | 55 | 75 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1991-08 - 1992-07 | 55 | 75 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1991-08 - 1992-07 | 55 | 75 | 2383 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1990-08 - 1992-08 | 68 | 92 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1990-08 - 1992-08 | 68 | 92 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1992-08 - 1996-06 | 70 | 95 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1992-08 - 1996-06 | 70 | 95 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1992-08 - 1996-04 | 70 | 95 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1992-08 - 1996-04 | 70 | 95 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1982-12 - 1993-09 | 75 | 102 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1982-12 - 1993-09 | 75 | 102 | 2384 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1975-11 - 1980-01 | 48 | 65 | 2702 | Platform/Chassis |
| VW LT 28-35 I Platform/Chassis (281-363) Fitting Position Rear Axle | 1975-11 - 1980-01 | 48 | 65 | 2702 | Platform/Chassis |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1975-04 - 1983-09 | 55 | 75 | 1984 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1982-12 - 1992-07 | 66 | 90 | 2384 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1989-08 - 1996-06 | 69 | 94 | 2383 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1989-08 - 1996-06 | 51 | 70 | 2383 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1979-01 - 1992-07 | 55 | 75 | 2383 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1989-08 - 1992-08 | 68 | 92 | 2384 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1992-09 - 1996-06 | 70 | 95 | 2384 | Bus |
| VW LT 28-35 I Bus (281-363) Fitting Position Rear Axle | 1982-12 - 1989-07 | 75 | 102 | 2384 | Bus |
| VW LT 28-35 II Bus (2DB, 2DE, 2DK) Vehicle Identification Number (VIN) to 29-M-009906 Tyres not for dual tyres Fitting Position Rear Axle | 1997-07 - 2003-05 | 92 | 125 | 2798 | Bus |
24.0225-2003.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 480047
- Land van Herkomst
- China
- Hoogte
- 83,0
- Buitendiameter [mm]
- 282,0
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 160,0
- Diameter van de ondersteuningsplaat [mm]
- 93,0
- Binnendiameter [mm]
- 252,0
- Bordiameter [mm]
- 16,0
- Max. Afborende Dimensie [mm]
- 253,5
- Binnenhoogte van de remtrommel [mm]
- 65,5
Specifieke referenties
- ean13
- 4006633057974
- MPN
- 2402252003102
ATE 24.0225-2003.1
(240225-20031)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 252,0
- Draagplaat diameter [mm]: 93,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480047
