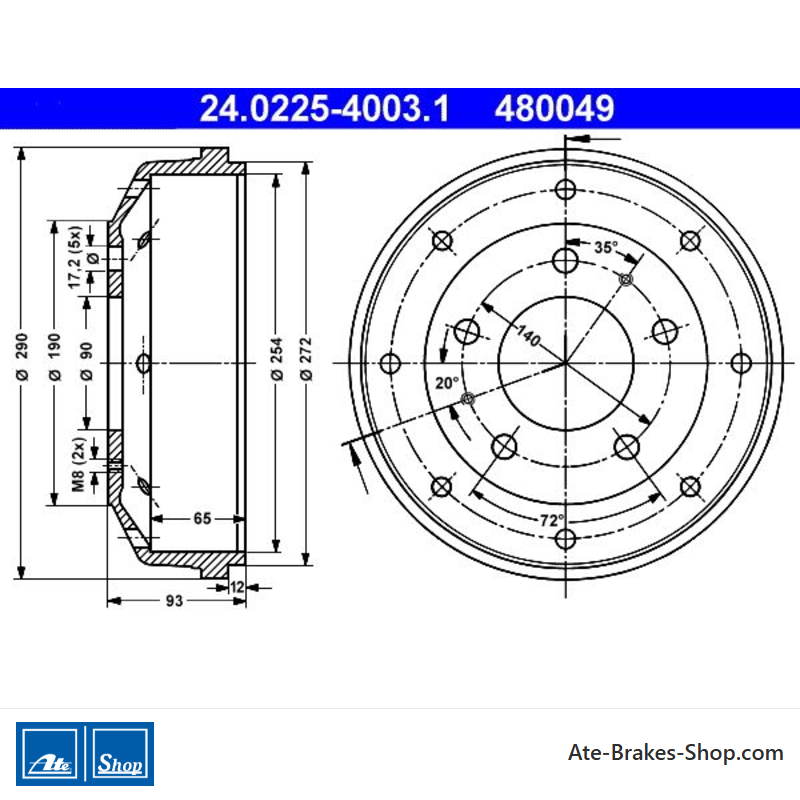

ATE Original zweiteilige Bremstrommel (24022540031) für Mercedes-Benz
130,68 €
(inkl. MwSt.)
108,00 € Steuerexzl.
Teilenummer:
ATE 24.0225-4003.1
(240225-40031)
- Außendurchmesser [mm]: 272,0
- Innendurchmesser [mm]: 254,0
- Trägerplattendurchmesser [mm]: 90,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480049
- Ean-Code: 4006633140706
- Gewicht: 15.25kg
Specification of ATE 24.0225-4003.1 / 240225-40031 / 24022540031:
| OE Number | Reference info |
| MERCEDES-BENZ 631 423 00 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 6314230001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 631 423 00 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 6314230001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ MB Van (W631) Fitting Position Rear Axle | 1988-02 - 1992-05 | 53 | 72 | 2399 | Van |
| MERCEDES-BENZ MB Van (W631) Fitting Position Rear Axle | 1990-12 - 1996-02 | 55 | 75 | 2399 | Van |
| MERCEDES-BENZ MB Bus (W631) Fitting Position Rear Axle | 1990-12 - 1994-12 | 41 | 56 | 2399 | Bus |
| MERCEDES-BENZ MB Bus (W631) Fitting Position Rear Axle | 1988-02 - 1992-05 | 53 | 72 | 2399 | Bus |
| MERCEDES-BENZ MB Bus (W631) Fitting Position Rear Axle | 1990-12 - 1996-02 | 55 | 75 | 2399 | Bus |
24.0225-4003.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mercedes-Benz
- Handelsnummer
- 480049
- Herkunftsland
- China
- Höhe
- 93,0
- Außendurchmesser [mm]
- 272,0
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 140,0
- Trägerplattendurchmesser [mm]
- 90,0
- Innendurchmesser [mm]
- 254,0
- Bohrdurchmesser [mm]
- 17,2
- Max. Bohrende Dimension [mm]
- 255,0
- Innenhöhe der Bremstrommel [mm]
- 65,0
Spezifische Referenzen
- ean13
- 4006633140706
- Hersteller-Teilenummer (MPN)
- 2402254003102
ATE 24.0225-4003.1
(240225-40031)
- Außendurchmesser [mm]: 272,0
- Innendurchmesser [mm]: 254,0
- Trägerplattendurchmesser [mm]: 90,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480049
