ATE Originele 2-delige remtrommel (24022540031) voor Mercedes-Benz
€ 130,68
(incl. btw)
€ 108,00 belastingexcl.
Onderdeelnummer:
ATE 24.0225-4003.1
(240225-40031)
- Buitendiameter [mm]: 272,0
- Binnendiameter [mm]: 254,0
- Draagplaat diameter [mm]: 90,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480049
- Ean Code: 4006633140706
- Gewicht: 15.25kg
Specification of ATE 24.0225-4003.1 / 240225-40031 / 24022540031:
| OE Number | Reference info |
| MERCEDES-BENZ 631 423 00 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 6314230001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 631 423 00 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 6314230001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ MB Van (W631) Fitting Position Rear Axle | 1988-02 - 1992-05 | 53 | 72 | 2399 | Van |
| MERCEDES-BENZ MB Van (W631) Fitting Position Rear Axle | 1990-12 - 1996-02 | 55 | 75 | 2399 | Van |
| MERCEDES-BENZ MB Bus (W631) Fitting Position Rear Axle | 1990-12 - 1994-12 | 41 | 56 | 2399 | Bus |
| MERCEDES-BENZ MB Bus (W631) Fitting Position Rear Axle | 1988-02 - 1992-05 | 53 | 72 | 2399 | Bus |
| MERCEDES-BENZ MB Bus (W631) Fitting Position Rear Axle | 1990-12 - 1996-02 | 55 | 75 | 2399 | Bus |

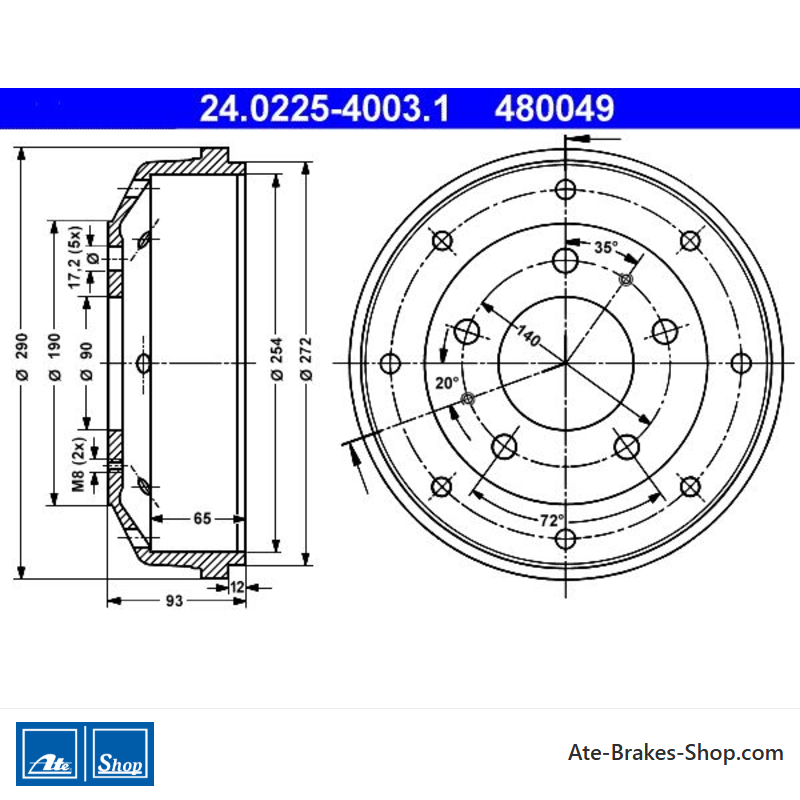

24.0225-4003.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mercedes-Benz
- Handelsnummer
- 480049
- Land van Herkomst
- China
- Hoogte
- 93,0
- Buitendiameter [mm]
- 272,0
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 140,0
- Diameter van de ondersteuningsplaat [mm]
- 90,0
- Binnendiameter [mm]
- 254,0
- Bordiameter [mm]
- 17,2
- Max. Afborende Dimensie [mm]
- 255,0
- Binnenhoogte van de remtrommel [mm]
- 65,0
Specifieke referenties
- ean13
- 4006633140706
- MPN
- 2402254003102
ATE 24.0225-4003.1
(240225-40031)
- Buitendiameter [mm]: 272,0
- Binnendiameter [mm]: 254,0
- Draagplaat diameter [mm]: 90,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480049
