ATE Original-Bremstrommel (24022800011) für Ford
206,91 €
(inkl. MwSt.)
171,00 € Steuerexzl.
Teilenummer:
ATE 24.0228-0001.1
(240228-00011)

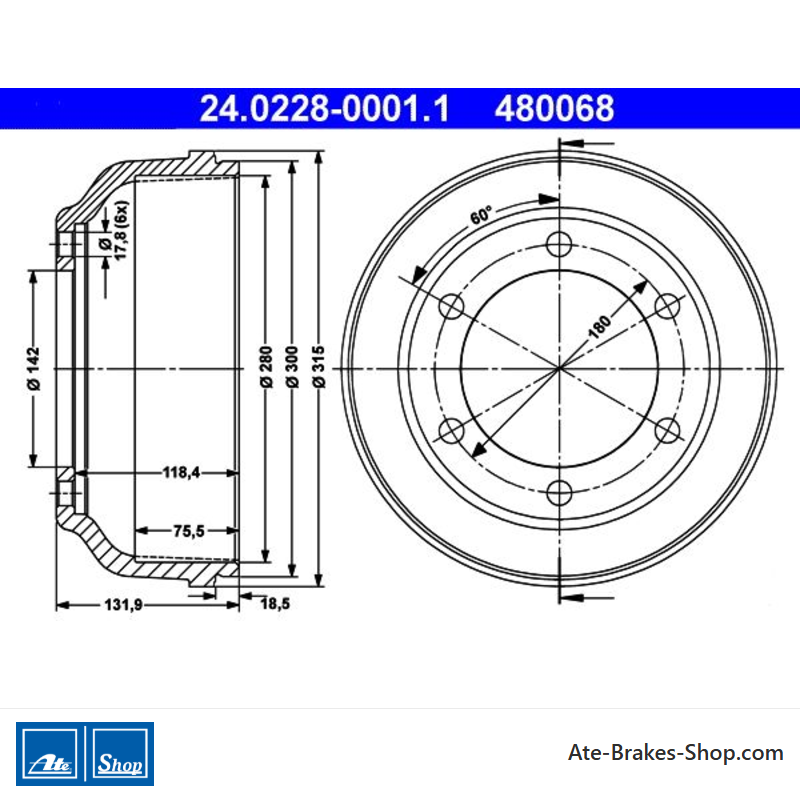

- Außendurchmesser [mm]: 315,0
- Innendurchmesser [mm]: 280,0
- Trägerplattendurchmesser [mm]: 142,0
- Anzahl der Bolzenlöcher: 6
- Handelsnummer: 480068
- Ean-Code: 4006633302968
- Gewicht: 13.93kg
Specification of ATE 24.0228-0001.1 / 240228-00011 / 24022800011:
| OE Number | Reference info |
| FORD 6198026 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-09 | 66 | 90 | 1993 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-07 | 72 | 98 | 1994 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year to 199408 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-01 - 1994-09 | 107 | 145 | 2935 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-08 - 1994-07 | 51 | 70 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-07 | 59 | 80 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1992-10 - 1994-07 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-07 | 74 | 100 | 2496 | Bus |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-08 | 72 | 98 | 1994 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-08 | 51 | 69 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-08 | 59 | 80 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1992-11 - 1994-08 | 63 | 85 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-08 | 74 | 100 | 2496 | Platform/Chassis |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-06 | 66 | 90 | 1993 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-06 | 72 | 98 | 1994 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-05 - 1994-06 | 51 | 70 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-05 - 1994-06 | 59 | 80 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1992-10 - 1994-06 | 63 | 85 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-05 - 1994-06 | 74 | 101 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 84 | 114 | 1998 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 51 | 69 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 55 | 75 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 56 | 76 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 63 | 85 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 74 | 101 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1999-05 - 2000-03 | 85 | 116 | 2496 | Van |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year from 199407 Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 51 | 69 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 51 | 69 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-06 | 55 | 75 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year to 200003 Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-06 | 55 | 75 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-07 - 2000-03 | 56 | 76 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1994-07 - 2000-03 | 56 | 76 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1995-01 - 2000-03 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1995-01 - 2000-03 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-07 - 2000-03 | 74 | 100 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1994-07 - 2000-03 | 74 | 100 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1997-08 - 2000-03 | 85 | 116 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1997-08 - 2000-03 | 85 | 116 | 2496 | Bus |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 84 | 114 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 51 | 69 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 56 | 76 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 63 | 85 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 74 | 101 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1999-05 - 2000-03 | 85 | 116 | 2496 | Platform/Chassis |
| FORD TRANSIT TOURNEO Bus Construction Year from 199509 Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-11 - 2000-12 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-06 | 55 | 74 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-11 - 2000-12 | 51 | 69 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-11 - 2000-12 | 56 | 76 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year from 199501 Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-11 - 2000-12 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1998-04 - 2000-12 | 74 | 100 | 2496 | Bus |
24.0228-0001.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Ford
- Handelsnummer
- 480068
- Herkunftsland
- China
- Höhe
- 131,9
- Außendurchmesser [mm]
- 315,0
- Anzahl der Schraublöcher
- 6
- Bolzenlochdurchmesser [mm]
- 180,0
- Trägerplattendurchmesser [mm]
- 142,0
- Innendurchmesser [mm]
- 280,0
- Bohrdurchmesser [mm]
- 17,8
- Max. Bohrende Dimension [mm]
- 282,0
- Innenhöhe der Bremstrommel [mm]
- 75,5
Spezifische Referenzen
- ean13
- 4006633302968
- Hersteller-Teilenummer (MPN)
- 2402280001102
ATE 24.0228-0001.1
(240228-00011)
- Außendurchmesser [mm]: 315,0
- Innendurchmesser [mm]: 280,0
- Trägerplattendurchmesser [mm]: 142,0
- Anzahl der Bolzenlöcher: 6
- Handelsnummer: 480068
