ATE Tambour de frein original (24022800011) pour Ford
206,91 €
TTC
171,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0228-0001.1
(240228-00011)
- Diamètre extérieur [mm] : 315,0
- Diamètre intérieur [mm] : 280,0
- Diamètre de la plaque de support [mm] : 142,0
- Nombre de trous de boulon : 6
- Numéro d’échange : 480068
- Code Ean : 4006633302968
- Poids : 13.93kg
Specification of ATE 24.0228-0001.1 / 240228-00011 / 24022800011:
| OE Number | Reference info |
| FORD 6198026 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-09 | 66 | 90 | 1993 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-07 | 72 | 98 | 1994 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year to 199408 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-01 - 1994-09 | 107 | 145 | 2935 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-08 - 1994-07 | 51 | 70 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-07 | 59 | 80 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1992-10 - 1994-07 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-07 | 74 | 100 | 2496 | Bus |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-08 | 72 | 98 | 1994 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-08 | 51 | 69 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-08 | 59 | 80 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1992-11 - 1994-08 | 63 | 85 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-08 | 74 | 100 | 2496 | Platform/Chassis |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-06 | 66 | 90 | 1993 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-09 - 1994-06 | 72 | 98 | 1994 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-05 - 1994-06 | 51 | 70 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-05 - 1994-06 | 59 | 80 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1992-10 - 1994-06 | 63 | 85 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1991-05 - 1994-06 | 74 | 101 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 84 | 114 | 1998 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 51 | 69 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 55 | 75 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 56 | 76 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 63 | 85 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 74 | 101 | 2496 | Van |
| FORD TRANSIT Van (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1999-05 - 2000-03 | 85 | 116 | 2496 | Van |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year from 199407 Tyres for dual tyres Fitting Position Rear Axle | 1994-06 - 2000-03 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 51 | 69 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 51 | 69 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-06 | 55 | 75 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Construction Year to 200003 Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-06 | 55 | 75 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-07 - 2000-03 | 56 | 76 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1994-07 - 2000-03 | 56 | 76 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1995-01 - 2000-03 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1995-01 - 2000-03 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-07 - 2000-03 | 74 | 100 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1994-07 - 2000-03 | 74 | 100 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1997-08 - 2000-03 | 85 | 116 | 2496 | Bus |
| FORD TRANSIT Bus (E_ _) Tyres for dual tyres Fitting Position Rear Axle | 1997-08 - 2000-03 | 85 | 116 | 2496 | Bus |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 84 | 114 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 51 | 69 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 56 | 76 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 63 | 85 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-03 | 74 | 101 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (E_ _) Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1999-05 - 2000-03 | 85 | 116 | 2496 | Platform/Chassis |
| FORD TRANSIT TOURNEO Bus Construction Year from 199509 Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-11 - 2000-12 | 84 | 114 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Tyres for dual tyres Fitting Position Rear Axle | 1994-08 - 2000-06 | 55 | 74 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-11 - 2000-12 | 51 | 69 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-11 - 2000-12 | 56 | 76 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year from 199501 Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1994-11 - 2000-12 | 63 | 85 | 2496 | Bus |
| FORD TRANSIT TOURNEO Bus Construction Year to 200003 Vehicle type 130/150S/150L Vehicle type 190/190A/190EF Tyres for dual tyres Fitting Position Rear Axle | 1998-04 - 2000-12 | 74 | 100 | 2496 | Bus |

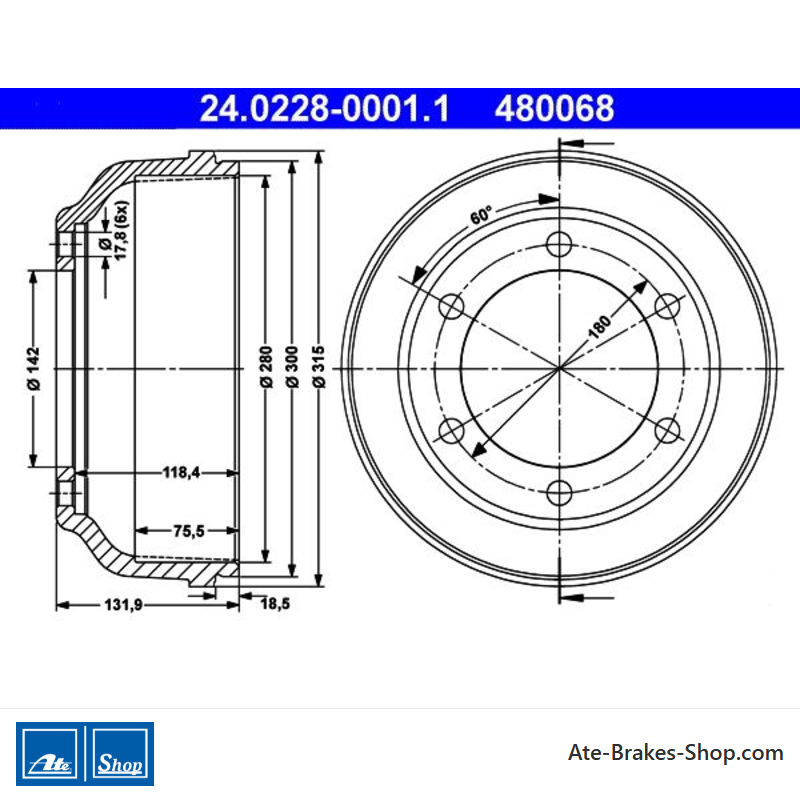

24.0228-0001.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
- Numéro de trade
- 480068
- Pays d’origine
- Chine
- Hauteur
- 131,9
- Diamètre extérieur [mm]
- 315,0
- Nombre de trous de boulons
- 6
- Diamètre du trou de boulon [mm]
- 180,0
- Diamètre de la plaque de support [mm]
- 142,0
- Diamètre intérieur [mm]
- 280,0
- Diamètre du canon [mm]
- 17,8
- Max. Dimension de réalésage [mm]
- 282,0
- Hauteur intérieure du tambour de frein [mm]
- 75,5
Références spécifiques
- EAN-13
- 4006633302968
- MPN
- 2402280001102
ATE 24.0228-0001.1
(240228-00011)
- Diamètre extérieur [mm] : 315,0
- Diamètre intérieur [mm] : 280,0
- Diamètre de la plaque de support [mm] : 142,0
- Nombre de trous de boulon : 6
- Numéro d’échange : 480068
