ATE originale keramische Bremsbeläge (13047073012) für Peugeot

43,56 € (inkl. MwSt.)

36,00 € Steuerexzl.

Teilenummer:

ATE 13.0470-7301.2
(130470-73012)

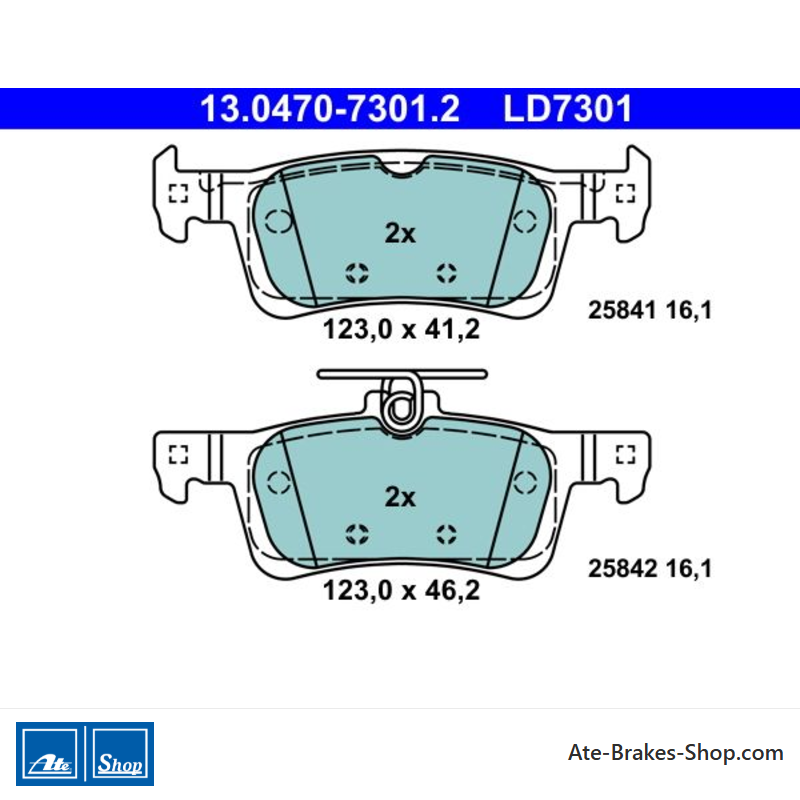

  • Breite 1 [mm]: 123,0, Breite 2 [mm]: 123,0
  • Höhe 1 [mm]: 41,2, Höhe 2 [mm]: 46,2
  • Dicke [mm]: 16,1
  • Verschleißwarnkontakt: nicht auf Verschleißwarnanzeige vorbereitet; ausgenommen Verschleißwarnkontakt;
  • Bremssystem: ATE
  • Handelsnummer: LD7301
  • Ean-Code: 4006633413503
  • Gewicht: 0.88kg
Menge

Specification of ATE 13.0470-7301.2 / 130470-73012 / 13047073012:

OE NumberReference info
PEUGEOT 16 108 141 80Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 1610814180Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Construction Year from 201408

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06811101199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06961311199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06851151587Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06921251598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-061101501598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-061151561598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2015-02 - 2021-061512051598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2018-01 - 2021-061652251598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2018-04 - 2021-06751021499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2017-06 - 2021-06961311499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-0668921560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-04 - 2021-0673991560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06851151560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06881201560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-061101501997Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2017-06 - 2021-061301771997Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Construction Year from 201409

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-06 - 2021-061331811997Estate
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-0660821199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-11 - 2021-06811101199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-11 - 2021-06961311199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-06921251598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-061101501598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-061151561598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-06 - 2021-061201631598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-06 - 2021-061512051598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2018-01 - 2021-061652251598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2015-08 - 2021-061842501598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2018-07 - 2021-061932631598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2015-06 - 2021-062002721598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2018-05 - 2021-06751021499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2017-06 - 2021-06961311499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-0668921560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-04 - 2021-0673991560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-06851151560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-11 - 2021-06881201560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-11 - 2021-061101501997Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2017-06 - 2021-061301771997Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-06 - 2021-061331811997Hatchback
PEUGEOT 308 SW II (LC_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2017-06 - 2021-06961311499Estate Van
PEUGEOT 308 Hatchback Van (LB_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2017-06 - 2021-06961311499Hatchback Van
13.0470-7301.2

Datenblatt

Artikelstatus
Bestellbar
Automarke
Peugeot
Handelsnummer
LD7301
Bremssystem
ATE
Herkunftsland
Italien
Verschleißanzeige
Keine
Nicht enthalten
Nicht vorbereitet
Breite
123,0
Höhe
41,2
46,2
Dicke
16,1
Zulässig bis zur Fahrzeugkapazität
225 kW

Spezifische Referenzen

ean13
4006633413503
Hersteller-Teilenummer (MPN)
1304707301202
