ATE pastillas de freno cerámicas originales (13047073012) para Peugeot
search
  • ATE pastillas de freno cerámicas originales (13047073012) para Peugeot
  • ATE pastillas de freno cerámicas originales (13047073012) para Peugeot
  • ATE pastillas de freno cerámicas originales (13047073012) para Peugeot

ATE pastillas de freno cerámicas originales (13047073012) para Peugeot

43,56 € (impuestos inc.)

36,00 € fiscales excl.

Número de parte:

ATE 13.0470-7301.2
(130470-73012)

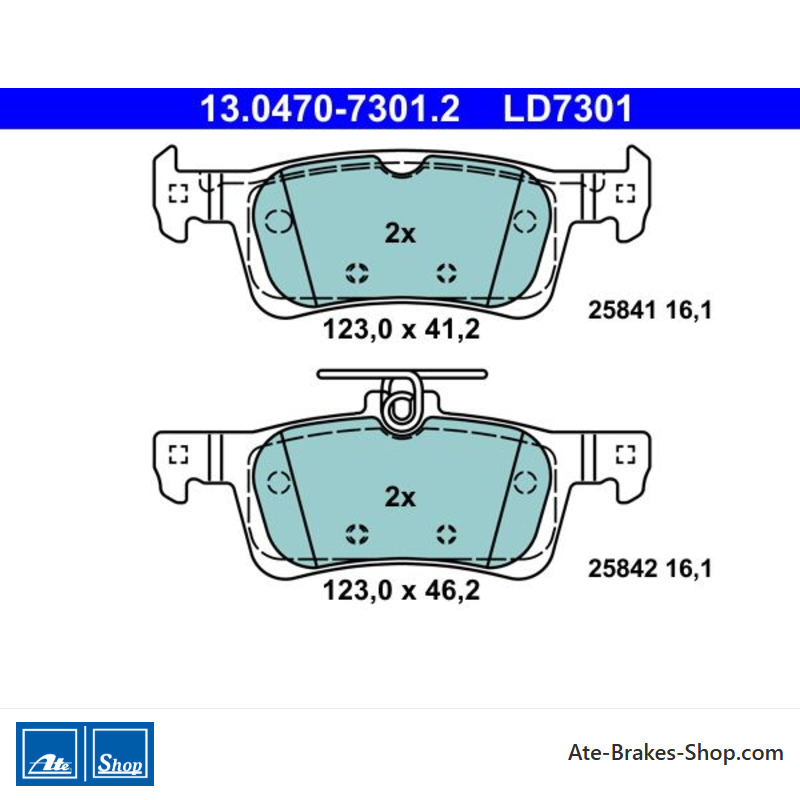

  • Anchura 1 [mm]: 123,0, Anchura 2 [mm]: 123,0
  • Altura 1 [mm]: 41,2, Altura 2 [mm]: 46,2
  • Grosor [mm]: 16,1
  • Contacto de advertencia de desgaste: no preparado para indicador de advertencia de desgaste; excepto contacto de advertencia de desgaste
  • Sistema de frenos: ATE
  • Número comercial: LD7301
  • Código Ean: 4006633413503
  • Peso: 0.88kg
Cantidad

Specification of ATE 13.0470-7301.2 / 130470-73012 / 13047073012:

OE NumberReference info
PEUGEOT 16 108 141 80Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 1610814180Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Construction Year from 201408

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06811101199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06961311199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06851151587Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06921251598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-061101501598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-061151561598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2015-02 - 2021-061512051598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2018-01 - 2021-061652251598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2018-04 - 2021-06751021499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2017-06 - 2021-06961311499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-0668921560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-04 - 2021-0673991560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06851151560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-06881201560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-061101501997Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2017-06 - 2021-061301771997Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Construction Year from 201409

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-06 - 2021-061331811997Estate
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-0660821199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-11 - 2021-06811101199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-11 - 2021-06961311199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-06921251598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-03 - 2021-061101501598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-061151561598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-06 - 2021-061201631598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-06 - 2021-061512051598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2018-01 - 2021-061652251598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2015-08 - 2021-061842501598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2018-07 - 2021-061932631598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2015-06 - 2021-062002721598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2018-05 - 2021-06751021499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2017-06 - 2021-06961311499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-0668921560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-04 - 2021-0673991560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-09 - 2021-06851151560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-11 - 2021-06881201560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2013-11 - 2021-061101501997Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm

Vehicle Equipment for vehicles without electric parking brake		2017-06 - 2021-061301771997Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 249 mm

Fitting Position Rear Axle		2014-06 - 2021-061331811997Hatchback
PEUGEOT 308 SW II (LC_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2017-06 - 2021-06961311499Estate Van
PEUGEOT 308 Hatchback Van (LB_)

Fitting Position Rear Axle

for brake disc diameter [mm] 249 mm		2017-06 - 2021-06961311499Hatchback Van
13.0470-7301.2

Hoja técnica

Estado del artículo
Ordenable
Marca de automóviles
Peugeot
Número de Comercio
LD7301
Sistema de frenos
ATE
País de origen
Italia
Indicador de desgaste
Ninguno
No Preparado
No incluido
Anchura
123,0
Altura
41,2
46,2
Grosor
16,1
Permitido hasta la capacidad del vehículo
225 kW

Referencias específicas

ean13
4006633413503
MPN
1304707301202
