ATE Originale zweiteilige Bremsscheibe (24010901781) für Honda
83,49 €
(inkl. MwSt.)
69,00 € Steuerexzl.
Teilenummer:
ATE 24.0109-0178.1
(240109-01781)
- Außendurchmesser [mm]: 239,0
- Innendurchmesser [mm]: 148,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 409178
Logistische Informationen:
- Ean-Code: 4006633408882
- Gewicht: 5.73kg
Specification of ATE 24.0109-0178.1 / 240109-01781 / 24010901781:
| OE Number | Reference info |
| HONDA 42510-TG5-H00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TF0-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-T5B-950 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TG0-T01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TG0-T00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-T5B-951 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA JAZZ III (GE_, GG_, GP_, ZA_) Construction Year from 200901 Fitting Position Rear Axle | 2008-07 - 2015-12 | 66 | 90 | 1198 | Hatchback |
| HONDA JAZZ III (GE_, GG_, GP_, ZA_) Fitting Position Rear Axle | 2008-07 - 2015-12 | 73 | 100 | 1339 | Hatchback |
| HONDA JAZZ IV (GK_) Fitting Position Rear Axle Construction Year from 201707 | 2015-09 - | 75 | 102 | 1318 | Hatchback |
| HONDA JAZZ IV (GK_) Fitting Position Rear Axle | 2017-09 - | 96 | 130 | 1498 | Hatchback |

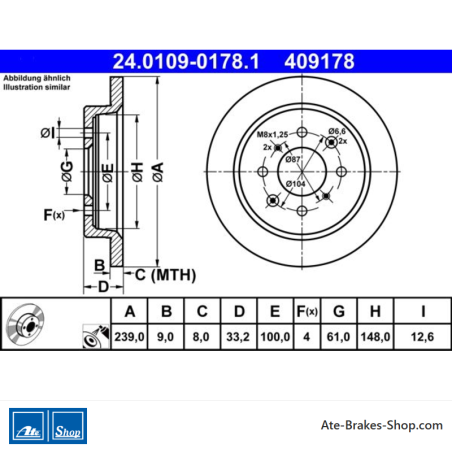

24.0109-0178.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Honda
- Handelsnummer
- 409178
- Herkunftsland
- China
- Höhe
- 33,2
- Außendurchmesser [mm]
- 239,0
- Bremsscheibendicke [mm]
- 9,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 61,0
- Innendurchmesser [mm]
- 148,0
- Bohrdurchmesser [mm]
- 12,6
- Mindestdicke [mm]
- 8,0
Spezifische Referenzen
- ean13
- 4006633408882
- Hersteller-Teilenummer (MPN)
- 2401090178102
ATE 24.0109-0178.1
(240109-01781)
- Außendurchmesser [mm]: 239,0
- Innendurchmesser [mm]: 148,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 409178
