ATE Originele 2-delige remschijf (24010901781) voor Honda
€ 83,49
(incl. btw)
€ 69,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0178.1
(240109-01781)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 148,0
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409178
Logistieke informatie:
- Ean Code: 4006633408882
- Gewicht: 5.73kg

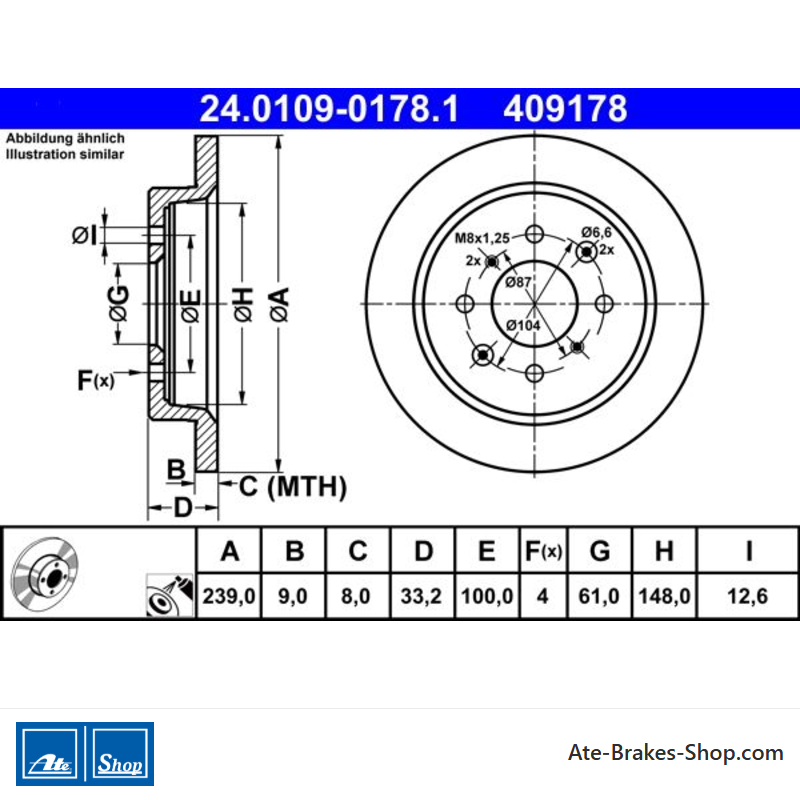

Specification of ATE 24.0109-0178.1 / 240109-01781 / 24010901781:
| OE Number | Reference info |
| HONDA 42510-TG5-H00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TF0-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-T5B-950 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TG0-T01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TG0-T00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-T5B-951 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA JAZZ III (GE_, GG_, GP_, ZA_) Construction Year from 200901 Fitting Position Rear Axle | 2008-07 - 2015-12 | 66 | 90 | 1198 | Hatchback |
| HONDA JAZZ III (GE_, GG_, GP_, ZA_) Fitting Position Rear Axle | 2008-07 - 2015-12 | 73 | 100 | 1339 | Hatchback |
| HONDA JAZZ IV (GK_) Fitting Position Rear Axle Construction Year from 201707 | 2015-09 - | 75 | 102 | 1318 | Hatchback |
| HONDA JAZZ IV (GK_) Fitting Position Rear Axle | 2017-09 - | 96 | 130 | 1498 | Hatchback |
24.0109-0178.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 409178
- Land van Herkomst
- China
- Hoogte
- 33,2
- Buitendiameter [mm]
- 239,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 61,0
- Binnendiameter [mm]
- 148,0
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633408882
- MPN
- 2401090178102
ATE 24.0109-0178.1
(240109-01781)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 148,0
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409178
