ATE Originale 2-teilige Bremsscheibe (24010901821) für Suzuki
90,75 €
(inkl. MwSt.)
75,00 € Steuerexzl.
Teilenummer:
ATE 24.0109-0182.1
(240109-01821)
- Außendurchmesser [mm]: 259,4
- Innendurchmesser [mm]: 146,6
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409182
Logistische Informationen:
- Ean-Code: 4006633415651
- Gewicht: 7.40kg
Specification of ATE 24.0109-0182.1 / 240109-01821 / 24010901821:
| OE Number | Reference info |
| SUZUKI 55611-61M00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-61M20 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-61M21 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-70L00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI S-CROSS Fitting Position Rear Axle Construction Year from 202206 | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Rear Axle Construction Year from 202206 | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Rear Axle Construction Year from 202206 | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI S-CROSS Fitting Position Rear Axle Construction Year from 202206 | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Rear Axle Vehicle Equipment for vehicles without sports package | 2012-01 - 2017-04 | 100 | 136 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2023-08 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2023-08 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-05 - | 86 | 117 | 1586 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-02 - | 88 | 120 | 1598 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-02 - | 88 | 120 | 1598 | SUV |

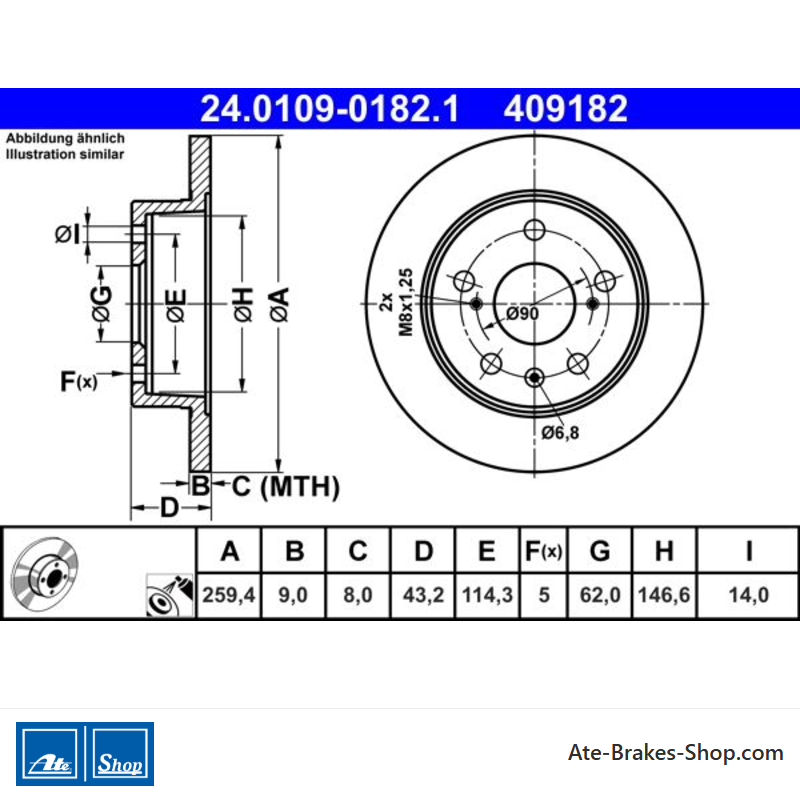

24.0109-0182.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Suzuki
- Handelsnummer
- 409182
- Herkunftsland
- Tschechien
- Höhe
- 43,2
- Außendurchmesser [mm]
- 259,4
- Bremsscheibendicke [mm]
- 9,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 62,0
- Innendurchmesser [mm]
- 146,6
- Bohrdurchmesser [mm]
- 14,0
- Mindestdicke [mm]
- 8,0
Spezifische Referenzen
- ean13
- 4006633415651
- Hersteller-Teilenummer (MPN)
- 2401090182102
ATE 24.0109-0182.1
(240109-01821)
- Außendurchmesser [mm]: 259,4
- Innendurchmesser [mm]: 146,6
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 409182
