ATE Originele 2-delige remschijf (24010901821) voor Suzuki
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0182.1
(240109-01821)
- Buitendiameter [mm]: 259,4
- Binnendiameter [mm]: 146,6
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409182
Logistieke informatie:
- Ean Code: 4006633415651
- Gewicht: 7.40kg
Specification of ATE 24.0109-0182.1 / 240109-01821 / 24010901821:
| OE Number | Reference info |
| SUZUKI 55611-61M00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-61M20 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-61M21 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-70L00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI S-CROSS Fitting Position Rear Axle Construction Year from 202206 | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Rear Axle Construction Year from 202206 | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Rear Axle Construction Year from 202206 | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI S-CROSS Fitting Position Rear Axle Construction Year from 202206 | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Rear Axle Vehicle Equipment for vehicles without sports package | 2012-01 - 2017-04 | 100 | 136 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Rear Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2023-08 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2023-08 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-05 - | 86 | 117 | 1586 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-02 - | 88 | 120 | 1598 | SUV |
| SUZUKI VITARA (LY) Fitting Position Rear Axle | 2015-02 - | 88 | 120 | 1598 | SUV |

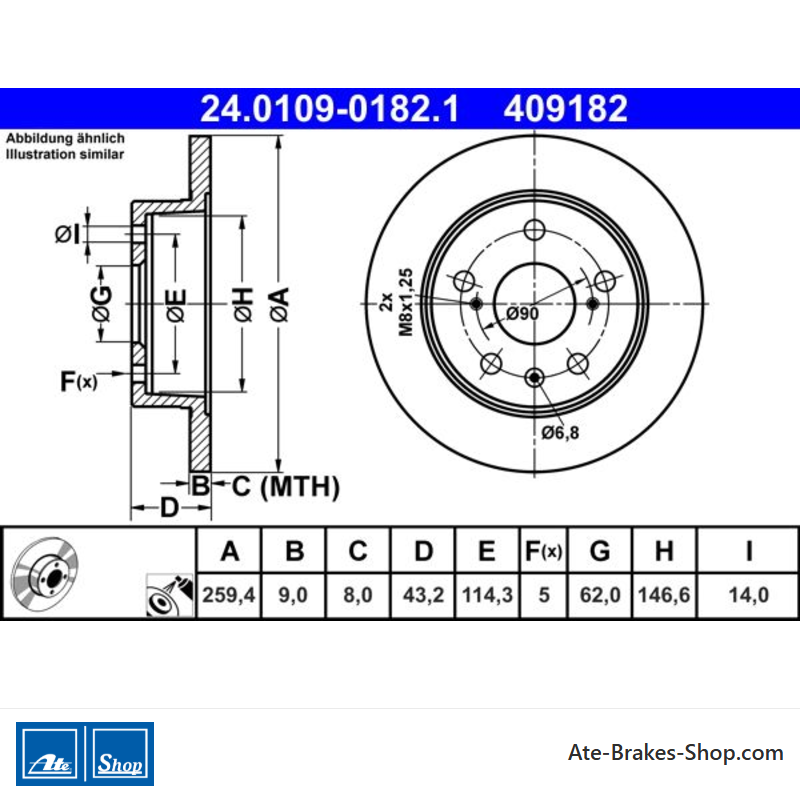

24.0109-0182.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Suzuki
- Handelsnummer
- 409182
- Land van Herkomst
- Tsjechië
- Hoogte
- 43,2
- Buitendiameter [mm]
- 259,4
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 146,6
- Bordiameter [mm]
- 14,0
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633415651
- MPN
- 2401090182102
