ATE Originale zweiteilige Bremsscheibe (24011001541) für Audi
72,60 €
(inkl. MwSt.)
60,00 € Steuerexzl.
Teilenummer:
ATE 24.0110-0154.1
(240110-01541)
- Außendurchmesser [mm]: 245,0
- Innendurchmesser [mm]: 135,8
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 410154
Logistische Informationen:
- Ean-Code: 4006633080934
- Gewicht: 7.40kg
Specification of ATE 24.0110-0154.1 / 240110-01541 / 24011001541:
| OE Number | Reference info |
| VAG 437 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 437615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 100 C3 Saloon (443, 444) Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1982-08 - 1984-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1982-08 - 1984-07 | 79 | 107 | 2144 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198712 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1984-08 - 1988-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198712 Fitting Position Rear Axle | 1986-08 - 1990-11 | 121 | 165 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-08 - 1990-11 | 121 | 165 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1990-01 - 1990-11 | 98 | 133 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-10 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198712 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1986-10 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-10 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1990-01 - 1990-11 | 88 | 120 | 2461 | Saloon |
| AUDI 100 C3 Avant (445, 446) Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1982-08 - 1984-07 | 100 | 136 | 2144 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198712 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198712 Fitting Position Rear Axle | 1986-08 - 1990-11 | 121 | 165 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-08 - 1990-11 | 121 | 165 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1990-03 - 1990-11 | 98 | 133 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198712 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1990-01 - 1990-11 | 88 | 120 | 2461 | Estate |
| AUDI 200 C2 Saloon (437, 438) Fitting Position Rear Axle | 1979-10 - 1982-09 | 100 | 136 | 2144 | Saloon |
| AUDI 200 C2 Saloon (437, 438) Fitting Position Rear Axle | 1979-10 - 1982-08 | 125 | 170 | 2144 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1983-08 - 1984-07 | 100 | 136 | 2144 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1983-08 - 1988-01 | 134 | 182 | 2144 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1984-08 - 1985-07 | 101 | 137 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Construction Year to 199012 Fitting Position Rear Axle | 1985-08 - 1991-09 | 121 | 165 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1988-02 - 1990-12 | 140 | 190 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1988-02 - 1990-12 | 147 | 200 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Construction Year to 199012 Fitting Position Rear Axle | 1986-11 - 1991-09 | 100 | 136 | 2309 | Saloon |
| AUDI 200 C3 Avant (447, 448) Construction Year to 199012 Fitting Position Rear Axle | 1985-08 - 1991-09 | 121 | 165 | 2226 | Estate |
| AUDI 200 C3 Avant (447, 448) Construction Year to 199012 Fitting Position Rear Axle | 1986-11 - 1991-09 | 100 | 136 | 2309 | Estate |
| AUDI QUATTRO (85) Fitting Position Rear Axle | 1980-07 - 1987-07 | 147 | 200 | 2144 | Coupe |
| AUDI QUATTRO (85) Fitting Position Rear Axle | 1987-08 - 1989-07 | 147 | 200 | 2226 | Coupe |
24.0110-0154.1

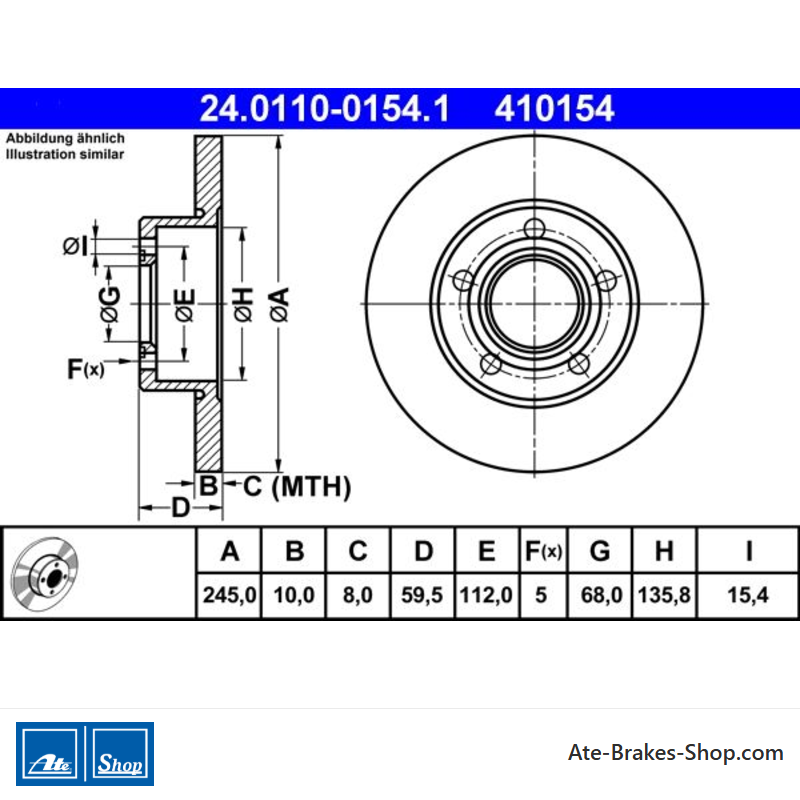

Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Audi
- Handelsnummer
- 410154
- Herkunftsland
- Italien
- Höhe
- 59,5
- Außendurchmesser [mm]
- 245,0
- Bremsscheibendicke [mm]
- 10,0
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 112,0
- Zentrierungsdurchmesser [mm]
- 68,0
- Innendurchmesser [mm]
- 135,8
- Bohrdurchmesser [mm]
- 15,4
- Mindestdicke [mm]
- 8,0
Spezifische Referenzen
- ean13
- 4006633080934
- Hersteller-Teilenummer (MPN)
- 2401100154101
ATE 24.0110-0154.1
(240110-01541)
- Außendurchmesser [mm]: 245,0
- Innendurchmesser [mm]: 135,8
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 410154
