ATE Disco de freno original de 2 piezas (24011001541) para Audi
72,60 €
(impuestos inc.)
60,00 € fiscales excl.
Número de parte:
ATE 24.0110-0154.1
(240110-01541)
- Diámetro exterior [mm]: 245,0
- Diámetro interior [mm]: 135,8
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 410154
Información logística:
- Código Ean: 4006633080934
- Peso: 7.40kg
Specification of ATE 24.0110-0154.1 / 240110-01541 / 24011001541:
| OE Number | Reference info |
| VAG 437 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 437615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 100 C3 Saloon (443, 444) Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1982-08 - 1984-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1982-08 - 1984-07 | 79 | 107 | 2144 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198712 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1984-08 - 1988-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198712 Fitting Position Rear Axle | 1986-08 - 1990-11 | 121 | 165 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-08 - 1990-11 | 121 | 165 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1990-01 - 1990-11 | 98 | 133 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-10 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198712 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1986-10 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-10 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1990-01 - 1990-11 | 88 | 120 | 2461 | Saloon |
| AUDI 100 C3 Avant (445, 446) Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1982-08 - 1984-07 | 100 | 136 | 2144 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198712 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198712 Fitting Position Rear Axle | 1986-08 - 1990-11 | 121 | 165 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-08 - 1990-11 | 121 | 165 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1990-03 - 1990-11 | 98 | 133 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198712 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Vehicle Equipment Line/Trim Level CS Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 1990-01 - 1990-11 | 88 | 120 | 2461 | Estate |
| AUDI 200 C2 Saloon (437, 438) Fitting Position Rear Axle | 1979-10 - 1982-09 | 100 | 136 | 2144 | Saloon |
| AUDI 200 C2 Saloon (437, 438) Fitting Position Rear Axle | 1979-10 - 1982-08 | 125 | 170 | 2144 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1983-08 - 1984-07 | 100 | 136 | 2144 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1983-08 - 1988-01 | 134 | 182 | 2144 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1984-08 - 1985-07 | 101 | 137 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Construction Year to 199012 Fitting Position Rear Axle | 1985-08 - 1991-09 | 121 | 165 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1988-02 - 1990-12 | 140 | 190 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1988-02 - 1990-12 | 147 | 200 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Construction Year to 199012 Fitting Position Rear Axle | 1986-11 - 1991-09 | 100 | 136 | 2309 | Saloon |
| AUDI 200 C3 Avant (447, 448) Construction Year to 199012 Fitting Position Rear Axle | 1985-08 - 1991-09 | 121 | 165 | 2226 | Estate |
| AUDI 200 C3 Avant (447, 448) Construction Year to 199012 Fitting Position Rear Axle | 1986-11 - 1991-09 | 100 | 136 | 2309 | Estate |
| AUDI QUATTRO (85) Fitting Position Rear Axle | 1980-07 - 1987-07 | 147 | 200 | 2144 | Coupe |
| AUDI QUATTRO (85) Fitting Position Rear Axle | 1987-08 - 1989-07 | 147 | 200 | 2226 | Coupe |

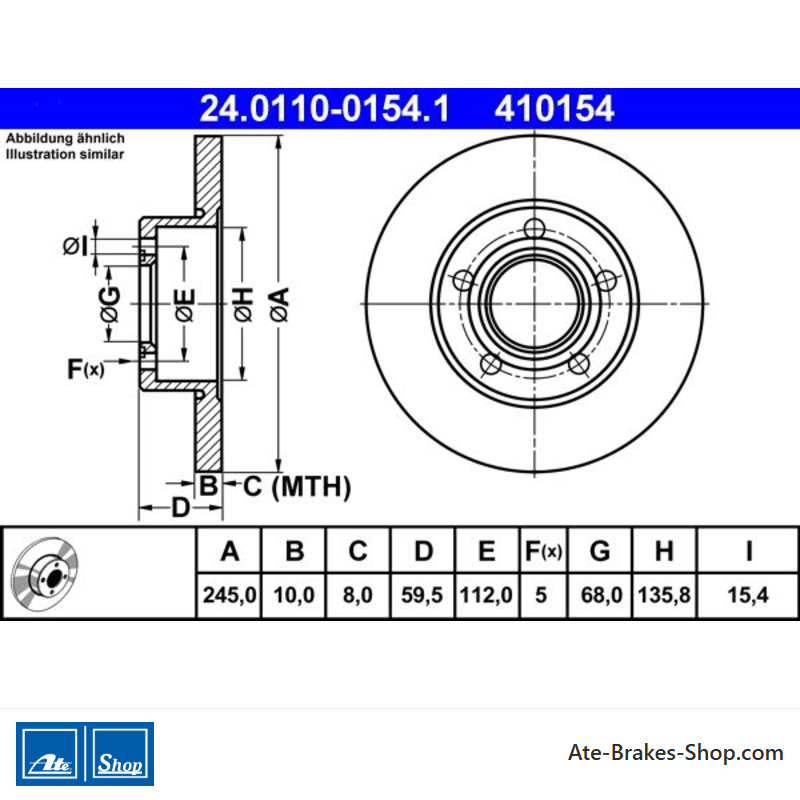

24.0110-0154.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Audi
- Número de Comercio
- 410154
- País de origen
- Italia
- Altura
- 59,5
- Diámetro exterior [mm]
- 245,0
- Grosor del disco de freno [mm]
- 10,0
- Tipo de disco de freno
- sólido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 112,0
- Diámetro de centrado [mm]
- 68,0
- Diámetro interior [mm]
- 135,8
- Diámetro del diámetro del diámetro [mm]
- 15,4
- Espesor mínimo [mm]
- 8,0
Referencias específicas
- ean13
- 4006633080934
- MPN
- 2401100154101
ATE 24.0110-0154.1
(240110-01541)
- Diámetro exterior [mm]: 245,0
- Diámetro interior [mm]: 135,8
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 410154
